Diamond R Equipment

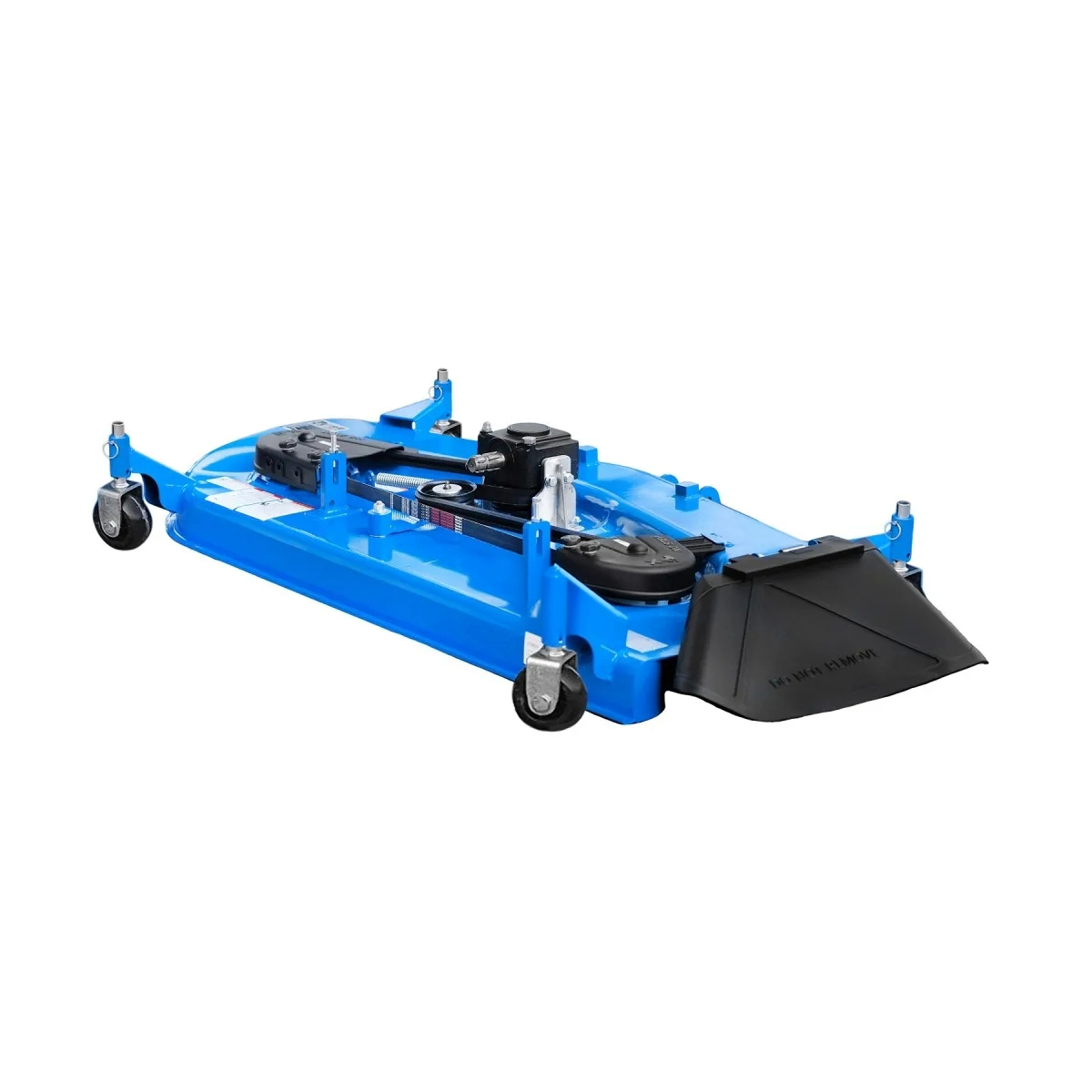

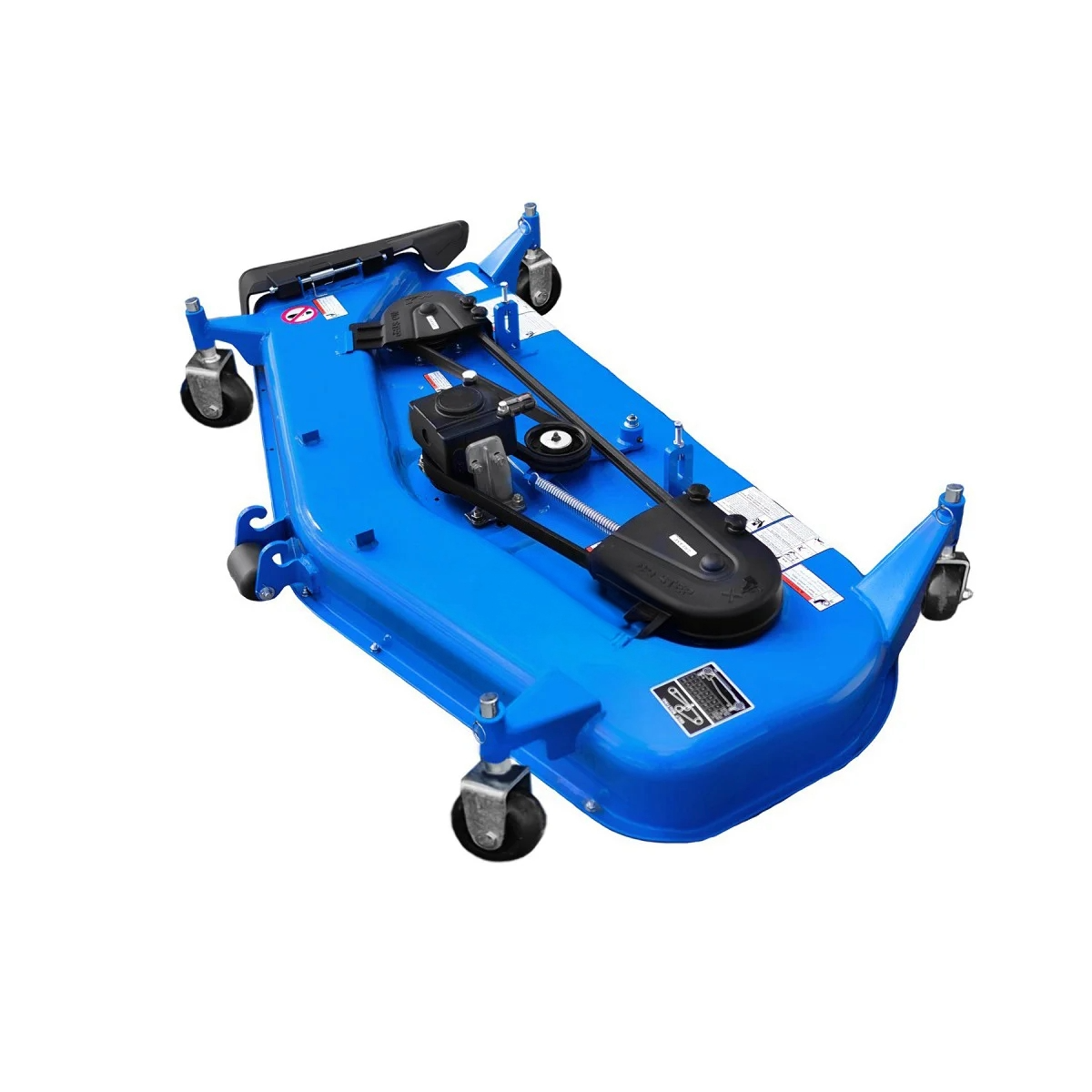

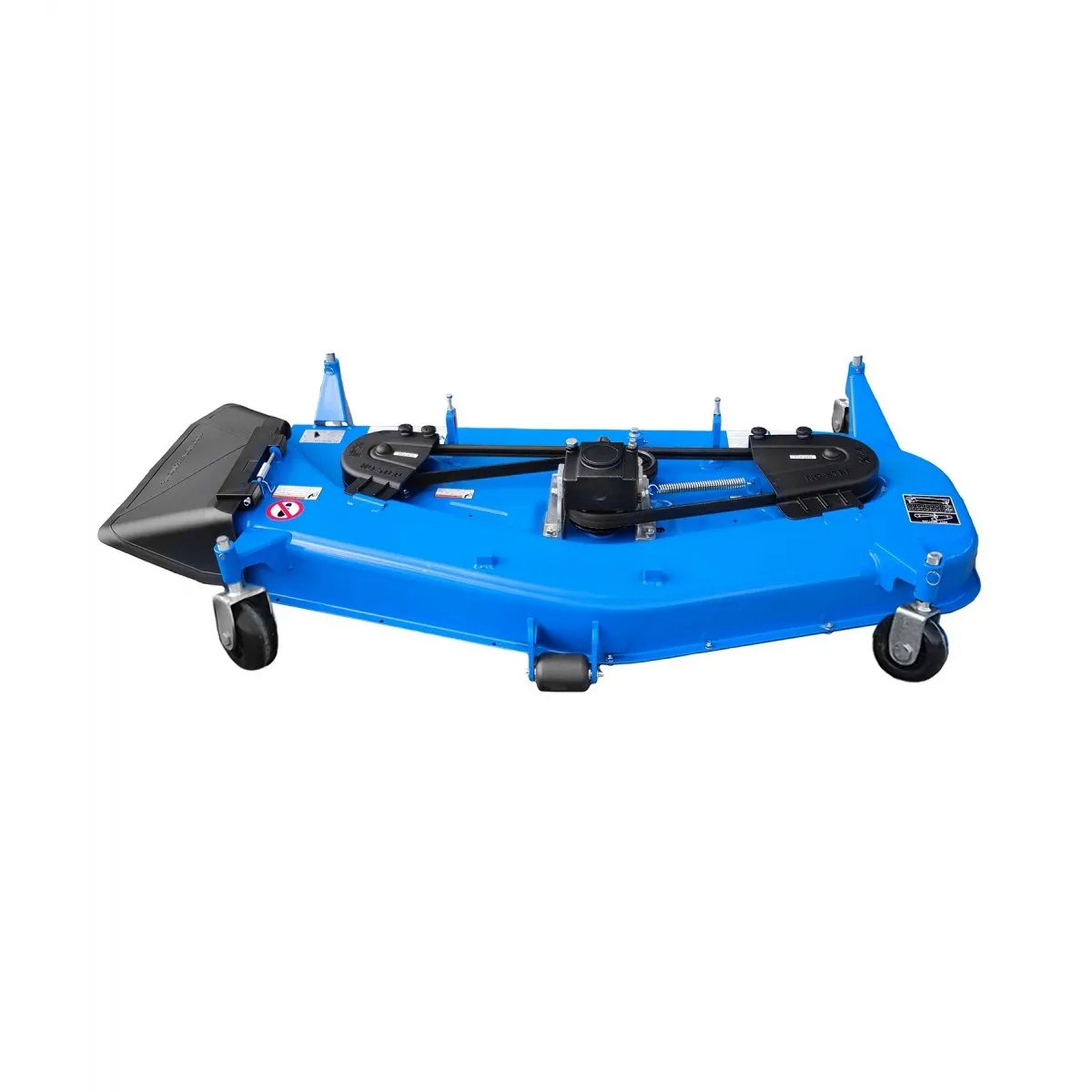

LS LM3560 Mount Mower

Product Description

Feature	Specification
Cutting Width	60 in (152 cm)
Overall Width	60–74 in (varies by dealer spec)
Cutting Height Range	1 – 4-1/8 in (2.5 – 10.4 cm)
Deck Shell Thickness	10-Gauge (0.1345 in) Grade-50 steel
Spindle Speed	~2,842 RPM at 2,000 engine RPM
Blade Tip Speed	~16,000 ft/min
Number of Blades	3
Blade Length	21 in
Blade Width	~2-1/2 in
Blade Thickness	~1/4 in
Shipping / Base Deck Weight	~372 lb (some dealer specs estimate ~450 lb with hardware)
Compatible Tractors	XJ Series compact tractors (and other LS models with mid-mount links)
Mount Type	3-Point link mount (tractor linkage mount)
Deck Design	Durable drive-over type for easy install & removal
