McCormick Tractors

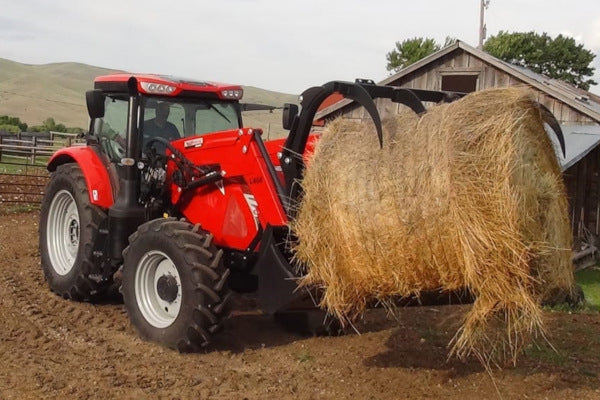

BETAPOWER Engines with Advanced SCR Technology All models of the X7 Series are powered by new BETAPOWER diesel engines that are EPA Tier 4 compliant.  Engines are equipped with turbocharging and intercooling, and common rail direct fuel injection that maximizes performance and develops massive torque to get work done.  To help meet the tough EPA emissions regulations, these BETAPOWER engines use advanced selective catalytic reduction (SCR) technology, an exhaust gas after-treatment technology that reduces harmful exhaust emissions without compromising the tractor’s performance. SCR technology utilizes diesel exhaust fluid (DEF) that is injected into the exhaust stream where it reacts with the hot exhaust gas to significantly reducing harmful NOx emissions.  SCR technology is simple, reliable, and allows the engine to run at its peak performance without compromise. Both models incorporate the PowerPlus feature where the engine can “boost” horsepower when certain operating conditions are met.  During heavy PTO operations, such as pulling a large baler or hay mower, or during high speed transport operations, the BETAPOWER engine will generate additional horsepower and greater torque levels to pull through tough spots and keep the machine working.       Power Shift and VT-Drive Continuously Variable Transmission (CVT) Options The VT-Drive is a continuously variable transmission (CVT) that is built by McCormick’s partner ZF, a world-renowned manufacturer of transmissions and drive systems.  The X7 Series with VT-Drive offers smooth, reliable performance in any application.  CVT combines the efficiency and reliability of a mechanical gearbox with the infinite speeds range of a hydrostatic drive.  The result is a tractor that can achieve any ground speed, from creeper to maximum transport speed, to match the needs of any job around the farm.  Smooth, seamless acceleration offers great comfort while working, and also provides constant power transfer to the ground during speed changes for improved traction and greater productivity. Along with exceptional performance, X7 VT-Drive tractors are simple to operate.  Three operating modes give the operator a choice in how he/she wants to drive the tractor:  Automatic Mode, Manual Mode, PTO Mode.  There is even a cruise control button to allow for greater control of the tractor with a simple push of a button. The real benefits of a CVT are found in its versatility.  The engine and transmission work together to find the right engine RPM and travel speed for the job at hand:  high RPM with low ground speed for draft or specialty applications, or high ground speed with low engine RPM for efficient transport operations. Hydraulics Built for Performance LOAD-SENSING HYDRAULIC SYSTEMThe X7 series tractors feature a closed-center load-sensing hydraulic system with a variable-displacement piston pump. This means that the pump always delivers the exact amount of oil that the system requires, instantly and on demand, thereby eliminating unnecessary power waste. The system supplies up to 32.5 gpm (123 l/min) to the hitch and remote valves. ELECTRONICALLY-OPERATED REAR HITCHWith the raise/lower control conveniently located on the Multi-Function Controller and the main settings integrated into the right-hand console, the rear hitch guarantees precise implement control. Offering a maximum lift capacity of up to 20,500 lbs, the Category 3 rear 3-point hitch is equipped with lower link draft sensing to handle precise tillage work with ease. REMOTE VALVES The X7 tractors can be fitted with up to six remote valves for controlling implements and attachments on premium configurations.  Simple controls make operation convenient and precise. An available mini joystick controls the front lift and front remote valve if equipped. All valves can be set to operate for specific flow rates and flow times to meet specific hydraulic tasks. Hydraulic power beyond is also built in for those implements that require a dedicated oil supply but have their own valve system. Tractor Model X7.650 Configurations Available Standard Standard/Premium Performance   Rated Engine HP @ 2200 RPM HP (kW) 146 (107) Max. Engine HP @ 1900 RPM HP (kW) 150 (110) Max. Engine Torque @ 1400 RPM lb ft (Nm) 631 (675) Torque Rise 41% Engine   Engine Type BETAPOWER diesel engine; Tier 4 using advanced Selective Catalytic Reduction (SCR) technology Engine Size 6.7 Liter, 6-cylinder Fuel / DEF Capacity gal (liter) 85 (320) / 12 (46) Drive Train   Transmission Type Standard & Premium: 'P6 Drive' 54 x 27 power shift and power shuttle; standard 8:1 creeper; 32 mph (50 kph) capable Gears and Ranges P6 Drive: 5 Ranges, 6 power-shift speeds Rear Axle Internal planetary final drives; wet disc brakes; flange with bar axle adapters Differential Lock Front and rear fully locking differentials; electronic control; hydraulic engagement 4wd Front Axle Push button engagement, center locking differential; outboard planetary final drives; 4-wheel braking; available suspension on Premium & VT Models Hydraulics, 3-point Hitch, PTO   Implement Hydraulic System Type/Max. Flow gpm (lpm) Closed Center PFC; variable displacement pump 32.5 (123), steering pump 11.6 (44) Rear Remote Valves Standard Model: 3 valves; Premium & VT-Drive: 3 standard, 6 optional Rear 3-point Hitch Type Category 3 / 3N (narrow); electronic control Rear 3-point Lift Capacity @ Hitch lb (kg) 14,000 (6300) on Standard models; 20,500 (9300) on Premium models Rear PTO 540 / 540E / 1000 / 1000E standard; electro-hydraulic engagement; rear fender controls Operator's Area   Cab Large 4-post structure; 2 doors; flat foot deck; high capacity HVAC; roof-line window; available suspension on Premium & VT Models Seat and Front Dash Deluxe air suspended seat; tilt and telescopic steering wheel; hide-away instructor's seat; front dash with user interface Wheelbase in (mm) 108 (2750) Height Over Cab with Standard Wheels in (mm) 115 (2920) Overall Length with Front Weights in (mm) 95 (2430) Base Weight without Ballast lb (kg) 15,013 (6810)

Read more less

Unknown Combining a McCormick tractor with a front loader means creating the ideal synergy for the machine and its work. Increased comfort and productivity must add up to an ergonomic design.   There are three key features that distinguish McCormick front loaders: Versatility: they are designed for use in various sectors such as agriculture and forestry, but also in municipalities, for maintenance of green spaces and snow ploughing. High performance (and comfort!): these loaders are characterized on the one hand by bucket self-leveling, which reduces operator fatigue, and on the other hand by higher loading capacity and height extension. The high quality paintwork withstands the weather and wear and tear in the field. Moreover, the loaders are combined with a wide range of implements. The standard equipment of the push-pull system or the Faster multi-coupling plate, combined with sides designed to distribute the weight over 3 points (front, center and rear), reduces wear on the front axle, thus spreading the load over the entire tractor. Mc range: light and simple McCormick’s entry-level range of front loaders, the Mc Range, combines an attractive price with versatility and ease of use and is built with a rectangular section frame made of HLE special steel.

Read more less

Description MCCORMICK FRONT END LOADER — L68High Performance Front Loaders Each X7 tractor can be equipped with a front loader to improve overall versatility. All McCormick loaders are built by Alo, a global leader in the design and manufacture of front loaders. Customers can choose between self-leveling and non-self-leveling designs to match individual needs. Each loader can be quickly removed and installed without tools to improve the tractor’s versatility. Alo’s popular “Euro-type” quick attachment system for loader tools lets the operator quickly and easily change between loader buckets and tools.Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are subject to change without prior notice. Specifications General Year - 2024 Manufacturer - MCCORMICK Model - L68 Condition - New Technical Data Model - L68 Loader Type - Self Leveling Max. Lift Height to Pivot Point - 167 in (4250 mm) Lift Capacity to Max. Height 31.5" (800 mm) Fwd of Pivot - 5,450 lb (2470 kg) Breakout Force from Ground Level 31.5" (800 mm) Fwd of Pivot - 10,010 lb (4540 kg) Max. Lift Height Under Level Bucket - 155 in (3950 mm) Compatible Tractor Models - X7.650 / X7.660 / X7.670 / X7.690

Read more less

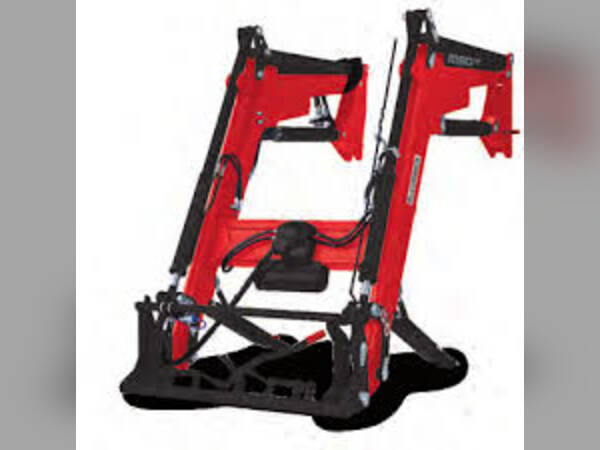

The McCormick L41 front-end loader has a lift capacity of 5,070 lbs., a lift height of 159 in. and a bucket width of 84 in. It has a one-piece frame made of Domex special steel. Features Design: Slim boom profile with integrated hoses and suspension system Construction: Sturdy construction and durability Performance: Cutting-edge design to ensure world-class performance Front-end loaders Front-end loaders, also known as wheel loaders or bucket loaders, are designed to move solid materials. They are generally more efficient and faster at moving large volumes of materials than skid-steers or tractors with bucket attachments. McCormick front-end loaders McCormick front-end loaders feature top-grade steel frames and cutting-edge design to ensure world-class performance.

Read more less

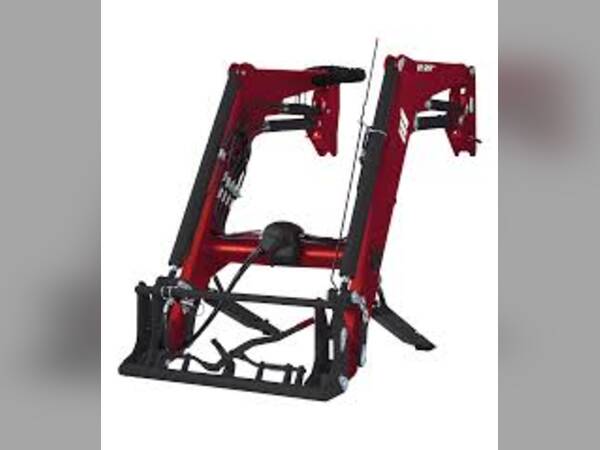

The McCormick L31 is a front-end loader that can be attached to a McCormick tractor. It's designed to help with transport, maintenance, and handling. Features  Lift height: 139 in (3550 mm) at pivot pin Lift capacity: 2,760 lb (1250 kg) at max height Breakout force: 5,360 lb (2430 kg) at 31.5 in (800 mm) forward of pivot Uses Moving loose materials like dirt, sand, or gravel Transporting materials Maintenance applications Implement options   Light-material buckets Earth buckets Multi-material buckets Manure forks Round bale forks Pallet forks Design Brackets distribute weight across the front, middle, and rear of the loader This design reduces wear and tear on the front axle

Read more less

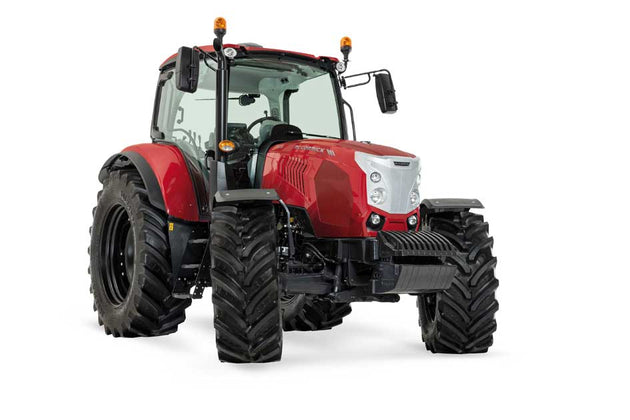

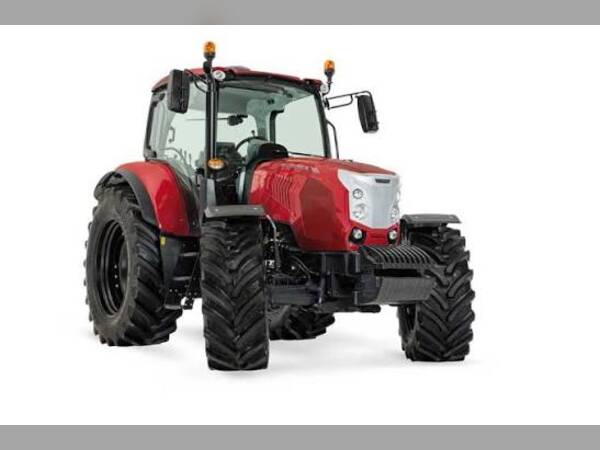

X6.135 X6 SERIES — MCCORMICK MEET YOUR NEW FARMHAND Each McCormick tractor reflects the passion and dedication of those involved in designing, testing and producing this incredible line-up of tractors. The X6 Series tractors make a statement with power, versatility, and efficiency. Built to be an economical, reliable “workhorse” around the farm, the X6 Series offers a simple solution to those needing a strong, dependable tractor. This model combines powerful performance with basic features and modern styling. Boasting a powerful FPT F36 engine, the X6 generates a high sustained torque that keeps the wheels turning and gets work done. X6 X6.135 ENGINERated power (97/68/EC - ISO TR 14396) hp 127Max power (97/68/EC - ISO TR 14396) hp 127Rated engine speed rpm 2200Engine speed at max power rpm 1900Max torque at 1300 rpm Nm 518Torque backup 36% 30%Manufacturer - Engine type FPT - F36Stage V / Tier 4 Final exhaust after-treatment system DOC + DPF + SCRCylinders / Displacement / Valves 4 / 3.6 l / 16VAir filter system dry air cleanerAir intake system turbo aftercooledFuel injection system electronically-controlled high pressure common railMaintenance 500 hours maintenance intervalCooling system matrix radiator packageCooling fan • belt-driven fan - o viscous fanEngine Memo Switch•CAPACITIESFuel tank 170AdBlue / DEF tank 23Cooling system 10TRANSMISSIONType • electrohydraulicNo. of gears - std • 36 FWD +12 REV with XtraShift HML & RPSNo. of gears - with creeper o 48 FWD +16 REV with XtraShift HML & RPSMinimum speed km/h 1.5 without creeper - 0.3 with creeper (IR 750mm)Engine speed at 40 km/h rpm • 1893Engine speed at 50 km/h rpm o 2200Transmission control hand leverForward/Reverse shuttle • Reverse Power Shuttle (RPS) with modulation controlREAR PTOType • electrohydraulicSpeeds • 540 / 540E / 1000 / 1000E with HMLGround speed PTOoEngine speeds at rated PTO speeds rpm 1944 / 1580 / 1952 / 1586Rotation - spline shaft type clockwise (viewed from tractor rear) - • 1-3/8" PTO shaft with 6 splines - o 1-3/8" PTO shaft with 21 splinesFRONT AND REAR AXLESFront rigid axle • wide with brakes - o narrow with brakesFront suspended axleTraction type 4WDFront differential lock Hydralock full locking differentialRear differential lock • electrohydraulicRear axle - flanged typeBRAKING SYSTEMFront braking system • automatic 4WD engagement when braking - o with front brakesRear braking system ring piston hydraulic brakeTrailer braking system • Dual-line hydraulic brake as per MR - o single-line hydraulic brake or CUNA - o dual-line pneumatic brake*Park LockHYDRAULIC SYSTEMHydraulic piston pump with CCLS system for hitch & remotes + steering - flow rate l/min • 110 + 38Rear remote valves - type, number, flow rate • mechanical, up to 3 - o mechanical up to 3 + electronic 2Flow divider / Flow selectorFree-flow return•Mid-mounted remote valves - type, number, flow rate l/min 2 mechanical with multifunction joystick - 80 Wheelbase mm 2420Max height over cab without beacon lights mm 2623 - measured with tyres 380/70R24 - 480/70R34Max height from top of cab to rear axle centre mm 1935Max length with front weights - Track width mm (4256-4552) - measured with tyres 380/70R24 - 480/70R34Steering radius mm 4400 measured with tyres 480/65R24 - 540/65R38Shipping weight - measured with average specs kg 4800Gross vehicle weight kg 8500 (wide front axle) - 8000 (narrow front axle)Max front and rear tyres sizes - (Index Radius -IR) mm 480/65R24 - 540/65R38 (IR 800mm)Front weight support / Front tow pin

Read more less

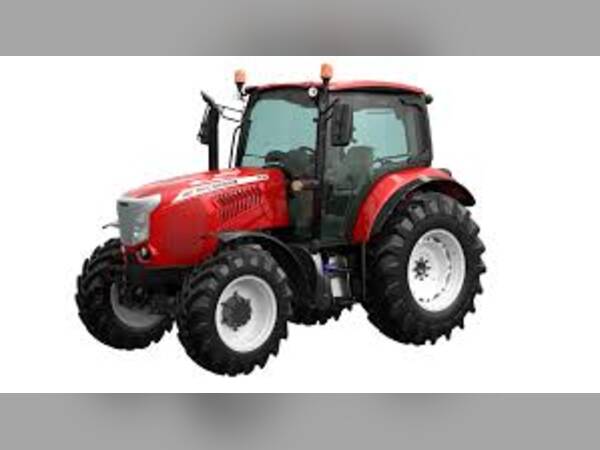

Building on its extensive experience in technology innovation, McCormick has developed the next-generation X5 series, a new range of utility tractors that will surprise farmers with performance, versatility and comfort comparable to higher-class models. The new McCormick X5 is a truly versatile utility tractor. Ideal for open-field tasks like plowing, tilling and harrowing, this handy tractor is equally perfect for sowing and hay-making as well as for livestock farming and transport applications. Designed to handle a wide variety of tasks with maximum efficiency, the X5 tractor also offers superior automotive-style comfort. Tractor Model X5.120PerformanceMax. ISO Engine HP @ 2000 RPM HP 114Max. ISO PTO HP @ 2000 RPM* HP 97Max. Engine Torque @ 1400 RPM lb ft 460EngineEngine Type FPT F36 engine Tier 5, TACR, DOC + SCRoF, 3.6L, 4-cyl 16vEngine Size 3.6 Liter, 4-cylinderFuel Capacity gal (liter) 35.6 (135)Drive TrainTransmission Type Transmission (12 x 12) with 4 gears and 3 ranges - 40km/hOptional Transmission Transmission (32 x 32) with hydraulic power shuttle, 2-speed power-shiftDifferential Lock Front: Hydralock full locking differential; Rear: Electrohydraulic4wd Front Axle 4WD Hydralock front axle with integrated brakesTire type Radial tires standardHydraulics, 3-point Hitch, PTOHydraulic System/Max. Flow Open center with tandem hydraulic pumpsHydraulic Flow Rate gpm (lpm) 62 (32)Rear Remote Valves 2 Rear spool valves S/D actingRear 3-point Hitch Type 3-point linkage, Cat. 2, telescopic ball ends, pin-type telescopic stabilizers. Lift capcacity 9,920 lb (4,500 kg)Rear 3-point Lift Capacity @ Hitch lb (kg) 9,920 (4,500)Rear PTO 540/1000 rpm PTO - Hydraulic engagement, controls on rear fenderOperator’s AreaOperator’s Area Cab or 2-post folding ROPSSeat and Front Dash ROPS: Adjustable vinyl seat, mechanical suspension; tilt steering wheelCab: Cloth seat, air suspension; tilt and telescopic steering wheelWheelbase in (mm) 92.7 (2,355)Height Over ROPS in Raised Position in (mm) 103 (2,622)Height Over Cab in (mm) 103.26 (2,623)Overall Length without Front Weights in (mm) 9,832.61 (4,460)Base Weight without Ballast lb (kg) 15,432.36 (7,000)

Read more less

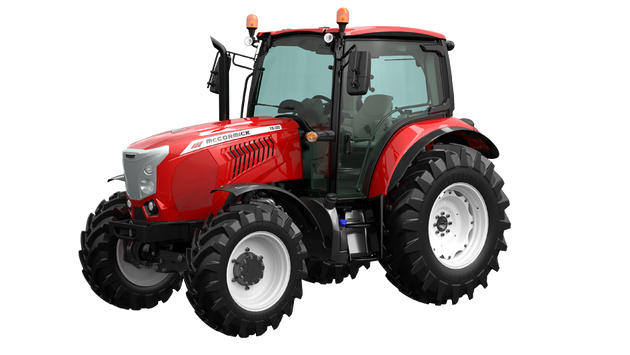

The McCormick X5.100 Efficient is a 4 wheel drive tractor manufactured by McCormick since 2021. It has a weight of 4.1 tons and is powered by an engine with a power output of 70 kW. The tractor can travel at a speed of 40 km/h and has a transport height of 2.623 meters. It is equipped with a cabin as special equipment. Tractor Model X5.100 X5.110 X5.120PerformanceMax. ISO Engine HP @ 2000 RPM HP  95.2Max. ISO PTO HP @ 2000 RPM* HP 80Max. Engine Torque @ 1400 RPM lb ft 395EngineEngine Type FPT F36 engine Tier 5, TACR, DOC + SCRoF, 3.6L, 4-cyl 16vEngine Size 3.6 Liter, 4-cylinderFuel Capacity gal (35.6 Drive TrainTransmission Type Transmission (12 x 12) with 4 gears and 3 ranges - 40km/hOptional Transmission Transmission (32 x 32) with hydraulic power shuttle, 2-speed power-shiftDifferential Lock Front: Hydralock full locking differential; Rear: Electrohydraulic4wd Front Axle 4WD Hydralock front axle with integrated brakesTire type Radial tires standardHydraulics, 3-point Hitch, PTOHydraulic System/Max. Flow Open center with tandem hydraulic pumpsHydraulic Flow Rate gpm (lpm) 62 (32)Rear Remote Valves 2 Rear spool valves S/D actingRear 3-point Hitch Type 3-point linkage, Cat. 2, telescopic ball ends, pin-type telescopic stabilizers. Lift capcacity 9,920 lb (4,500 kg)Rear 3-point Lift Capacity @ Hitch lb (kg) 9,920 (4,500)Rear PTO 540/1000 rpm PTO - Hydraulic engagement, controls on rear fenderOperator’s AreaOperator’s Area Cab or 2-post folding ROPSSeat and Front Dash ROPS: Adjustable vinyl seat, mechanical suspension; tilt steering wheelCab: Cloth seat, air suspension; tilt and telescopic steering wheelWheelbase in (mm) 92.7 (2,355)Height Over ROPS in Raised Position in (mm) 103 (2,622)Height Over Cab in (mm) 103.26 (2,623)Overall Length without Front Weights in (mm) 9,832.61 (4,460)Base Weight without Ballast lb (kg) 15,432.36 (7,000)

Read more less

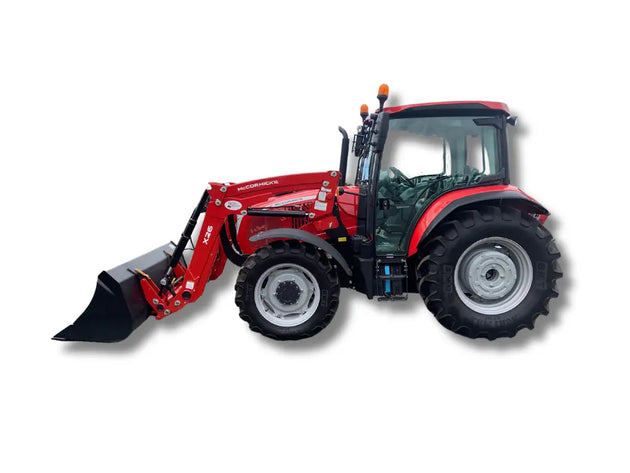

McCORMICK X4: YOUR DO-IT-ALL COMPANION McCormick never ceases to amaze. Relying on its ability to develop simple, convenient and innovative technology solutions, McCormick has built the new X4 series, a range of light utility tractors designed with simplicity, efficiency and versatility in mind. Available in both cab and ROPS versions, the X4 is ideally suited to meet the needs of farmers that require a low cost, all-round tractor. Perfect for wide row vineyards and orchards, the X4 is equally at home plowing tilling and harrowing small plots of land as well as sowing and hay making. Its excellent all-round visibility ensures safe loader work and its com-pact size allows for optimum maneuverability inside barns and sheds, while its stability will ensure safe operation on sloping terrain and during road transport. All these features turn the X4 tractor into a true champion of productivity. The new X4 sports a modern, cutting-edge design whose strongest point is the Total View Slim cab. Completely redesigned according to automotive industry standards, the new cab offers a variety of convenience features designed to maximize the operator’s comfort. The key features of the new cab include a low-profile roof with a transparent hatch for extra visibility during loader operations, a flat-deck platform, an efficient climate control system and ergonomically-arranged controls. The new X4 offers a choice of two transmissions: a 24/24 Speed Four transmission with synchro shuttle and mechanical Hi-Lo and a 12/12 Power Four transmission with power shuttle. The range comprises three models delivering 61 hp, 68 hp and 75 hp. Features may include: Specially-built transmission Four-wheel drive front axle with limited slip differential Wheelbase of 2110 mm Mechanically-operated rear hitch with 3000 kg lift capacity Open-center hydraulic system with 52 + 30 l/min flow rate Urea-free exhaust after-treatment for greater simplicity and lower operating costs. When you choose a McCormick X4, you are choosing a trusted companion that will deliver reliability, efficiency and productivity. Because the name McCormick stands for smart technology.
