Mahindra Tractors

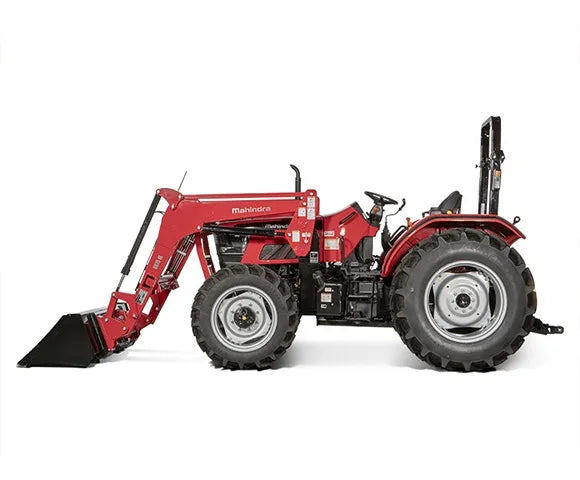

Description Mahindra 6065 PST Tractor / Loader 62 HP 3-cylinder engine with a turbocharger and intercooler Power Shuttle Transmission 15F / 15R Full Synchro Mesh Speed and Constant Mesh Range CAT 1 & 2 HITCH – 3-point hitch lift capacity of 5,950# 4 WD 6075 4L Front End Loader (Skid Steer)  Loader lift capacity: 3609# HEAVY-DUTY, HEAVY-WEIGHT The  Mahindra 6065 PST with its loader weighs more than 8,000# and is optimally counterbalanced. As a result, it can safely lift up to 3,609# using the front loader and 5,950# using the rear 3-point hitch. IDEAL USES Brush Cutting large tracts Forestry Management including fire breaks Road & Ditch maintenance Hay Farming Livestock Care & Feeding Municipality Maintenance Professional Landscaping including clearing and contouring land Row Crops including cultivating & harvesting Snow Removal for parking lots & roads THIS ONE IS ALL BUSINESS! We are not playing. This Mahindra 6000 series 4WD utility tractor, with its impressive 62 hp powertrain and more than 3 tons of iron, is the job foreman in our lineup. We’ve eliminated the Diesel Particulate Filter and regeneration, which would interrupt your work. It comes with a loader that hoists nearly 2 tons at 11 feet high, and a 3-point hitch that manhandles 3-ton implements.   ADVANCED ENGINE TECHNOLOGY Mahindra’s state-of-the-art, mCRD (common rail diesel) engine results from a $30 million engineering investment. Our eco-friendly, fuel-injected powertrain guarantees: Better engine performance No Diesel Particulate Filter High-power output; Low RPMs Superior PTO horsepower Reduced fuel consumption Strong warranty 0% REGEN. 100% PRODUCTIVITY Mahindra’s MCRD engine removes a Diesel Particulate Filter (DPF). That means… No regeneration downtime No wasted warranty hours Fewer parts to replace No wasted fuel No high heat Quieter operation THE ADVANTAGES LEAN & MEAN ENGINE: The Mahindra 6065 features a 3-cylinder, 62 hp, mCRD™ (common rail diesel) engine with a turbocharger and intercooler. Its Tier 4-compliant engine eliminates the diesel particulate filter (DPF), diesel exhaust fluid (DEF), and regeneration to keep your Mahindra working. UNEQUALED LIFT CAPACITY: Get even more done in less time with a n all-new factory installed loader and 3-point hitch. You’ll also have more choices in attachments and CAT 1 and 2 implements. BUILT STRONG: The 6000 4WD utility tractor comes with large, heavy tires, more than three tons of weight, and long wheelbase for superior performance, durability, and stability. GETTING DOWN TO BUSINESS With over 3 tons of iron, built-in CAT1 and CAT2 connectors for attaching to dozens of implements, and a 3-point hitch lift capacity of 5,950 pounds*, this producer hustles until quitting time. STRONG PTO Among the three market leaders, we offer the strongest power take-off (PTO) solution. Our engine can transfer an impressive 53.5 hp to the PTO. Additionally, we have included a low-noise “E” economy mode, which helps save fuel. VERSATILE CAT 1 & 2 HITCH Connect to dozens of implements using our flexible ball-pivot. It rotates within its housing to CAT 1 (5A) or CAT 2 (5B) positions. Moreover, our 3-point hitch also comes with telescopic stabilizers and flex links for superfast, single operator connections. CLEVIS HITCH Our clevis hitch comes standard on every 6000 Series tractor and is great for pulling attachments like trailers, finish mowers and spreaders. For added safety, the rear hitch has a spring-loaded locking pin in addition to the lower ring pin. LOADER 6075 4L Maximum Lift Height (in / cm) 133 / 338 Digging depth (in / cm) 5.5 / 14.0 Lifting capacity full height at pivot pin (lb / kg) 3609 / 1637 Breakout force (lb / kg) 5000 / 2268 Shipping weight (lb / kg) 1880 / 853 LOADER FEATURES Skid Steer tool carrier system for ultra-fast attachments hookup Single loader valve with dual spools to perform simultaneous loader functions Upgrade with optional 3rd function valve for a grapple or an auger Precision linkage fittings for attachments Mechanical self-leveler **The Mahindra 6065 PST is available in Backhoe version as well Backhoe 65B Specs Maximum Digging Depth (in / cm) 112 / 284 Digging Depth 2ft Flat Bottom (in / cm) 110 / 279 Digging Force-Bucket (lb / kg) 3895 / 1767 Digging Force-Dipper (lb / kg) 2358 / 1070 Shipping Weight (lb / kg) 1100 / 499 Backhoe Features Dig depth of 9’-4” 18-inch bucket standard Optional mechanical thumb Easy installation & removal Intuitive controls Spacious, comfortable station Protected grease points for long life

Read more less

Description Introducing the Mahindra 5155 Tractor Loader A tractor easily operated by a first-time user but built heavy-duty to tackle the harshest environments. It’s ideal for customers who demand comfort, performance, and versatility at a great value. Ultimately, this commercial-grade utility tractor should be in a class all by itself. Typically, engineers organize tractor operator stations. We chose a different path. We gleaned our ideas from actual users — our customers — to reimagine the Mahindra 5100 Series interior comfort for superior usability and efficiency. EASY ENTRY We added a two-step ladder for smaller operators. And we cleared the floor path so getting in and out of the tractor is a cinch. NEAR-FLAT PLATFORM We engineered our operator platform with the lowest hump possible. Our near-flat floor reduces the tripping hazard and provides maximum real estate for your feet when seated. Our tractor comes with an anti-slip rubber floor mat —standard — too. mCOMFORT SEAT First We didn’t skimp by using a lawnmower seat. Nor did we ignore details like tractor vibration. Instead, we created the industry’s most innovative chair ever, including contoured lower and upper seat cushions, integrated armrests, and forward and backward adjustable legroom. Plus, it comes with a soft-coil suspension to help prevent fatigue on those long days and a retractable seatbelt for added safety. SIDE IGNITION Tractor operators are prone to knee-bumping their keys on front-facing ignitions. We addressed the problem with a simple solution, moving ours to the side. SUPERIOR DRINK HOLDER Our bolted-down drink holder is made to accommodate most cup sizes with a well that’s deep enough to prevent your beverage from spilling. It’s conveniently positioned beside and slightly in front of the driver, unobstructed by the operator controls, too. FLAT TOP FENDERS Narrow or rounded fenders are thoughtless. Our fenders are wide to eliminate mud sling and flat to add storage space for useful items like a toolbox, chain saw, and a radio. WE WORK WHILE OTHERS TAKE BREAKS. The Mahindra 5100 Series 4-wheel tractors keep performing until you decide to call it a day. Every day. Mahindra tractors don’t take regen-downtime. The 3-point PTO comes standard with CAT 1 and CAT 2 connectors and can run in 540 and 540E modes. Loaders have quick-connect attachments. Simply, we offer the only one-size-fits-all tractor built not to take breaks. BEST-ALL-AROUND UPTIME Ever hopped onto a tractor to take care of a job, only to have your tractor kick into “regen mode”? That stalls production between 15 – 45 minutes (depending on the brand) and equates to hours of lost productivity year-over-year. Not to mention you’ll get burned on regen parts replacement, lost warranty hours, and needless fuel consumption. Our mCRD engine is advanced, eliminating the need for a diesel particulate filter (DPF), so you’ll significantly reduce the cost of ownership and improve productivity. Performance I – MAHINDRA 5100 SERIES is HEAVY-DUTY and HEAVY-WEIGHT Our base model, with agriculture or industrial tires, is rock-solid at 5390#,  Attach a front loader and this 6,690# 4WD tractor becomes an unstoppable beast. CONNECT MORE IMPLEMENTS Our high-powered Category 1 & 2 PTO increases access to dozens of 3-point, CAT 1 & CAT 2 implements. ADVANCED ENGINE TECHNOLOGY Mahindra’s state-of-the-art, Common Rail Diesel (CRD) engine results from a $30 million engineering investment. Our eco-friendly, 4-cylinder, fuel-injected powertrain guarantees: Efficient engine performance High power output at low RPMs Superior PTO horsepower Reduced fuel consumption Strong warranty No Regen Downtime The engine removes the need for a Diesel Particulate Filter (DPF) Therefore, you experience: Fewer parts to replace Quieter operation No squandered warranty hours No wasted fuel BEST-ALL-AROUND STANDARD TRANSMISSION Our synchromesh transmission comes standard with 12 forward and 12 reverse gears. It allows the operator to select more speeds, making it hands down the best-all-around tractor for fast, front loader work. BEST-ALL-AROUND PTO Our engine technology provides superior PTO horsepower when compared to Deere® or Kubota®. What’s more, we include “E” economy mode standard to help you save on fuel. Bottom line, we offer the best-all-around PTO solution among market leaders. QUICK-CONNECT LOADER ATTACHMENTS It takes only a few seconds to attach a Mahindra bucket, blade, forks, or bale spears with our skid-steer like connections. GO-ANYWHERE 4WD The Mahindra 5100 Series 4-wheel-drive tractors quickly plow through snow, mud, and flooded fields. Heavy front axles boost stability, making loader work safer and faster. They add counterweight when using 3-point implements, too. A HEAVY-LIFTING JACK OF ALL TRADES. We envisioned the Mahindra 5100 Series to be versatile. Both come with front & rear hydraulics, built-in CAT 1 and CAT2 connectors for attaching to dozens of 3-point implements, and have front and rear clevis hitches for pushing or pulling attachments. You can easily add an optional rear backhoe and front end loader, too. They excel in the harshest environments and are ideal for: Ag Farmers Ground Maintenance Hobby Farmers Hunt Clubs Land Owners Landscapers Livestock Farmers Municipalities Nurseries Orchards Ranchers VERSATILE 3-POINT HITCH You’ll be able to connect to dozens of implements and take on any task with our ball-pivot CAT I & CAT II connectors with telescopic stabilizers & flex links. HYDRAULICS The 5100 Series comes with one remote valve for powering your attachments. Add an optional second rear valve for complex attachments like a backhoe. CLEVIS HITCHES Our clevis hitches are great for pulling or pulling attachments like trailers, spreaders, and finish mowers. For added safety, the rear hitch has a redundant spring-loaded locking pin in addition to the lower ring pin. We also offer an optional front mounted hitch, which is uncommon for a tractor this size. OPTIONAL QUICK-CONNECT LOADER Whether you’re stacking hay, dumping gravel, or digging a watering hole, our loader delivers leading lift height, and best-in-class dig depth.   FRONT LOADER SPECIFICATIONS Model No. 5155-4L Max Lift height 122″ Digging depth 8.7″ Full Height Lift capacity: 3100# Breakout force: 5200# IMPLEMENT YOUR PLAN WITH MAHINDRA The Mahindra 5100 Series tractor gives you access to dozens of implements, thanks to its beefy 4WD powertrain, capable PTO power in both 540 standard and 540-economy modes, and CAT1 & CAT 2 connectors. This is a one-tractor-fits-all. See our implement brochures for a more extensive lineup of Mahindra 5100 Series attachments GET MORE WITH MAHINDRA You get so much more with a Mahindra. Not just the things you immediately recognize, but the things you can easily overlook. Like a leading warranty. A best-in-class engine that eliminates downtime. The best overall transmission for loader work. The best all-around PTO for connecting dozens of CAT1 and CAT2 implements. Front and rear hitches for pulling and pushing attachments. The most comfortable operator station. And great safety features that protect you and your investment. SAFETY We put a lot of value in tractor safety. A few examples, all made standard, include: Retractable seat belt, Headlights and taillights Ladder with climbing grab rail Roll-over Protective Structure (ROPS) Metal hood to protect the engine Ground-level fuel tank 4-wheel brakes. OPTIONAL CANOPY TOP Our reinforced canopy top easily connects to the ROPS. It protects the operator from rain, snow, and falling front loader debris. OPTIONAL WORK LIGHTS Adjustable work lights improve visibility when using implements in low light or dark-thirty. FRONT BUMPER LEVER For hood clearance and quick access to the engine, we added a pull to hinge the bumper forward. EASY MAINTENANCE We provide easy engine access for self-servicing. Like a truck, pull a spring-loaded pin to unlatch the hood and a tether to close it. METAL HOOD While many competitors use plastic hoods, we chose to make ours from metal to better protect the engine. FUEL TANK LOCATION Refilling a fuel tank high atop the engine is time consuming, back-breaking, and can lead to spills. We solved all these issues by lowering ours to a comfortable refill height, near ground level protected by the tractor’s frame. Mahindra 5155 Specs: 4 Wheel Drive Diesel Engine. Four-Stroke, Turbo Charged, Direct Injection, Water Cooled Engine HP (kw) @ RPM: 55 @ 2300 Number of Cylinders: 4 Bore/Stroke (in): 3.78/4.8 Fuel Tank Size: (gal/L): 17.1 Ga / 64.7 L Transmission: Full Synchromesh with forward/reverse sychro shuttle & constant mesh range Number of Speeds: 12 F/12R Clutch: Dual Dry with Cerametallic Lining Brakes: Fully-enclosed, 7 inch Diameter, Dry Disc PTO: Independent 47 HP, PTO RPM @ Engine RPM 540 @ 2300 Hydraulics: Open Center with position and draft control; Adjustable lower links with stabilizer Total Pump Output, Main (gallons per minute) 8.71 3-Pt Hitch: CAT 1 & 2 w/Telescopic Stabilizers & Flex Links Lift Capacity 3748# Battery: 12-volt; 925 CCA Alternator: 12 volt, 55 amp Dimensions: *Some measurements will vary depending upon tire choice Length: 136.6″ Width 74.8″ Height 60.6″ Wheelbase 77.9″ Minimum  ground Clearance 15.2″ Turning Radius 10.8″ Tractor Weight 5390# Tractor Weight Including Loader: 6690#

Read more less

One of the most popular tractors is the Mahindra 4540 utility tractor. This model features a Mahindra mCRD engine, which is a 4-cylinder, direct-injection water-cooled that has no diesel particulate filter giving you less complexity and means no operator involvement and cleaner exhaust emissions at a lower cost. It's available in 2WD and 4WD. The engine cracks out 41 (hp) horsepower at 2300 rpm.  The transmission is the same across the model range and positioned on the transmission hump between the operator's feet. Each lever, hardware, and the pedal is designed to be heavy-duty, unlike some competitors models. On the right side of the floorboard you'll find a ratchet lock parking brake lever, right heel differential lock, foot throttle (there is a hand throttle as well), and split brake pedals. On the left side, you'll find the clutch pedal and a pull up/push down 2WD/4WD lever. It's all outlined by rubber anti-slip mats. The loader of the Mahindra 4540 offers a quick attach skid steer loader couplers and are standard on all 4500 series tractors. This allows for ultra-fast front implement attachment.  One of the most well known features is the mComfort Mechanical Suspension Seat. It's designed for maximum comfort and convenience. The mComfort seats come equipped with a retractable seat belt, armrest, and rainwater drain as standard.  The rear of the Mahindra 4540 features a live PTO and three-point hitch. Mahindra offers a wide range of implements and accessories, including rotary mowers, blades, and rakes. You can also get post hole diggers, box blades, rotary brooms, snow blowers, and so much more. Some even feature a backhoe! ENGINE:Type: Four strokes, Indirect injection, water-cooledEngine HP [kW] @ RPM: 70 (52) @ 2300Displacement (in3): 161.6Number of Cylinders: 3Firing Order: 1-3-2Bore & Stroke (in): 3.78 X 4.8Compression Ratio: 17.2:1Low Idle RPM: 850 ± 50High Idle RPM: 2500 ± 50Injection Pump: BOSCH PFR TYPEMuffler: Horizontal External typeAir Cleaner: Dual DryFuel: DieselFuel Tank gal (L): 18.5 (70)POWER TAKE OFF:Type: IndependentPTO Operation: Clockwise from rear of tractorRear PTO RPM: 540 @ 2300PTO HP [kW]: 53.8 (40.1)DASH INSTRUMENTS:Tachometer & Hour MeterFuel GaugeTemperature GaugeIndicators for Warning Messages4WD Engaged LampPark Brake IndicatorSAFETY EQUIPMENT:Foldable ROPS w/ Retractable Seat BeltSafety Start SwitchesTurn Signals/ Hazard LightsMechanical Wet Disc BrakesElectric Key Shut OffParking Brake Indicator on DashWater Temperature GaugeHorn DRIVE TRAIN:Transmission: Power ShuttleNumber of Speeds: 12F / 12RClutch: Dry Single PlateBrakes: Wet Disc Brake, MechanicalHYDRAULICS:Type: Open Center with position and draft control, Telescopic Stabilizers, & Flex LinksSteering Pump Output gpm (L/min): 4.9 (18.5)Implement Pump Output gpm (L/min): 11.8 (44.7)Maximum Total Flow gpm (L/min): 16.7 (63.2)3-Point Hitch: CAT IILift Capacity lb (kg): 3528 (1600)Standard Rear Valve Fitment: 1 Spool (Std)Optional Fitments: 2 SpoolsWorking Pressure (psi): 214 Kgf/㎠Features: 2 Spool ValvesOPERATOR STATION:7 Pin SocketWide Platform StepsColor Coded ControlsRadio IncludedExterior MirrorsCup Holders2 Tool TraysRoof VentDome Light2 F/ R Work lightsHVACmComfort Seat w/ adjustable Mechanical SuspensionFRONT AXLE:Power Steering, Tilt ableCenter Pivot, Reverse Eliot TypeLevel Gears for Wider Steering ELECTRICAL:Battery: 12 V, 96 AhAlternator: 12 V, 90 AStarter Capacity: 12 V, 2.2 kWLights: Headlights, Tail Lights and Stop LightsGauges: Indicators for: Glow plug, Charge, Engine Oil PressureSwitches: Safety start switches (Rnage lever, PTO lever, Clutch pedal)Cold Temperature Starting Aid: Starter motor with pre-heaterIndicator Lights: Head lamps, side indicators, Rear parking brake & indicator light On dash board indicators for battery charging, turn signal, PImplement Light Socket: 2 Rear signal lightsDIMENSIONS:Paint: High Visibility PaintmComfort Seat: mComfort Seat w/ Mechanical SuspensionStandard Installed Radio: Radio (Opt)Overall Length in (mm): 126.9 (3223.6)Overall Width in (mm): 62.6(1,590)Overall Height in (mm): 102 (2590.8)Wheelbase in (mm): 73.7 (1872)Minimum Ground Clearance in (mm): 13.8 (350)Turning Radius ft (m): 12.5 (3.8)Weight lb (kg): 5390 (2445)WHEELS & TIRES:AG [Front/Rear]: 9.5x16 6PR / 14.9x24 6PRIND [Front/Rear]: 12x16.5 6PR / 16.9x24 8PRCAPACITIES:Fuel Tank gal. (L): 16 (60.6)Cooling System gal. (L): 2.5 (9.4)Engine Oil gal. (L): 2 (7.5)TRANS & DIFF gal. (L): 9.2 (34.8)Front Axle & Final Drive Case gal. (L): 4.3 (16.2)

Read more less

The 2600 series offers the most user-friendly compact utility tractors in Mahindra‘s arsenal. But don’t be fooled into thinking these affordable tractors compromise on quality and power. 2645 machines are perfect for general farming and landscaping jobs that require the best of the essentials, while also possessing choice features designed for comfort and convenience. That’s a lot of tractor for your dollar. 2645 machines are perfect for general farming and landscaping jobs that require the best of the essentials, while also possessing choice features designed for comfort and convenience. That's a lot of tractor for your dollar. It's designed for general-purpose farming, livestock care, and grounds maintenance. ENGINE:Type: Tier IV Engine, Four Stroke, Direct Injection, Mahindra common rail injectionEngine HP [kW] @ RPM: 44 (33) @ 2600Maximum Torque (in-lbs) @ RPM: Dry Paper ElementDisplacement (in3): 167(2732)Number of Cylinders: 4Firing Order: 1-3-4-2Bore & Stroke (in): 3.5 / 88.9Compression Ratio: 18.7 ± 0.7:1Low Idle RPM: 1000 ± 50High Idle RPM: 2600Injection Pump: DirectMuffler: Horizontal Muffler and exhaust pipe (fully enclosed)Air Cleaner: Dry filter element, paper element filtering typeFuel: DieselFuel Tank gal (L): 9 (34)POWER TAKE OFF:Type: IndependentPTO Operation: Clockwise from rear of tractorRear PTO RPM: 540 @ 2650PTO HP [kW]: 36 (26.8)DASH INSTRUMENTS:Tachometer & Hour MeterFuel GaugeTemperature GaugeIndicators for Warning Messages4WD Engaged LampPark Brake IndicatorSAFETY EQUIPMENT:Foldable ROPS w/ Retractable Seat BeltSafety Start SwitchesTurn Signals/ Hazard LightsMechanical Wet Disc BrakesElectric Key Shut OffParking Brake Indicator on DashWater Temperature GaugeHorn DRIVE TRAIN:Transmission: Sync, shuttle With part synchromeshNumber of Speeds: 12F / 12RClutch: Single plate, dryBrakes: Wet Disc Brake, MechanicalHYDRAULICS:Live, independent system. Cat 1 3-point hitch linkageType: Open Center with position controlSteering Pump Output gpm (L/min): 4.5 (17)Implement Pump Output gpm (L/min): 8.2 (31.0)Maximum Total Flow gpm (L/min): 12.7 (48.1)3-Point Hitch: CAT ILift Capacity lb (kg): 2646 (1200)Standard Rear Valve Fitment: -Optional Fitments: 2 Spools, 3rd Function KitFeatures: Aux, Exterior Float ValveOPERATOR STATION:Tilt Steering wheelDebris ShieldWide platform StepsColor Coded Controls7 pin plug (optional)mComfort Seat w/ adjustable mechanical suspensionFRONT AXLE:Bevel Gear Cast IronSingle Piece Front Axle w/ Fixed Tread Spacing ELECTRICAL:Battery: 12 V, 80 AhAlternator: 12 V, 90 AStarter Capacity: 12 V, 2.0kWLights: Headlights, Turn Signal, Rear Parking, Break Lamp, Tail LampsGauges: Hour Meter, Tachometer, Fuel Gauge, Water Temperature Gauge, Warming LightsSwitches: Safety start switches (Range lever, PTO lever, Clutch pedal)Cold Temperature Starting Aid: Pre-heater, Block heater (optional)Indicator Lights: 2 rear signal lightsImplement Light Socket: Trailer Socket Kit (Opt)DIMENSIONS:Paint: High Visibility PaintmComfort Seat: mComfort Seat w/ Mechanical SuspensionStandard Installed Radio: -Tilt Steering: -Overall Length in (mm): 119.3 (3030)Overall Width in (mm): 63.2 (1605)Overall Height in (mm): 94.5 (2400)Wheelbase in (mm): 67.7 (1719)Minimum Ground Clearance in (mm): 12.8 (325)Weight lb (kg): 3285 (1490)WHEELS & TIRES:AG [Front/Rear]: 8.3x16 / 12.4x24IND [Front/Rear]: 10-16.5 / 43x16-20CAPACITIES:Fuel Tank gal. (L): 9 (34)Cooling System gal. (L): 1.8 (6.8)TRANS & DIFF gal. (L): 8.5 (32.1)Front Axle & Final Drive Case gal. (L): 2.1 (7.9)

Read more less

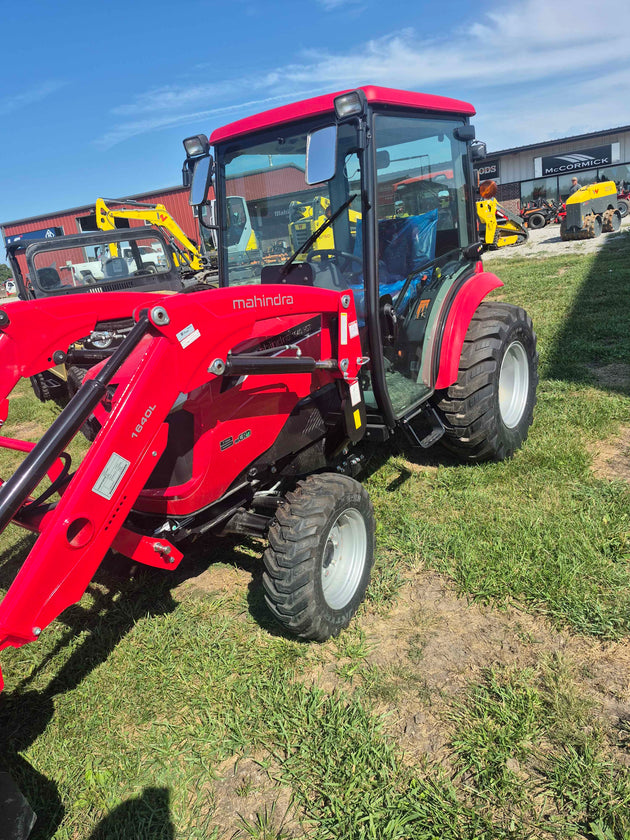

NO LIGHTWEIGHT HERE. Mahindra 1600 compact utility tractors are built to handle grueling jobs around the ranch, hunting property, park, or large estate. They offer a small footprint but powerful diesel engines, competitive lift capacities, and exclusive features like a cab and mid-mower to maximize versatility and comfort. Features may include: ADVANCED ENGINE TECHNOLOGY WITH NO DOWNTIME Mahindra’s mCRD fuel-injected engine ensures high power output at low RPMs, superior PTO horsepower, and reduced fuel consumption. Moreover, it eliminates the need for a DPF (Diesel Particulate Filter), which means no regeneration downtime, fewer parts to replace, quieter operation, no squandered warranty hours, and no wasted fuel. READY FOR A BLIZZARD The Mahindra 1600 Series tractor battery delivers up to 925 cold-cranking amps, ensuring the engine starts every time, even in wintry conditions. It’s truly the best battery in the compact utility class! Add a climatized cab and one of many snow removal attachments to tackle any snow-related task easily. EXCEPTIONAL FRONT LOADER & 3-POINT HITCH With a loader lift capacity of up to 1650 lbs and greater than 8 ft high, take on almost any loader chore, including stacking two rows of round bales in the barn or loading feed in towering mixer wagons. Safely operate most CAT1 implements thanks to an operating weight of 1.5-2 tons, 19-30 PTO hp, and a PTO lift capacity of 2646 lbs. Its 3-point hitch comes standard with telescoping stabilizers & flex links for fast implement hookups, too. UNMATCHED RIDE QUALITY Try sitting on a tractor all day, and then you’ll see why the 1600 comes with power steering standard and mComfort — the comfiest, form-fitting seat in its class. It offers maximum support, featuring a superior form-fitting seat cushion with added air suspension and foldable armrests. Add a climatized cab for year-round comfort. ENGINE:Four Stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine, Complies w/ US TIER-4 Final NormsEngine HP [kW] @ RPM: 25.9 (19.1) @ 2500Displacement (in3): 80.4 (1318)Number of Cylinders: 3Firing Order: 1 - 3 - 2Bore & Stroke (in): 3.07" x 3.62" (78 mm x 92 mm)Compression Ratio: 22:1Low Idle RPM: 970 ± 1000High Idle RPM: 2680 ± 2720Injection Pump: Bosch-MAccelerator : Hand leverMuffler: Under hood muffler & downswept exhaustAir Cleaner: Paper elementFuel: Ultra Low Sulfur DieselFuel Tank gal (L): 7.1 (27)POWER TAKE OFF:Type: IndependentPTO Operation: SwitchRear PTO RPM: 540 @ 2376Mid PTO RPM: 2000 @ 2526PTO HP [kW]: 21.5 (16)DASH INSTRUMENTS:Tachometer & Hour MeterFuel GaugeTemperature GaugeIndicators for Warning Messages4WD Drive LampSAFETY EQUIPMENT:Foldable ROPS w/ Seat BeltSafety Start SwitchesTurn Signals/ Hazard LightMechanical Wet Disc BrakesElectric Key Shut OffParking Brake Indicator on DashWater Temperature Gauge DRIVE TRAIN:Transmission: HST - 2 rangeNumber of Speeds: InfiniteClutch: Single Plate, DryBrakes: Wet DiscHYDRAULICS:Type: Open CenterSteering Pump Output gpm (L/min): 3.3 (12.2)Implement Pump Output gpm (L/min): 7.5 (28.5)Maximum Total Flow gpm (L/min): 10.8 (40.7)3-Point Hitch: CAT I w/ Telescoping StabilizersLift Capacity lb (kg): 2646 (1200)Optional Fitments: One valve optionalWorking Pressure (psi): 2205OPERATOR STATION:Cruise ControlDebris ShieldWide Platform StepsColor Coded ControlsmComfort Seat w/ foldable armrestsFRONT AXLE:Power SteeringCenter PivotReverse Eliot TypeLevel Gears for Wider Steering ELECTRICAL:Battery: 12 V, 540 CCAAlternator: 12 V, 50 AStarter Capacity: 12 V, 1.7 kWLights: Forward headlamps, fender mounted turn signal and hazard lampsGauges: Tachometer, fuel gauge, hour meter, temperatureSwitches: Horn, hazard lights, head lamps, turn signalCold Temperature Starting Aid: Glow plugsIndicator Lights: Turn signal, low headlight beam, high headlight beam, engine oil pressure, preheat, charge lampDIMENSIONS:Overall Length in (mm): 121.3 (3081)Overall Width in (mm): 63 (1600)Overall Height in (mm): 81.5 (2070)Wheelbase in (mm): 67.3 (1709)Minimum Ground Clearance in (mm): 11.4 (289)Turning Radius ft (m): 7.9 (2.4)Weight lb (kg): 2459 (1115)WHEELS & TIRES:AG [Front/Rear]: 7 x 16 / 11.2 x 24IND [Front/Rear]: 27 x 8.5-15 / 15 x 19.5CAPACITIES:Fuel Tank gal. (L): 7.1 (26.8)Cooling System gal. (L): 1.4 (5.2)Engine Oil gal. (L): 1 (3.7)TRANS & DIFF gal. (L): 9 (34)Front Axle & Final Drive Case gal. (L): 1.1 (4.1)

Read more less

ENGINE:Type: Four Stroke, Naturally Aspirated, Indirect Injection, Water Cooled Diesel Engine, Comply with US TIER-4 Final NormsEngine HP [kW] @ RPM: 19.4 @ 3000Displacement (in3): 60.6 (993)Number of Cylinders: 3Firing Order: 1-3-2Bore & Stroke (in): 2.91x3.03 (74x77)Low Idle RPM: 1350High Idle RPM: 3235Injection Pump: Indirect Fuel InjectionAccelerator : Hand leverMuffler: Under hood muffler & downswept exhaustAir Cleaner: Paper elementFuel: Ultra low sulfur dieselFuel Tank gal (L): 6.6 (25)POWER TAKE OFF:Type: IndependentPTO Operation: SwitchRear PTO RPM: 540 @ 2942Mid PTO RPM: 2500 @ 2958PTO HP [kW]: 14.2 (10.6)DASH INSTRUMENTS:Tachometer & Hour MeterFuel GaugeSAFETY EQUIPMENT:Foldable ROPS w/Retractable Seat BeltSafety Start SwitchesTurn Signals/Hazard LightsMechanical Wet Disc BrakesElectric Key Shut OffParking Brake Indicator on DashWater Temperature Indicator on Dash DRIVE TRAIN:Transmission: HST - 2 rangeNumber of Speeds: InfiniteBrakes: Wet DiscHYDRAULICS:Type: Open CenterSteering Pump Output gpm (L/min): 2.1 (8)Implement Pump Output gpm (L/min): 4.1 (15.5)Maximum Total Flow gpm (L/min): 6.2 (23.4)3-Point Hitch: CAT I Narrow with Check ChainsLift Capacity lb (kg): 680 (309)OPERATOR STATION:Cup HolderToolbox12V SocketOne-Touch PTO On/Off SwitchmComfort SeatReinforced steel hood & fendersWide platform stepsColor coded controls ELECTRICAL:Battery: 12 V, 450 CCAAlternator: 12 V, 45 AStarter Capacity: 12V, 1.4 kWLights: Wrap around headlamps, ROPS mounted turn signal and hazard lampsGauges: Tachometer, fuel gauge, hour meterSwitches: PTO, hazard lights, head lamps, turn signalCold Temperature Starting Aid: Glow plugsIndicator Lights: Turn signal, low headlight beam, engine oil pressure, engine warning, parking brake, low fuel, water temperature, preheat, chargDIMENSIONS:Overall Length in (mm): 94.2 (2392)Overall Width in (mm): 44.5 (1130)Overall Height in (mm): 86.6 (2299)Wheelbase in (mm): 53.1 (1348)Minimum Ground Clearance in (mm): 8.3 (210)Turning Radius without Brakes ft (m): 7.2 (2.1)Weight lb (kg): 1499 (679.9)WHEELS & TIRES:AG [Front/Rear]: 18 x 8.5-10 / 26 x 12-12IND [Front/Rear]: 18 x 8.5-10 / 26 x 12-12CAPACITIES:Fuel Tank gal. (L): 6.6 (24.9)Cooling System gal. (L): 0.92 (3.5)Engine Oil gal. (L): 0.52 (1.9)TRANS & DIFF gal. (L): 3.6 (13.6)Front Axle & Final Drive Case gal. (L): 0.65 (2.4)

Read more less
