Wacker Neuson Equipment

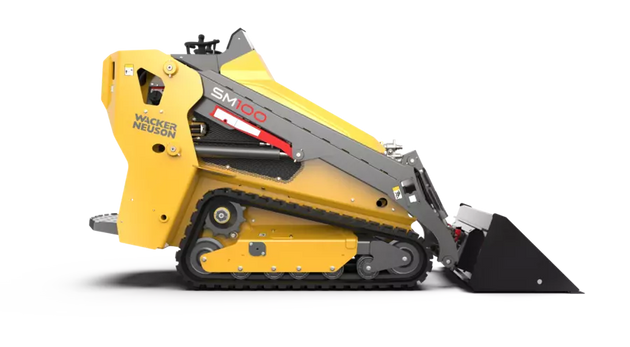

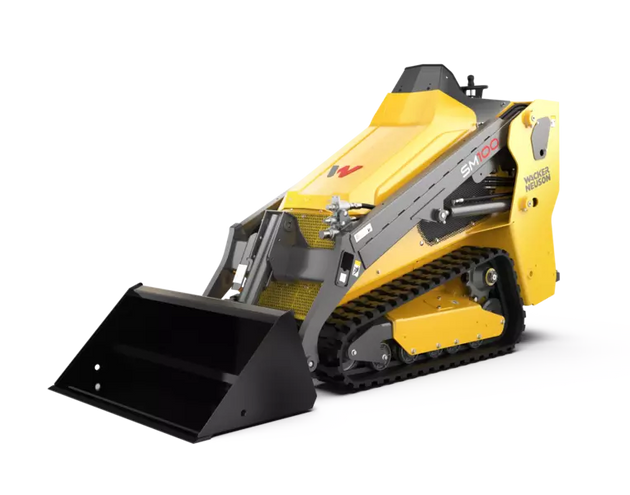

Overview The versatile SM100 is the perfect fit for landscaping projects, light site work, grading, auguring and general material handling. Standard 9-inch wide tracks provide low ground pressure, reducing turf disturbance and repair work Narrow overall machine width of 35.5" fits through doorways, gates and other tight spaces Optimized radial lift path provides vertical lift performance with hinge pin height of 85.7" for dumping into high-sided trucks and has the reach for loading into truck beds Common industry attachment interface for use with compatible attachments Standard faster auxiliary hydraulic block Large, spring-suspended operator platform for improved stability on any terrain Operator station with ergonomic padding for comfort and stability Ergonomic, forward angled joystick design reduces fatigue Front-mounted coolers eliminate airflow across operator legs Excellent visibility Durable undercarriage with triple flanged roller design reduces maintenance cost and total cost of ownership Operator presence system prevents accidental movement of lift arm and travel functions when operator steps off platform Proven, aftertreatment-free turbo diesel Yanmar engine Easy access service points Specifications : Rated operating capacity @ 35%: 1,000 lb. Tipping load: 2,857 lb. Operating weight: 3,300 lb. Travel speed: 5.2 mph Ground pressure: 4.1 psi Auxiliary flow rate: 13 gpm Auxiliary pressure: 3,045 psi Engine type: Yanmar 3TNV80FT, liquid-cooled, 4-cycle, 3-cylinder, turbocharged diesel engine Power: 24.7 hp Max torque @1800 rpm: 62.6 lbf Idle speed low/high: 1,200/2,600 rpm Fuel tank capacity: 14.1 gal. Overall length w/wo bucket: 108"/84.3" Overall width x height: 35.5" x 58.2" Hinge pin height: 85.7" Dump height: 62.8" Bucket roll back ground/max height: 25/92 deg. Bucket dump angle at max height: 42 deg. Ground clearance: 7.8" Track length on ground: 43" Angle of departure: 25.6 deg. Width Weight Height Length 0 Inch 0 Gram 0 Inch 0 Inch

Read more less

Description: RD12 Tandem Roller: High Performance for excellent compaction results The RD12L tandem vibratory roller with a dual drum drive and articulated steering for excellent maneuverability. With a front vibrating drum and rear static drum it offers efficiency compaction results in a compact package. This machine is ideally suited for commercial and residential compaction of asphalt and granular sub-base material. Primary applications include parking lots, driveways, secondary roads, repair work and nature trails. Additionally, the RD12L is utilized for turf rolling in the landscape and golf industry segments. Highlights ■ Ergonomic Operator Platform ■ Optimized curb and side clearance ■ Excellent drum visibility ■ Fully integrated operating lever ■ Industry leading service access ■ Dual drum hydrostatic drive system Unit also available to rent Technical Data Centrifugal force: 3,400 lbf Amplitude at air: 0.043 " Travel speed: - 5.0 Oscillation Angle: 12.0 ° Travel speed (reverse): - 5.0 Cooling: air cooling Engine type: Gasoline engine Engine operating mode: four-stroke Cylinder: 2.0 Fuel consumption: 1.6 GPH US Power rating max.: 20.2 hp Exhaust-gas limit: EPA Tier 4 final Starter battery Voltage: 12.0 V Engine Manufacturer: Kohler Water tank capacity: 34.6 gal US Steering angle max.: 34 Steering: hydraulics Length for shipping: 79.8 " Width for shipping: 41.7 " Height for shipping: 69.0 " Shipping weight: 2,288.4 lb Ergonomic Operator Platform The operator's platform is ergonomically designed to minimize vibration while having easy access and comfortable reach to all controls. This ensures greater efficiency and operator comfort. Fuel and water gauges provide operator with fluid levels during operation. The skid resistant lockable metal floorplate and the built-in all weather seat with seatbelt allow for safer and comfortable operation during any season. and makes the machine even more durable. Optimized curb and side clearance The optimized curb clearance prevents damage to concrete curbs when compacting subbase and asphalt. With the side clearance of less than 2 inches the operator can maneuver close to any structure resulting in professional compaction end results. Fully recessed hydraulic motors provide excellent curb and side clearance allowing easy compaction near curbs, walls and in confined areas. Excellent drum visibility With a tapered frame and hood design, the operator has excellent visibility to the drum edges for more comfortable operation and efficiency. The compact design allows an unobstructed view of the drums at all times. This simplifies maneuvering and approaching walls and obstacles providing high quality results. The operator has all-round visibility which means fewer mirrors and no need for a rear-view camera. In addition, the risk of accidents is reduced. Fully integrated operating lever Ergonomic joystick with integrated vibration and water spraying functions for better control and ease of operation. Industry leading service access The hood design provides easy to the engine, hydraulic components, fuse box and maintenance points. Quick, tool-free access to water pump, water filter, battery and manuals guarantee easy maintenance of the equipment. This reduces the overall maintenance downtime and therefore the total cost of ownership. Hinged floor plate allows quick access to the main components. Dual drum hydrostatic drive system This allows for greater productivity and surface finishing as both drums rotate at the same speed avoiding asphalt shoving. Copyright © 2023 Wacker Neuson SE | www.wackerneuson.com. The illustrations, equipment and data shown may deviate from the current delivery program of your country. Optional equipment subject to additional charge may be shown. Subject to changes. Width Weight Height Length 0 Inch 0 Gram 0 Inch 0 Inch

Read more less

Description: Low-maintenance design for low TCO Sturdy protective frame for engine and water tank Optimally shaped base plate Specification: Operating Fluids Exciter Oil Volume: 0.15 liters Exciter Oil Type: 75W-90 API GL-4 Engine Fuel Management: Carburettor Inclined Position Max: 20.0 degrees Engine Operating Mode: Four-stroke Operating Engine Speed: 3,520 rpm Fuel Consumption: 0.80 L/hour Tank Capacity: 3.60 liters Oil Filling Max: 0.60 liters Effective Power: 3.1 kW (Nominal), 3.6 kW (Max) Engine Type: Gasoline engine Cylinder: 1 Engine Manufacturer: Honda Cylinder Capacity: 163 cm3 Oil Specification: SAE 10W-30 Starter Type: Recoil starter Mechanical - Output Details Vibrations: 5,880 vibrations per minute (98.0 Hz) Forward Running Speed: 29.00 m/min Transmission: FKK-KR Gradeability: 36.4% Centrifugal Force: 15,000 kN Area Capacity: 870 m2/h Electrical System Electrode Distance: 0.70 - 0.80 mm Environment Data Operating Temperature Range: -15 to 40 °C Storage Temperature Range: -15 to 40 °C Sound Level: LpA 94.0 dB(A), LWA 108.0 dB(A) guaranteed, 107.0 dB(A) measured Hand-Arm Vibration (HAV) Summation: 5.3 m/s² (average value), 0.5 m/s² (uncertainty) Mechanical Details Length Drawbar in Operational Position: 877 mm Operating Weight: 96.0 kg Ground Clearance: 527 mm Height: 963 mm Width: 498 mm Custom Attributes Model Series: WP Width Weight Height Length 498 Mile 96 Pounds 963 Mile 877 Mile

Read more less

Description High capacity bucket with pre-drilled holes for bolt on edge and side cutters. Bucket has a higher back allowing for more capacity to move more volume of material and scoop more heavy material for moving and loading. Specifications Width: 84 in. (2134 mm) Capacity: 0.99 yd³ (0.76 m³) Weight: 749 lb. (340 kg) Key Features Bucket widths range from 75-inches (1905 mm) to 84-inches (2134 mm); Capacity range from 0.78 yd³ (0.60 m³) to 1.5 yd³ (1.147 m³) Various sizes and edge hole patterns for common bolt-on wear edges available to assist in your job requirements Heavy-duty construction for long operating life Standard tooth bars fit over bolt-on edge wear edges available NOTES: For ST35, ST45

Read more less

Wacker Neuson DT10 Edition D0900 Track Dumper with Swivel Skip A powerful and sturdy track dumper with a high level of running smoothness for a safe and comfortable drive, even in confined working conditions. The hydrostatic drive system allows for quick and convenient operation and the single-piece engine hood, as well as the optimal arrangement of the service points, make daily maintenance much easier. The rubber tracks and the excellent weight distribution reduce the ground pressure, ensuring more extensive application uses. The variety of skip versions make it a very versatile machine. Hydrostatic drive Simply start and off you go: Because of the hydrostatic drive system, no frequent gear changing is needed and the operator can focus on the task. The hydraulic drive system and the working hydraulics can be operated independently of each other. Small dimensions The compact dimensions allow the operator to work efficiently even in confined or hard-to-reach areas. This means that tasks on small construction sites, in narrow driveways and in densely built-up areas can be completed without any problems. In addition, the compact design facilitates maneuvering and increases safety by giving the operator full control and an overview of the surroundings. Hanging suspension-mounted rollers The suspension-mounted rollers provide for a smooth and safer operating experience. Due to the suspended support, the rollers adapt to the terrain and compensate for obstacles or unevenness, such as stones. As a result, the operator benefits from optimal driving comfort, even off-road. Features D0900 edition with a swivel skip Fully-hydrostatic drive system allows for easy and convenient operation Because of the hydrostatic drive system, no frequent gear changing is needed and the operator can focus on the task Sturdy traveling gear design to bring about durability and low wear Easier maintenance due to the single-piece engine hood and optimal arrangement of the service points Two-cylinder 13HP diesel engine Rubber track and optimal weight distribution minimizes ground disturbance Compact dimensions for narrow passages Superior stability and a high level of running smoothness due to the hanging suspension-mounted rollers

Read more less

SM120 Utility Track Loader: Do More with Less The SM120 uses Wacker Neuson's ergonomic mini-loader controls, while maintaining operator comfort features such as padding and a spring suspension for a better ride and added stability. The high hinge pin of the SM120 provides a 5'3" bucket dump height and allows for easy loading into high sided trucks and dumpsters. The wide (11") track width provides among the lowest ground pressures on the market, minimizing incidental damage to the work site. All Day Comfort Large, spring-suspended operator platform provides comfort and a stable base for the operator. Fine tuned, forward angled joysticks, position the operator’s hands in a neutral position to reduce fatigue. Plush padding provides comfort and stability; Additional creature comforts include a cup holder, 12v charging port and storage compartment. Extra Wide Tracks The SM120 has extra Wide Tracks that reduce ground pressure to among the lowest in the class, which reduces the potential for site damage and provides a stable ride. Premium Performance The SM100 is powered by a 24.7 horsepower Yanmar diesel engine providing high torque and a flat power curve to enhance productivity through fast cycling times and expectational pushing power. 13 gpm of auxiliary hydraulic flow is available to power a wide variety of money saving attachments. Professional Grade Undercarriage Durable undercarriage reduces maintenance costs and Total Cost of Ownership through innovative design and quick maintenance. Sealed idlers and triple flanged rollers provide added surface area and engagement to reduce wear and de-tracking. Achieving optimal track tension is quick and painless with an integrated grease cylinder track tensioner. HighlightsCompact DesignIndustry Leading Safety FeaturesAll Day ComfortTechnical DataHydraulic Flow rate 12.9 gal/miAuxiliary relief pressure 3,045.0 psiMechanical - Output DetailsGround Pressure (standard track) 2.9 psiTravel speed 5.2 m/HMechanical DetailsOverall Length without bucket 108.3 "Overall Length with Bucket 126.0 "Overall width without bucket 41.0 "Height 58.2 "Bucket Hinge Pin Height 85.7 "Bucket roll back at ground 25.0 °Bucket roll back at maximum height 92.0 °Angle of departure 25.0 °Bucket dump height at maximumheight 62.8 "Bucket dump angle at maximumheight 38.0 °Operating weight 3,300.3 lbTrack width 11.0 "Ground clearance 7.8 "Length of Track on Ground 43.0 "Dump reach at maximum height 21.9 "EngineCooling Water-coolingCylinder 3.0Cylinder capacity 77.3 Inch3Operating power 24.7 hpOperating Engine speed 2,600.0 1/minManufacturer YanmarEngine designation 3TNV80 FTOperating FluidsFuel Tank capacity 16.9 gal USChassisTip Load 3,507.6 lbRated Operating Capacity at 50% Tip Load 1,752.7 lbRated Operating Capacity at 35% Tip Load 1,225.8 lb

Read more less

ST31 Compact Track Loader: Compact and Efficient The ST31 matches the compact size of a medium frame with lift capacity of larger loaders. The vertical lift arm, 125 inch lift height and 74hp regeneration free engine, make the ST31 an accomplished material handler, perfect for use in a wide range of applications, from moving palletized material around a construction site to truck loading. The wide, double-steel reinforced tracks provide stability and reduced total cost of ownership. Description With a top speed of nearly 10 MPH, travel time is reduced giving the operator more time throughout the day to get more tasks completed Quick and easy service access from the forward tilting cab and the arrangement of internal components makes it easy to maintain the machine Class leading track-on-ground of 57.2″ decreases ground pressure while increasing digging performance Controls for Every Operator Mechanical hand-foot controls allow the user to operate boom and bucket controls via foot pedals and machine steering via hand levers. Selectable EH joystick controls: Control patterns can be toggled between ISO and H-Pattern via a switch in the cab. Sensitivity can be adjusted to the operator’s preferences. With adjustable sensitivity and control patterns, the loader is designed to fit the control preferences of nearly any user. Different types of controls ensure that operators with different backgrounds and experience can operate efficiently. Choose between mechanical hand-foot controls and selectable EH Joystick Controls with ISO and H patterns. 5.7-inch Color Display The full color deluxe display allows for customizable machine settings and operating parameters, as well as, error codes and maintenance reminders. Pair with the optional rearview camera to enhance visibility and jobsite awareness Maximum Visibility Low mounted tilt cylinders, expansive door, sloped rear engine compartment and large side windows maximize operator visibility in every direction. Forward Tipping Cab Whether the lift arm is fully raised or on the boom stops, a forward tipping cab provides ample access to hydraulic pumps and motors. Operating Data: Height top of ROPS: 83” Overall length w/ bucket: 136.6” Overall length w/o bucket: 106.6” Height Hinge Pin Max: 125.5” Operating weight: 8,095 lb. Rated Operating Capacity ROC 50%: 3,100 lb. Rated Operating Capacity ROC 35%: 2,170 lb. Dump reach: 36” Length of track on ground: 57.2” Dump height max. at max height: 97.2” Angle of departure: 30.7° Tipping angle (bucket dump) w/ bucket at max height: 42° Ground clearance: 9.1” Breakout force max. – Bucket: 5,300 lbf Breakout force max. – Boom: 5,000 lbf Width: 67.1” Track Width: 12.6” Engine / Motor: Engine / Motor manufacturer: Kohler Engine / Motor: KDI 2504 TCR Engine performance: 74 hp Displacement: 151.5 in.3 RPM / speed: 2,750 rpm Battery: 950 Ah Fuel tank capacity: 30 gal. Hydraulic System: Auxiliary Hydraulics- Standard Flow: 20 gpm Auxiliary Hydraulics- High Flow: 30 gpm Pressure aux. relief: 3,500 psi Hydraulic oil tank: 2.9 gal. Power Transmission: Two speed transmission provides increased travel speeds to reduce work cycle times and increase productivity Travel speed: 7 mph (low), 10 mph (high) Standard Components: Vertical Lift Arm Deluxe Interior ROP’s / FOP’s: Level 1 Canopy with Side Screens 74.3 HP Kohler Tier IV Final diesel engine with maintenance-free after treatment Mechanical Hand-Foot Controls Mechanical Coupler Non Suspension Seat (Sliding Only) Single Speed Drive 320mm Wide Tracks 950cca Battery Single SpeedCooling Fan 20.1 gal./min. Auxiliary flow 2″ Seat Belt 2 Front single beam working lights 2 Rear working lights Standard Features Plus: Enclosed ROPS Cab w/ HVAC, Selectable EH Controls, Two-Speed Drive, Hydraulic Coupler, Variable Speed Fan, Hydraulic Bucket Leveling, Ride Control

Read more less

The RD12 tandem vibratory roller with a dual drum drive and articulated steering for excellent maneuverability. With a front vibrating drum and rear static drum, it offers efficiency compaction results in a compact package. This machine is ideally suited for commercial and residential compaction of asphalt and granular subbase material. Primary applications include parking lots, driveways, secondary roads, repair work and nature trails. Additionally, the RD12 is utilized for turf rolling in the landscape and golf industry segments. The Wacker Neuson RD12L-90 Ride-On Roller, a state-of-the-art compaction solution for asphalt and subbase materials. This double drum, one-ton machine features a powerful Kohler Command PRO EFI engine and ergonomically designed operator station with integrated controls for water and vibration functions. You'll also enjoy increased fuel and water efficiency thanks to larger capacity tanks that minimize refilling time on the job site. The hood design provides quick, easy access to the engine, hydraulic, and water systems; plus, fully recessed hydraulic motors give excellent side control. Boost your productivity with the new Wacker Neuson RD12L-90 Ride-On Roller, a reliable way to get your next job done right. Double drum, one-ton, ride-on roller with Kohler engine and fixed ROPS for compaction of asphalt and subbase materials. Ergonomically designed operator station provides comfort and efficiency by integrating both water and vibration functions into the joystick for a smoother operation. Fuel and water gauges provide operator feedback to fluid levels at all times Powered by a proven Kohler Command PRO EFI engine, the RD12 provides contractors with a highly efficient machine for a variety of jobs Increased water & fuel capacity minimizes the need for refilling during the day increasing job site efficiency Unique hood design and pivoting floor plate provide quick, tool-free, and spacious access to engine, hydraulic and water systems Fully recessed hydraulic motors provide excellent curb and side clearance allowing the user to easily compact near curbs, walls, and confined areas

Read more less
