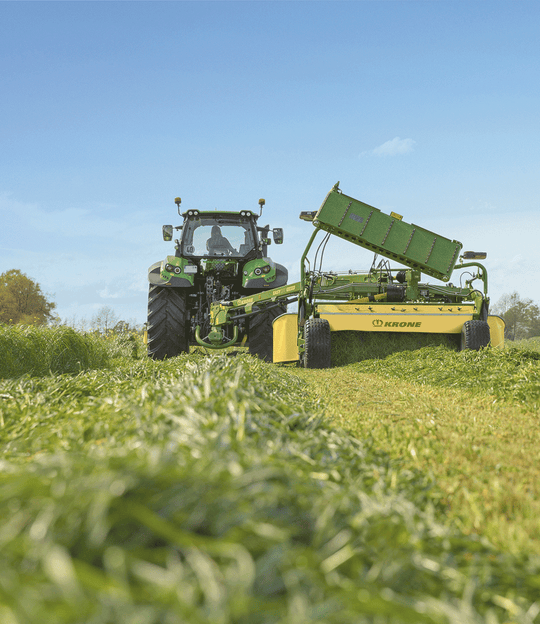

Trailed disc mowers meet a wide variety of needs and requirements which vary by country, region and harvest chain. Our extensive range of mower options gives you the choice to select the specification that suits your needs. For example, choose the V-steel tine conditioner with distributing hood or the CRi roller conditioner, the swathing belt and the hydraulic swathing boards.
- Side-mounted mowers offering huge up/down travel
- Coil springs optimizing the ground pressure and adjusting without tools
- PTO-shaft driveline for frictional connections
- Robust and fully welded cutterbar without inner shoe
- Quick-change blades
- SafeCut: Individually protected discs
- SmartCut: Stripeless cuts thanks to optimum blade overlaps
- Compact in transport as the mower inclines to the middle of the tractor for optimum weight distribution and visibility

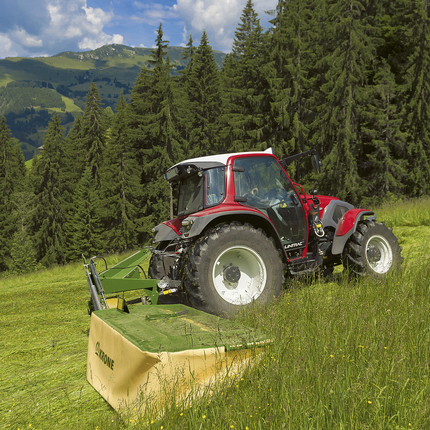

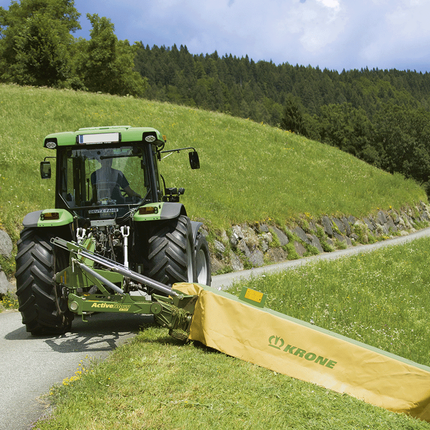

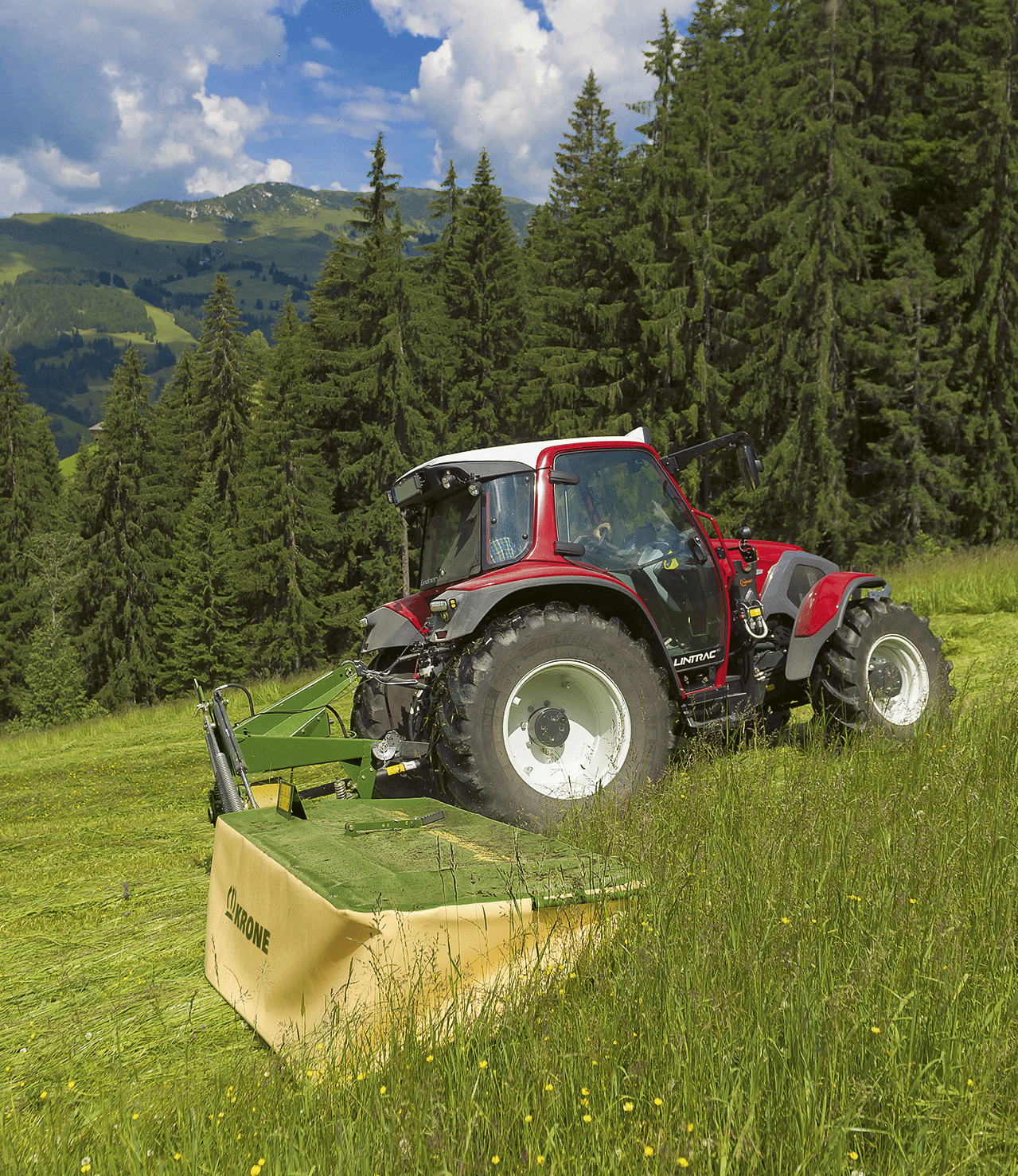

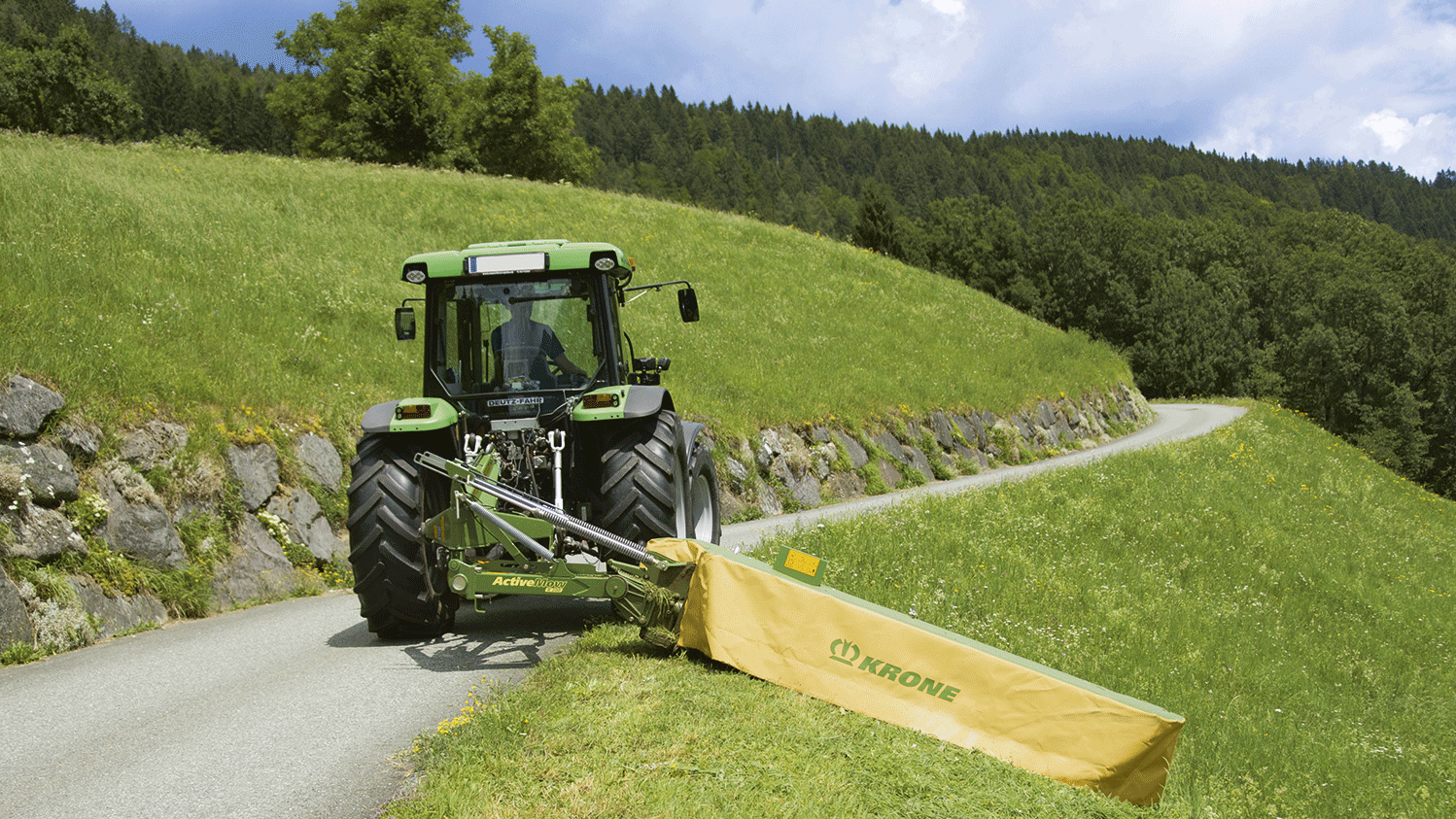

KRONE ActiveMow – Rear-mounted disc mowers
The KRONE ActiveMow mowers setting new benchmarks for lateral mowers. All ActiveMow models feature the same level of specification as the high-end KRONE mowers and the self-propelled high-capacity Big M, including a cutterbar with SmartCut effect, SafeCut cutterbar protection, a massive headstock and vertical storage as an option to minimize space requirement. The ActiveMow range lines up the following models: ActiveMow R 200 working at a 6' 8.6" width, ActiveMow R 240 with a 8' work width, ActiveMow R 280 with 9' 3.4" width, ActiveMow R 320 with a 10' 7.2" work width and ActiveMow R 360 working at 11' 10".
Key Features and Specifications:
-
Cutting Width: 9'3" (2,830 mm)
-
Number of Discs: 5
-
Number of Top Hats: 2
-
Weight: 605 kg (1,333 lbs)
-
Power Requirement: 40 / 55 kW/hp
-
PTO Speed: 540 RPM
-
SafeCut Hubs: Standard
-
QuickChange Blades: Standard
-
SmartCut Cutterbar: Increases blade overlap for a clean cut
-
Transport Position: 100° angle position
-
Optional Vertical Position: For storage
-
Hydraulic Pressure Control: Option (1 da spool)
