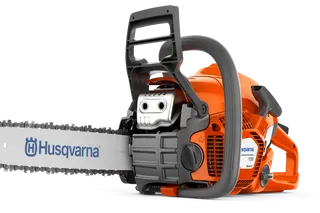

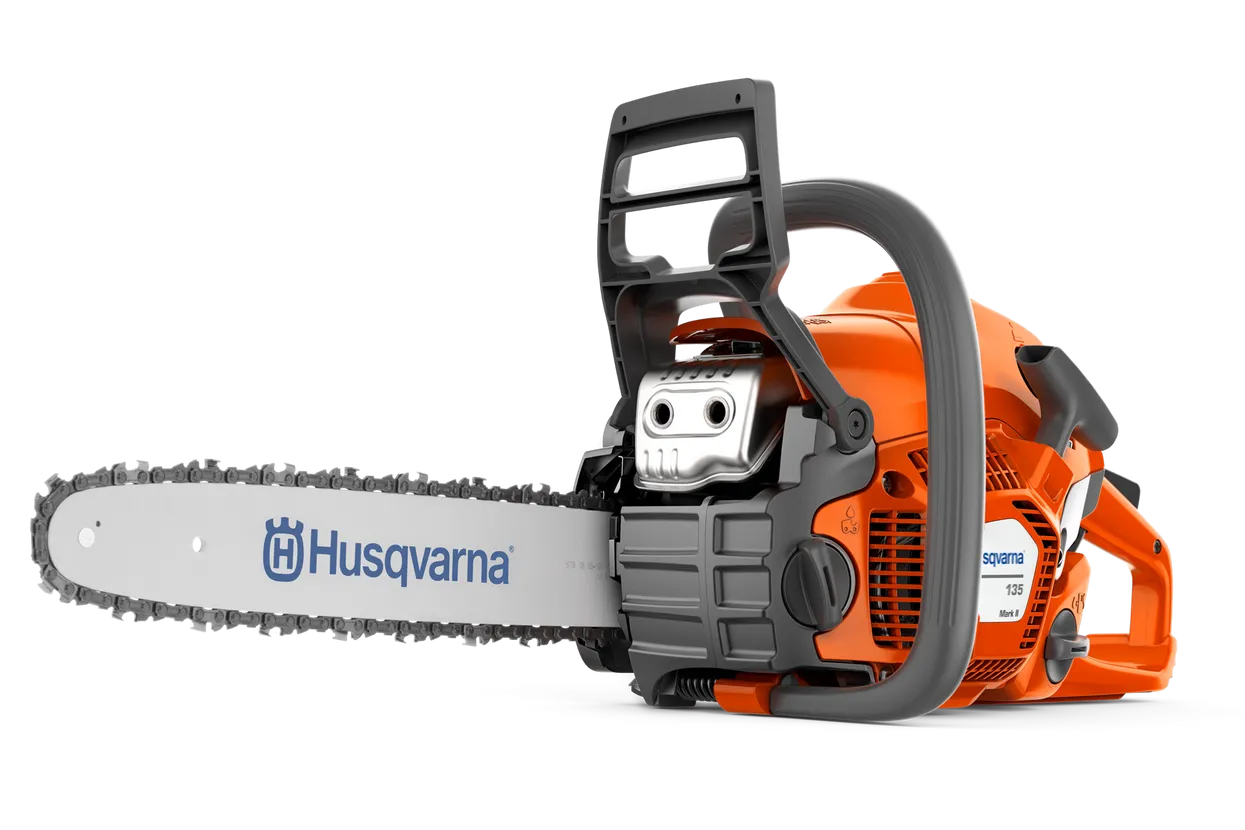

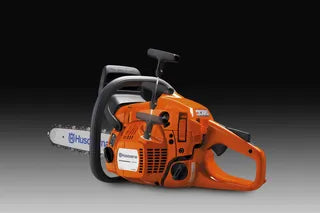

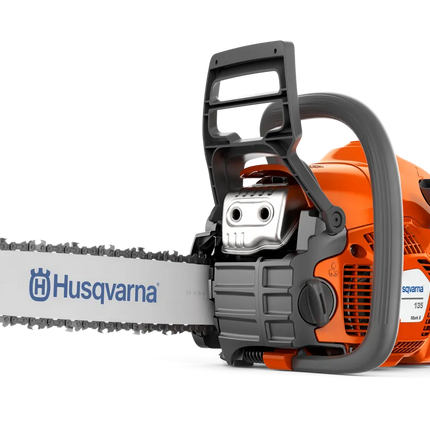

Husqvarna 135 Mark II, 16" Bar, 3/8 S93GSN, Chainsaw, 967861816

Description

Easy-to-use and powerful chainsaw with quick start

Get the job done the first time with the Husqvarna 135 Mark II. This reliable gas saw features Smart Start® and LowVib® technology for easy, comfortable use. Our proprietary X-TORQ® engine delivers superior performance, increased fuel efficiency and low emissions. And Air Injection™ technology improves engine life by expelling larger dust and debris particles before they reach the air filter.
38 cm³ Cylinder displacement
2.1 hp Output shaft power
55 fts Chain speed at max power
  • Powerful and Efficient X-Torq® Engine
  • LowVib® Technology

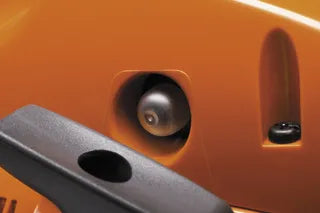

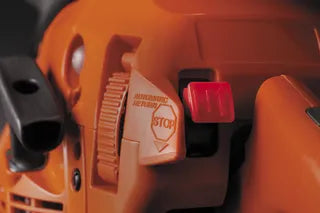

  • Smart Start® Technology
Engine
16" 3/8 S93G SN, US/CA
SKU: 967 86 18‑16
Chain speed at max power 55 fts
Cylinder displacement 38 cm³
Output shaft power1
2.1 hp
Torque, max. 1.84 Nm
Torque, max. at rpm 8,000 rpm
Clutch engagement speed (±120) 4,000 rpm
Electrode gap 0.022 in
Idling speed 3,000 rpm
Ignition module air gap 0.012 in
Maximum power speed 9,000 rpm
Oil pump type Automatic
Spark Plug NGK BPMR7A
Equipment
Recommended bar length, min 14 in
Pitch 3/8" mini
Recommended bar length, max 16 in
Chain type S93G
Bar length 40 cm
Bar length (inch) 16 in
Sprocket type Spur 6
Gauge .050"
Dimensions
Weight (excl. cutting equipment) 10.36 lbs
Sound and noise
Sound pressure level at operators ear 102 dB(A)
Sound power level, guaranteed (LWA) 116 dB(A)
Sound power level, measured 114.34 dB(A)
Vibration
Equivalent vibration level (ahv, eq) rear handle 5.5 m/s²
Equivalent vibration level (ahv, eq) front handle 3.72 m/s²
Lubricant
Oil tank volume 0.549 US pint
Lubricant type (Engine) Husqvarna 2 stroke or equiv. at 50:1
Emission
Exhaust emissions (CO₂ EU V)2
804 g/kWh
Disclaimer:
  • 1Output shaft power: Net power rating as per ISO 7293, at specified RPM
  • 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
Product form

Easy-to-use and powerful chainsaw with quick start Get the job done the first time with the Husqvarna 135 Mark II....

Free pickup in our shop(s)

SKU: 967861816
Barcode: 967861816

1 in stock

$299.99

    Description

    Easy-to-use and powerful chainsaw with quick start

    Get the job done the first time with the Husqvarna 135 Mark II. This reliable gas saw features Smart Start® and LowVib® technology for easy, comfortable use. Our proprietary X-TORQ® engine delivers superior performance, increased fuel efficiency and low emissions. And Air Injection™ technology improves engine life by expelling larger dust and debris particles before they reach the air filter.
    38 cm³ Cylinder displacement
    2.1 hp Output shaft power
    55 fts Chain speed at max power
    • Powerful and Efficient X-Torq® Engine
    • LowVib® Technology
    • Smart Start® Technology
    Engine
    16" 3/8 S93G SN, US/CA
    SKU: 967 86 18‑16
    Chain speed at max power 55 fts
    Cylinder displacement 38 cm³
    Output shaft power1
    		2.1 hp
    Torque, max. 1.84 Nm
    Torque, max. at rpm 8,000 rpm
    Clutch engagement speed (±120) 4,000 rpm
    Electrode gap 0.022 in
    Idling speed 3,000 rpm
    Ignition module air gap 0.012 in
    Maximum power speed 9,000 rpm
    Oil pump type Automatic
    Spark Plug NGK BPMR7A
    Equipment
    Recommended bar length, min 14 in
    Pitch 3/8" mini
    Recommended bar length, max 16 in
    Chain type S93G
    Bar length 40 cm
    Bar length (inch) 16 in
    Sprocket type Spur 6
    Gauge .050"
    Dimensions
    Weight (excl. cutting equipment) 10.36 lbs
    Sound and noise
    Sound pressure level at operators ear 102 dB(A)
    Sound power level, guaranteed (LWA) 116 dB(A)
    Sound power level, measured 114.34 dB(A)
    Vibration
    Equivalent vibration level (ahv, eq) rear handle 5.5 m/s²
    Equivalent vibration level (ahv, eq) front handle 3.72 m/s²
    Lubricant
    Oil tank volume 0.549 US pint
    Lubricant type (Engine) Husqvarna 2 stroke or equiv. at 50:1
    Emission
    Exhaust emissions (CO₂ EU V)2
    		804 g/kWh
    Disclaimer:
    • 1Output shaft power: Net power rating as per ISO 7293, at specified RPM
    • 2Exhaust emissions (CO₂ EU V): This CO2 measurement results from testing over a fixed test cycle under laboratory conditions a(n) (parent) engine representative of the engine type (engine family) and shall not imply or express any guarantee of the performance of a particular engine.
