Dominate tough mowing tasks with Bush Whacker equipment from Diamond R Equipment. Experience heavy-duty construction and reliable performance for brush clearing, roadside maintenance, and more.
Bush Whacker
-
Hall SSM-72 Highflow Bush Whacker Brush Cutter Mower Attachment
SSM-72 Brush Cutter Skid Steer Mower Attachment The Bush-Whacker Skid Steer Mower Attachment is a 6-foot skid steer mounted brush mower that can take on the toughest jobs and is durable enough to clear cut standing trees up to 8 inches in diameter. These mower attachments are perfect for your brush hog. Cutting capacity of 8 inches. 1/4″ Heavy Duty US Steel Decking. Top in class cutting width (72″). Heavy-duty to take on the toughest jobs. Ideal flow is 18 GPM but performs great for machines with 15-39 GPM. Only unit in its class to feature a 3/4″ blade with three (3) cutting edges. Specifications Decking - 1/4" Length (Inches) - 80.4 Width (Inches) - 76 Height (Inches) - 23.6 Weight LBS - 1,350 Blade Size - 3/4" Max Bladetip Speed - 18,400 FT/MIN Cut Width Inches - 72 Cut Capacity Inches - 8 Continuous Cut Inches - 5
-

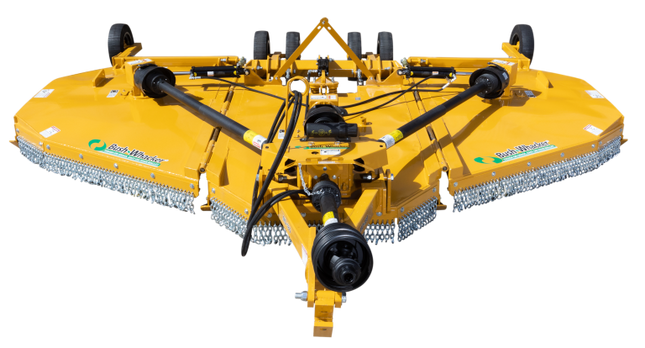

HALL MD 180, 15 Foot Flex Wing Brush Cutter, Bush Whacker
MD-180 Medium Duty 15 Foot Flex-wing Brush Cutter This easy to clean flex-wing brush cutter is one of the most sturdy medium duty cutters on the market today. It comes with a smooth-top design at a great price and is perfect for mowing grass and weeds up to 3″ in diameter. With deck-rings included as standard equipment, the MD-180 is a great bargain. Structural frame of the mower is 3″ channel, 1/4″ thick. Heavy-duty 3/8″ side skirt with full-length skid shoes. Deck Rings are a standard option for this unit. Hinges – Structural tubing with grease fittings. 4-bolt mounting on gearboxes – bolt-heads are tack-welded to bottom of deck so one person can tighten the nuts or change the gearbox. Gearboxes - 540 RPM or 1,000 RPM Three spindle gearboxes, 120 HP, base mounted, 1:1.46 ratio. One divider box, 160 HP, base mounted. All gearboxes have malleable housings, forged alloy steel, carburized and hardened gears and shafts, tapered and ball bearings. 6 splined 1 3/8″ input shaft, 2 3/8″ output shaft on spindle boxes. Drive Shafts - Shielded PTOs made from the finest quality propeller shaft materials and needle bearing universal joints. Category 6 80-degree constant velocity main drive shaft, Series 8 Category 6, and wing drive shafts. Slip Clutch - Three heavy-duty clutches with spring type adjustment and two friction discs. Blades - 1/2″ by 4″ material, alloy spring steel, airlift design. Free swinging when encountering obstructions. 8″ overlap for better cutting. Bladetip speed: 15,500 FPM. Tires - Six solid rubber tires standard. Independent shock absorbing system for all-wheel axles. Optional: “Standard Laminated / Optional 25” Treaded Laminate, Used Aircraft, or Used Foam-Filled Aircraft” Dimensions - Cutting width: 15″. Cutting height: adjustable from 2″ to 15″. Overall width: 190″. Overall length: 189″. Cutting height for aircraft and implement tires: 2″ to 17″. Transportation width - 88″ Weight - Without chains and tires: 3,700 lb.With standard tires and single curtain chains: 4,340 lb. Bush-Whacker Special Deck - The smooth, easy-to-clean top deck is made of 10 gauge steel. Hydraulic Adjustments - Hydraulic lift cylinders control raising and lowering of a flexible wing (winch assembly for manual wing lift is optional). Wing may be raised to 88 degrees above horizontal and lowered to 22 degrees below the horizontal cutting plane. Optional: rephasing level lift systems. Other Standard Features Include - Replaceable center and full-length wing skid shoes, transport locking bars for each wing, heavy-duty tongue assembly with dual leveling rods, hydraulic hose holder, park jack for easy hookup, and unhooking from the tractor. Swivel clevis to relieve stress on the tractor drawbar. Double Chain guards are an added option. Specifications Cutting Height - 2"-15" Cutting Capacity - 3" Deck Thickness - 10 Gauge Side Skirt Thickness - 3/8" Divider Gearbox HP - 160 HP Spindle Gearbox HP - 120 HP Blade Size - 1/2" x 4" Bladetip Speed - 15,500 FPM Blade Overlap - 8" Weight - 4,339 lbs Safety Deflectors - Chain Guards Tires - Laminated Mower Warranty - 1 Year Limited Gearbox Warranty - 5 Year Limited
-

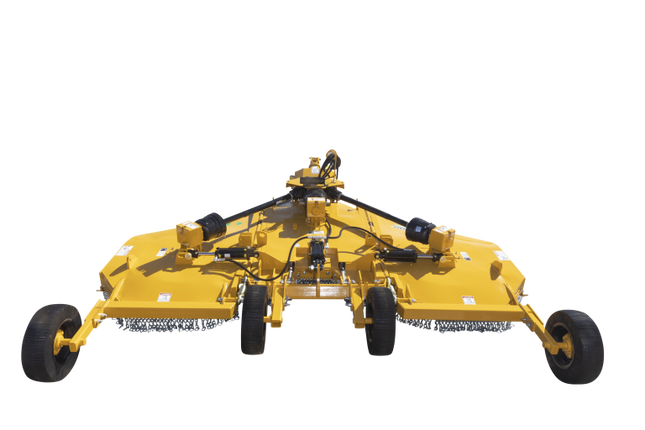

HALL MD 144 12 FT Bush Whacker Medium Duty Rotary Cutter
MD-144 Medium Duty 12 Foot Flex-wing Brush Cutter The MD-144 is a Flex-Wing unit is perfect for tractors running with 35 to 75 HP. So whether you are the “weekend farmer” with 10-40 acres who are looking to reduce his cutting time on the weekends or the professional mowing pastures, we’re certain you’ll find the MD-144 has what it takes to get the job done! DRIVELINES#1 in its class with Cat 4 Drivelines on the Main Unit and Cat 4 Drivelines on the Wings GEARBOXES#1 in its class with 120 HP capacity GEARBOX SHAFTS#1 in its class with 1″ 20 spline divider on the input and 2″ on the output CUTTING CAPACITY#1 in its class with 3″ cutting capacity CUTTING HEIGHT#1 in its class with a cutting height between 2″ to 13″ Specifications Cut Width - 144" HP Require (MIN.) - 35 HP Min Gearbox Rating Power Divider - 160 HP Gearbox Rating Center and Wing - 120 HP Gearbox Shaft Input - 1 - 3/4" - 20 Spline Gearbox Shaft Output - 2" Bladetip Speed Wing - 14,600 FPM-Wing/14,181 FPM Center Cutting Capacity (Max.) - 3" Driveline Size Main - CAT 6 Driveline Size Wing - CAT 4 Tires - Laminated or Treaded Laminated Cutting Height - 2" - 13" Hitch - Swivel Clevis Tongue Weight - 1,005 lbs Total Weight - 3,350 lbs Side Band - 3/8" Blades - 1/2" x 4" Updraft Blade Holder - 3/16" Pan w/ 1 x 4" Gusseted Bar Gearbox Warranty - 5 Year Limited Deck Height - 10.5" Deck - 10 Gauge Blade Overlap - 8" Stump Jumper Size - 3/16" x 26" Remotes - One Hubs - 5 Bolt Hinge Rods - 1" Leveling Rods - 1" Overall Length - 165" Overall Width - 155" Chains - Single Double RowChain guards Hydraulics - 4x8" Suspension/3x8 Wing Cylinder Transport Width - 96"
When it comes to finding parts for specific tractor models, you've got a range of options to ensure your equipment runs smoothly. Here's a detailed list of the models for which parts are readily available:
- Explorer Series: Focused on the Explorer 75T model, designed to handle tough terrains.
- Compact and Utility Models:
- Advanced Models:
- Heavy-Duty Options:
- High-Capacity Models:
- Land Series:
This lineup ensures that whether you're dealing with compact utility tasks or demanding agricultural operations, there are parts available to keep any of these models up and running efficiently.
How to Ensure Your Tractor Parts Are Compatible with Your Model and Year
When it comes to ordering the right tractor parts, compatibility with your specific model and year is crucial. Here's how you can make the right choice:
Start by carefully identifying the model of your tractor. Look for parts that include a detailed list of compatible tractor models. This information is usually clearly stated to help you determine if a part will fit your machine.
Pay close attention to any specific years that are mentioned. Some parts are designed for certain model years due to design tweaks and changes made by manufacturers. Ensuring that your tractor's year matches those listed can prevent compatibility issues.
Most part listings include a 'Fits Models' section. This list is invaluable for making sure you're selecting a part that will seamlessly integrate with your tractor.
If you’re unsure, consult a professional or a trusted dealer. They can offer expert advice and may even have access to cross-reference systems that can confirm part compatibility.
Before finalizing your order, double-check the model and year once more to ensure everything aligns. This simple step can save you from unnecessary hassle and return processes.
Following these steps will help you select the right parts the first time, ensuring your tractor remains in top working condition without unnecessary delays.
