Description

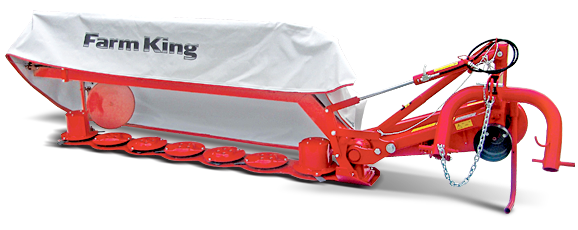

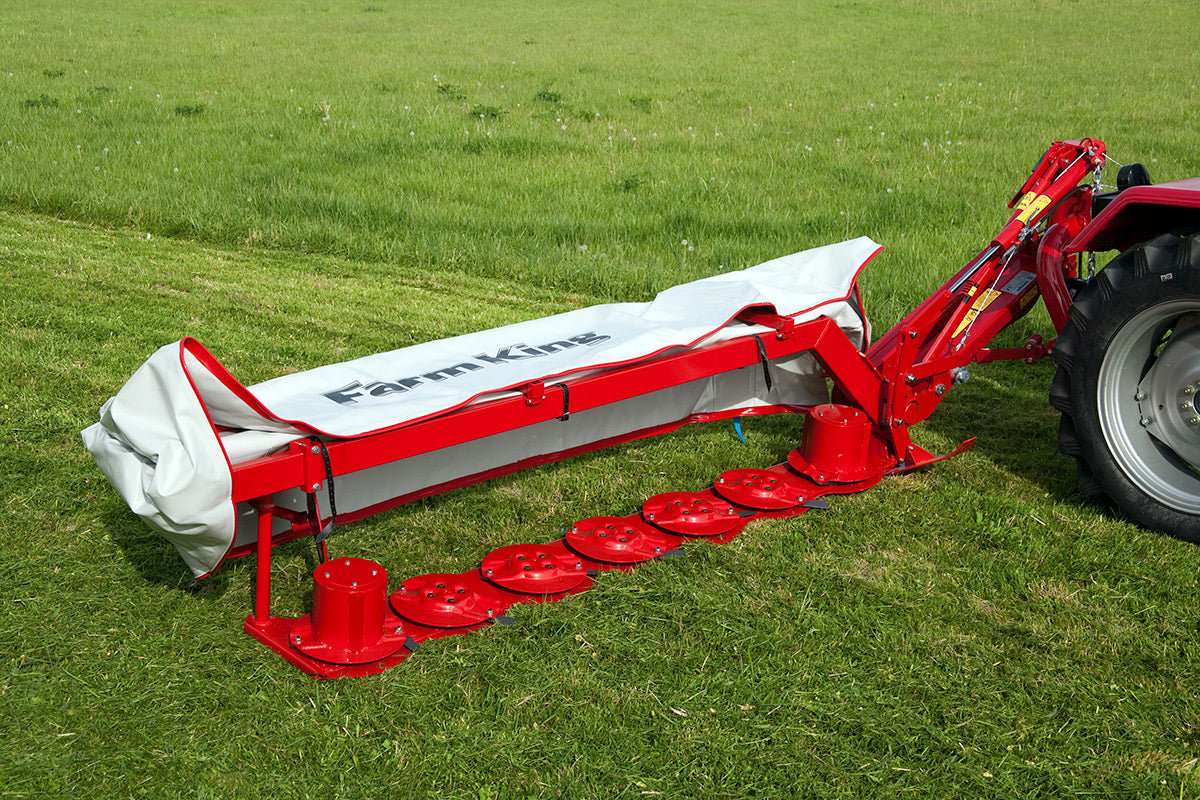

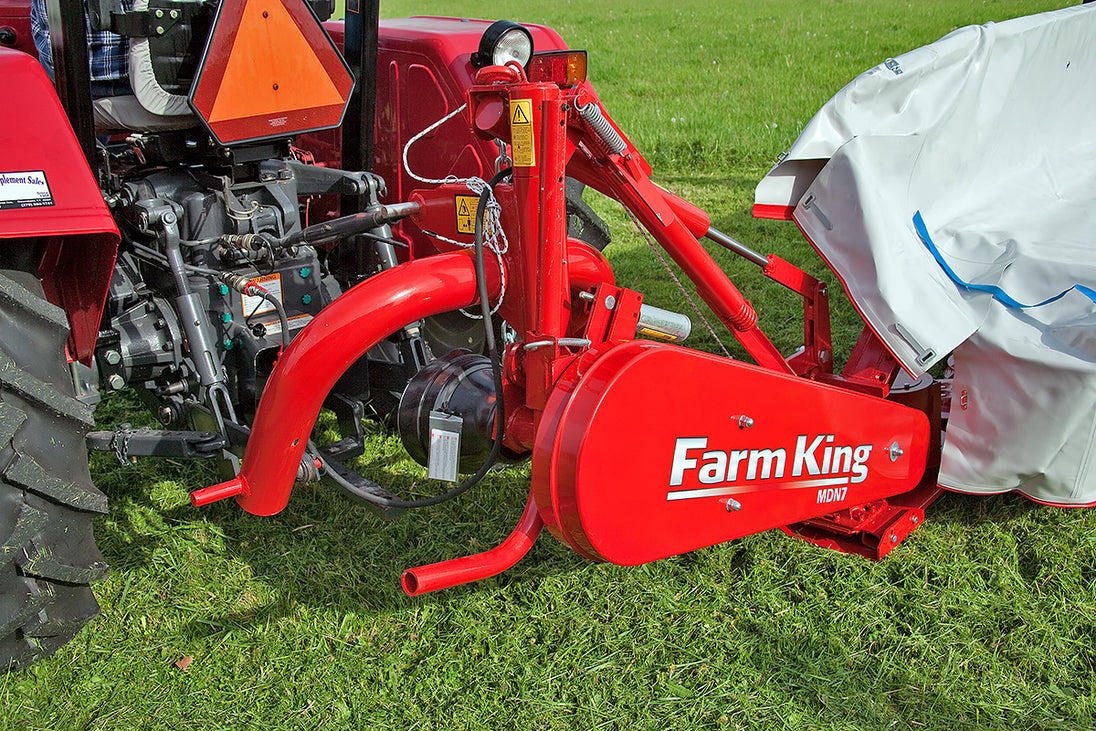

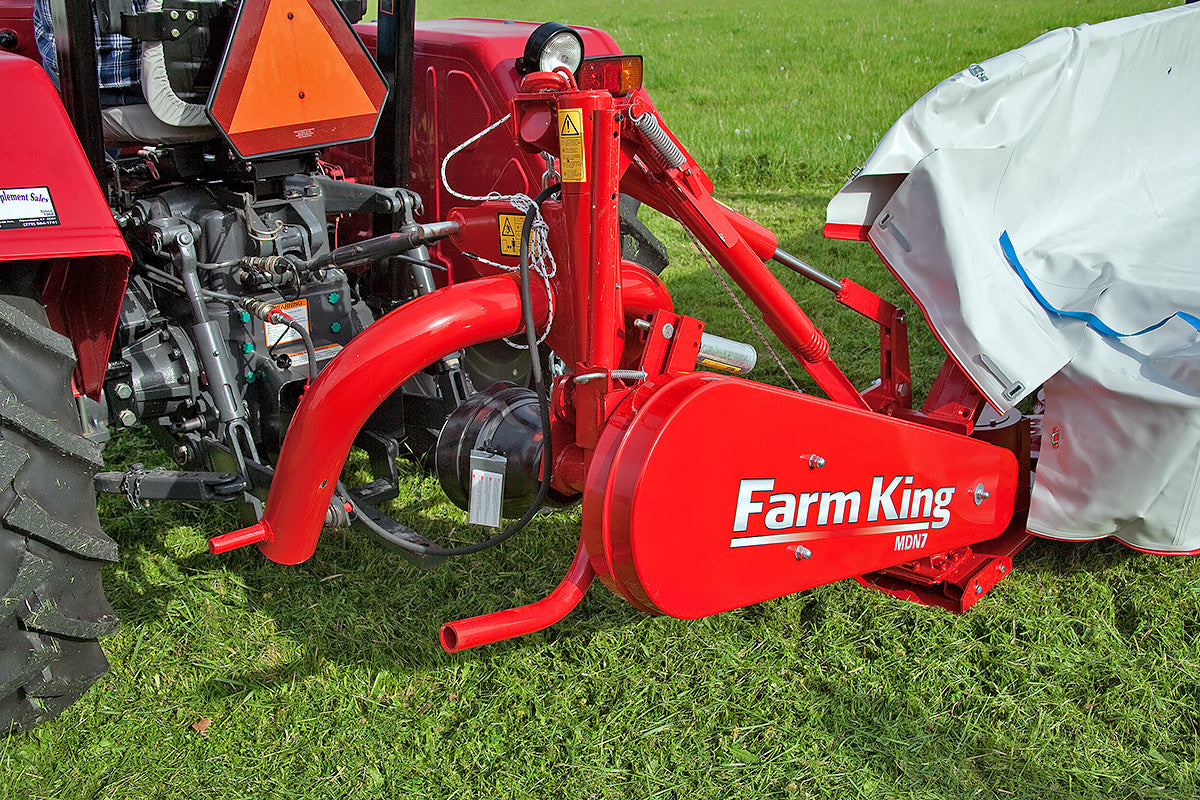

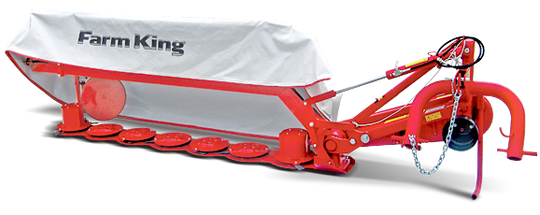

Farmking 9ft Disc Mower MDN7FK
The Farm King MDN 4, 5, 6 and 7 are constructed using only the highest-grade steel and gear components.
Cutting discs and blades are easily accessible by removing six bolts and the sturdy cover to reveal the inner workings of each disc assembly. Tractors ranging in horsepower from 40 to 50 can operate the three exclusive mower sizes with ease. Two cone discs are located on each end of the disc assembly to assist in swath formation and shaping.
| Model |
MDN4 |
MDN5 |
MDN6 |
MDN7 |
| Number of Discs/Blades |
4/8 |
5/10 |
6/12 |
7/14 |
| Working Width |
5' 5" (1.65 m) |
7' (2.10 m) |
8' 1" (2.45 m) |
9' 4" (2.85 m) |
| Blade Rotation Speed |
3000 RPM at 540 G' |
3000 RPM at 540 G' |
3000 RPM at 540 G' |
3000 RPM at 540 G' |
| 3-Point Hitch |
Cat. I / II |
Cat. I / II |
Cat. I / II |
Cat. I / II |
| PTO |
540 RPM |
540 RPM |
540 RPM |
540 RPM |
| Tractor Requirements |
35 hp (25 kW) |
40 hp (30 kW) |
45 hp (33 kW) |
50 hp (37 kW) |
| Weight |
903 lb (410 kg) |
992 lb (450 kg) |
1,058 lb (480 kg) |
1,124 lb (510 kg) |
