Description:

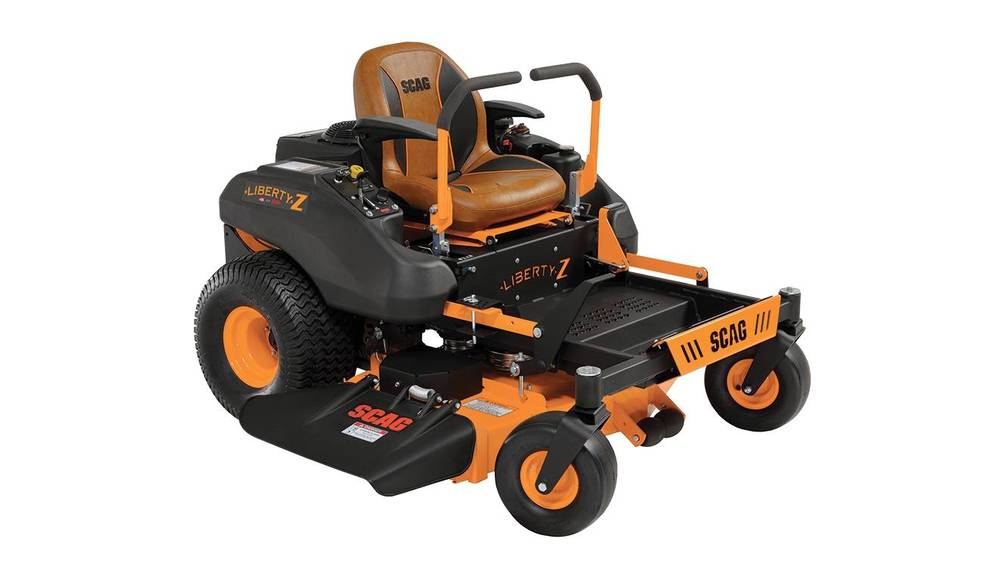

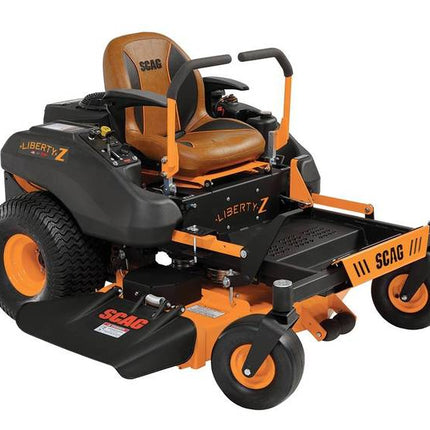

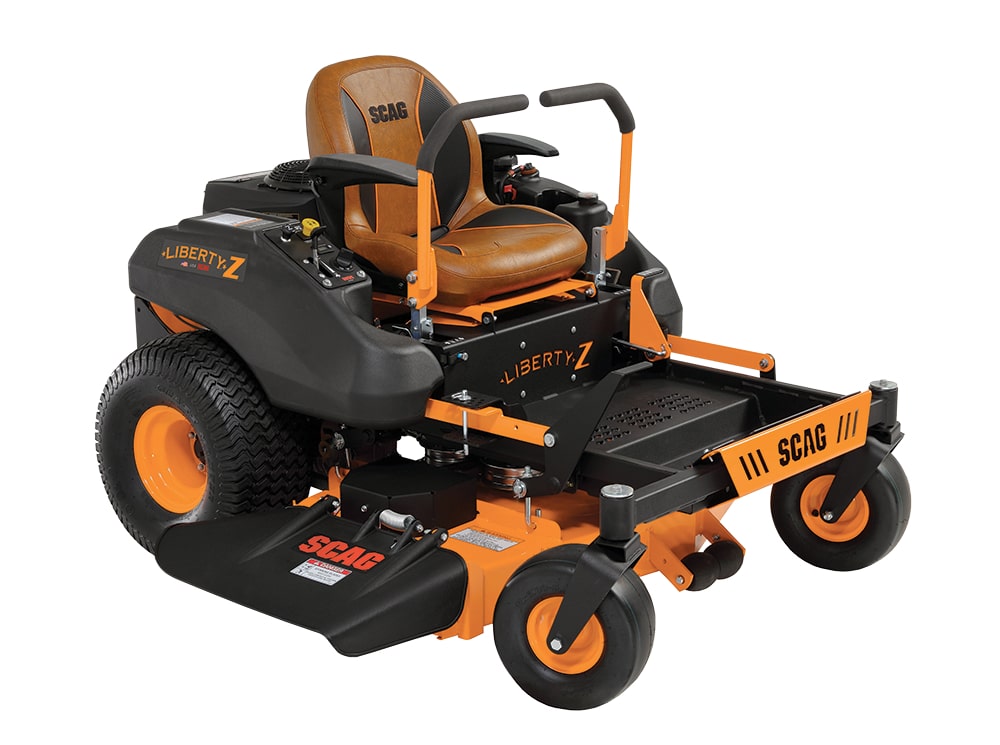

Because every home deserves stripes, the Liberty® Z is designed and manufactured to deliver a top-of-the-line experience at a homeowner price point. A professionally-constructed mower, fit for your own lawn. The Liberty Z gives more people the chance to see why Scag® machines are Simply the Best.
The Ogura GT1 PTO Clutch Brake provides excellent starting and stopping power for the cutter deck, 74 ft. lb. of holding strength, and an adjustable air gap for long life.
Engine:

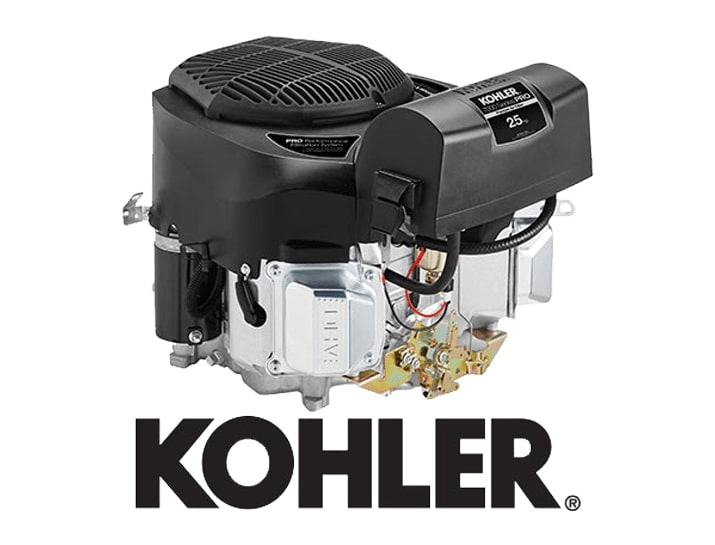

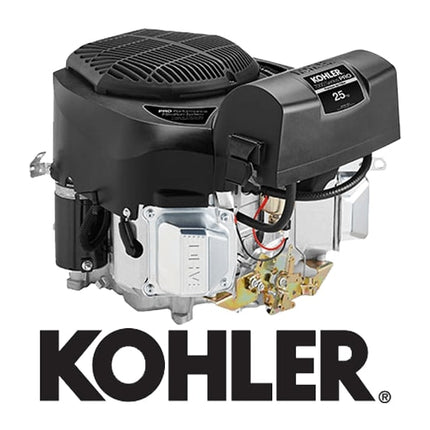

Experience tremendous power, productivity and added features with the Kohler® 7000 Series™ PRO engine, a winning combination of engine and machine. The 7000 Series has BIG displacement (up to 747 cc) for BIG horsepower (up to 26 hp) and torque (up to 42.4 ft lb peak) to get the grass cut fast and efficiently. The PRO Series features a larger air filter, a larger oil filter and a larger fuel filter.
Other features include:
- Engineered and assembled in the USA.
- Aluminum block with cast-iron cylinder liners.
- Industrial-grade air-filtration system ensures maximum protection of interior engine components.
- High-torque inertia-drive starter with extra-large output for quick, reliable starting.
- Consistent-Cut™ technology provides more consistent power to your deck, helping you get the perfect cut.
- Overhead valve design produces more power, improves fuel economy and cooling, and reduces oil consumption.
- Full-pressure oil-lubrication system with spin-on oil filter.
- Dual-seal air filter keeps debris out of the engine.
- Easy-access air filter allows for quick inspection and maintenance.
- Highlighted service points on the same side of the engine for more convenient servicing.
Specification:
Product: 61″ Liberty Z
Dimensions
-
Length: 73.5″
-
Width (Chute Down): 73.5″
-
Width (Chute in Transport Position): 62″
-
Height: 41″
-
Weight: 695 lb
General
-
Total Fuel Capacity: 5.5 gallons
-
Drive Tires: 20″ x 10″-10″
-
Caster Tires: 11″ x 6″-5″
-
Seat: Padded with armrests, adjustable forward and back (tools required)
Drive System
-
Type: Hydro-Gear ZT3100 Transaxle
-
Pumps: Internal Pump, 10 cc
-
Motors: Internal Motor, 16 cc
-
Forward Ground Speed: 7 mph
-
Reverse Ground Speed: 5 mph
-
Parking Brake: Hand lever
Deck
-
Cutting Width: 61″
-
Cutting Height: 1.5″ to 4.5″ in 0.25″ increments
-
Type: Heavy-Duty Hero Cutter Deck
-
Deck Lift: Foot-operated pedal
-
Construction: Dual-plate cutter deck constructed of 2 steel plates with reinforcement at spindle locations
-
Spindles: Aluminum housing with sealed ball bearings
-
Blade Engagement: Ogura GT2 (108 ft lb) with adjustable air-gap for extended life
