Find high-quality TYM tractor parts at Diamond R Equipment. We offer genuine replacement parts for all TYM tractor models, including filters, engines, hydraulics, and more. Fast shipping and excellent customer service! Keep your tractor running smoothly with the parts you trust.
If you can't find what you need here give us a call or email. We will gladly help you find what your looking for.
T574C TYM Tractor Technical Specification Engine Tractors Model T574 T574C T554 Engine manufacturer TYM T2300T2 TYM T2300T2 Yanmar 4TNV86CT Type Turbo Charger Turbo Charger Turbo Charger Engine power 55 hp | 41 kW 55 hp | 41 kW 55.9 hp | 41.1 kW PTO power 44.7 hp | 32.9 kW 44.7 hp | 32,9 kW 45.6 hp | 33.5 kW Rated engine speed 2600 rpm 2600 rpm 2800 rpm No. of cylinders 4 4 4 Displacement 139.5 cu. in. | 2286 cc 139.5 cu. in. | 2286 cc 127.6 cu. in. | 2091 cc Air cleaner Single dry Single dry Dual dry Alternator 12V, 70A 12V, 70A 12V, 70A Fuel system IDI IDI CRDI Hydraulic System Pump type Dual gear pump Dual gear pump Dual gear pump Implement flow 7.7 gpm | 29 L/min 7.7 gpm | 29 L/min 9.5 gpm | 35.7 L/min Steering flow 4.3 gpm | 17.8 L/min 4.3 gpm | 17.8 L/min 4.6 gpm | 17.3 L/min Total flow 11.9 gpm | 46.8 L/min 11.9 gpm | 46.8 L/min 14.1 gpm | 52.9 L/min Category, 3-point hitch I I I Hitch lift capacity 3822 lb | 1733 kg 3822 lb | 1733 kg 3314 lb | 1503 kg Hitch lift capacity at 24 inches behind link ends 3050.6 lb | 1387 kg 3050.6 lb | 1387 kg 2945 lb | 1336 kg Lift control type Position/Draft Position/Draft Position/Draft No. of standard remote valves 2 2 2 Powertrain Transmission type Synchro-shuttle Synchro-shuttle Synchro-Shuttle No. of speeds F8 x R8 F8 x R8 F16 x R16 Max. traveling speed 18.6 mph | 30.0 km/h 18.6 mph | 30.0 km/h 18.4 mph | 29.7 km/h Brakes Wet disc Wet disc Wet disc Steering Hydrostatic Hydrostatic Hydrostatic Clutch Dry single plate Dry single plate Dry single plate PTO PTO type Independent Independent Independent PTO control Electric/Hydro Electric/Hydro Electric/Hydro PTO rear 540 rpm 540 rpm 540 rpm Capacities Fuel tank 17.0 gal | 60 L 17.0 gal | 60 L 17.0 gal | 60 L Coolant 6.9 qt | 6.5 L 6.9 qt | 6.5 L 9 qt | 8.5 L Crankcase 6.8 qt | 6.4 L 6.8 qt | 6.4 L 7.1 qt | 6.7 L Transmission/Hydraulics system 9.2 gal | 34.8 L 9.2 gal | 34.8 L 9.2 gal | 34.8 L Front axle 10.5 qt | 9.9 L 10.5 qt | 9.9 L 10.5 qt | 9.9 L Dimensions & Weights Overall length with 3-point hitch 141.3 in. | 3590 mm 141.3 in. | 3590 mm 141.3 in. | 3590 mm Overall width 63.8 in. | 1620 mm 63.8 in. | 1620 mm 63.8 in. | 1620 mm Wheelbase 76.2 in. | 1935 mm 76.2 in. | 1935 mm 76.2 in. | 1935 mm Height to top of ROPS 141.3 in. | 3590 mm - 102.1 in. | 2594 mm Height to top of cabin - 98 in. | 2490 mm - Min. ground clearance 13.8 in. | 350 mm 13.8 in. | 350 mm 13.8 in. | 350 mm Min. turn radius with brakes 121.2 in. | 3080 mm 121.2 in. | 3080 mm 131.9 in. | 3352 mm Min. turn radius without brakes 131.5 in. | 3340 mm 131.5 in. | 3340 mm 150.4 in. | 3820 mm Weight with ROPS 3887 lb | 1763 kg - 3814 lb | 1730 kg Weight with cab - 4233 lb | 1920 kg - Standard Tires R1 Agricultural - Front Farm Specialist 9.5-16 NHS TL 6PR Farm Specialist 9.5-16 NHS TL 6PR Farm Specialist 9.5-16 NHS TL 6PR R1 Agricultural - Rear Farm Specialist 13.6-26 NHS TL 6PR Farm Specialist 13.6-26 NHS TL 6PR Farm Specialist 13.6-26 NHS TL 6PR R3 Turf - Front Multi-Trac CS 27x10.50-15 NHS TL 4PR Multi-Trac CS 27x10.50-15 NHS TL 4PR Multi-Trac CS 27x10.50-15 NHS TL 4PR R3 Turf - Rear Multi-Trac CS 44x18.00-20 NHS TL 4PR Multi-Trac CS 44x18.00-20 NHS TL 4PR Multi-Trac CS 44x18.00-20 NHS TL 4PR R4 Industrial - Front Trac Chief 12-16.5 NHS TL 6PR Trac Chief 12-16.5 NHS TL 6PR Trac Chief 12-16.5 NHS TL 6PR R4 Industrial - Rear Xtra Grip 17.5Lx24 NHS TL 6PR Xtra Grip 17.5Lx24 NHS TL 6PR Xtra Grip 17.5L-24 NHS TL 6PR Download Technical Brochure Technical Brochure Technical Brochure
TYM BY75 Backhoe The BY75 complements the power and strength of the Series 2 compact tractors, enhancing performance and versatility without compromising safety. Specifications: Digging Depth: 2,317 mm | 91.2 in. Loading Height: 2,286 mm | 90 in. Backhoe Reach: 3,140 mm | 123.6 in. Width Weight Height Length 0 Inch 0 Gram 0 Inch 0 Inch
TYM T494 Compact Tractors Take on tough jobs in tight spaces with the T494. This tractor seamlessly combines the top features of our compact and utility ranges, balancing high power output with exceptional maneuverability for outstanding results every time. Specifications: Engine Manufacturer: TYM T2300N2 (T494) Engine Power: T494: 48.3 hp | 36 kW T494C: 55 hp | 41 kW Rated Engine Speed: 2600 rpm Displacement: (Specific displacement not listed but consistent with power specs) PTO Rear: 540 rpm Fuel Tank Capacity: 17.0 gal | 60 L Dimensions and Capacity Overall Length with 3-Point Hitch: 141.3 in. | 3590 mm Overall Width: 63.8 in. | 1620 mm Wheelbase: 76.2 in. | 1935 mm Minimum Ground Clearance: 13.8 in. | 350 mm Weights Weight with ROPS: T494: 3871 lb | 1756 kg T494C: 3887 lb | 1763 kg Weight with Cab: T494C: 4198 lb | 1904 kg Width Weight Height Length
TYM T474HC Tractor The exterior of the TYM T474HC Tractor/Loader/Backhoe demonstrates a sleek and rugged design with features to minimize operator effort. From sturdier cast iron linkages to an easy to operate hydrostatic controls, this tractor is engineered for productivity inside and out. Powerful features to drive tractor performance Leverage a range of features to complete a variety of jobs, quickly and effectively. Available with a foldable ROPS or heated cabin, this compact tractor keep operators comfortable to take on challenges in warm or cold weather see the Cab model T474HC. Good clearance from the ground and overhead allows drivers to take on uneven terrain easily, whether in a barn, in wooded areas under tree cover, or inside greenhouses. Equipped with high engine efficiency, impressive lift capabilities and foldable ROPS, this tractor has the capabilities to perform light-to-medium duty jobs, all year round. Features: TYM T474HC Tractor/Loader/Backhoe Hydrostat (3-Range) Transmission 4-cylinder Kukje diesel engine with high output – Equipped with a powerful, Tier-4 certified 4-cylinder engine, this tractor has an output comparable to utility tractors while maintaining the dimensions of a sub-compact tractor. The durable body and efficient engine come together to perform medium duty applications efficiently and productively. Easy to open hood for convenient maintenance – The tractor hood can be opened in one motion, providing easy access to the engine and other systems for daily checks, routine service and maintenance. The side panel can also be removed easily without the need for specialized tools. External lever to adjust rear implements – In addition to the in-cabin controls, this tractor has an external position lever near the 3-point hitch. This allows operators to adjust an implement position as soon as it is connected, without needing to go to the cabin. This enables quick and convenient switching between implements, enhancing tractor versatility. 3-point hitch with powerful lift capacity – The 3-point linkage on the rear has an impressive lift capacity that reaches the end ball joints. The rear PTO control can be used to adjust rpm based on the task, increasing it for more intensive applications like slashing and digging. Controls to speed up, slow down, raise or lower implements – Even while the tractor is in motion, a dedicated PTO lever can be used to speed up or slow down implement rpm, while the dial can raise and lower implements at the prescribed speed. High capacity fuel tank to support time intensive work – The high capacity fuel tank allows drivers to take on jobs for longer periods without stopping for fuel. This is in addition to the engine, which promotes fuel-efficient operation and increases the time before a refuel. Specifications: TYM T474HC Tractor/Loader/Backhoe General Tractor Specs Transmission: Hydrostat Drive System 4 Wheel Drive Steering Hydrostatic Brake Wet Disc Gross Engine Power 48.3 hp PTO power 31.8 hp 3-Pt Lift 2646# Front End Loader Lift capacity at pivot point (max. height): 2152# Engine Engine manufacturer: Kukje, A2300N2 Type: Natural Aspiration Gross engine power: 48.3 hp PTO power: 31.8 hp Rated engine speed: 2600 rpm Number of cylinders: 4 Displacement: 139.5 cu. in. Air cleaner: Dual Dry Alternator: 12V, 70A Fuel system: Indirect Injection Powertrain Transmission type: 3-Range Hydrostat Max. traveling speed: 18.4 mph Brakes: Wet Disc Steering: Hydrostatic Hydraulic System Pump type: Dual Gear Pump Implement flow: 7.7 gpm Steering flow: 4.3 gpm Total flow: 11.9 gpm 3-point hitch: Cat I Hitch lift capacity: 2646# Hitch lift capacity at 24″ behind link ends: 1764# Lift control type: Position w/External Lever No. of standard remote valves: 1 Standard + 1 Optional PTO PTO type: Independent PTO control: Electric/Hydro PTO: Rear 540 rpm Capacities Fuel tank: 9.0 gal Coolant: 6.9 qt Crankcase: 6.8 qt Transmission/Hydraulics system: 8.5 gal Front axle: 8.6 qt Standard Tires R1 Agricultural – Front Farm Specialist 7-16 NHS TL 6PR R1 Agricultural – Rear Farm Specialist 11.2-24 NHS TL 6PR R3 Turf – Front Multi-Trac CS 27×8.50-15 NHS TL 4PR R3 Turf – Rear Multi-Trac CS 41×14.00-20 NHS TL 4PR R4 Industrial – Front Trac Chief 10-16.50 NHS TL 6PR R4 Industrial – Rear Xtra Grip 43×16.00-20 NHS TL 6PR Dimensions & Weights Length w/3ph, Cabin: 133″ Overall width, Cabin: 59.0″ Height to Cabin Cabin Roof: 92.5 Wheelbase: 68.9 in. Min. ground clearance: 12.8 in. Minimum turn radius with brakes: 106.7 in. Min. turn radius without brakes: 117.5 in. Weight with ROPS: 3,660# Width Weight Height Length 59 Inch 3660 Pounds 92.5 Inch 133 Inch

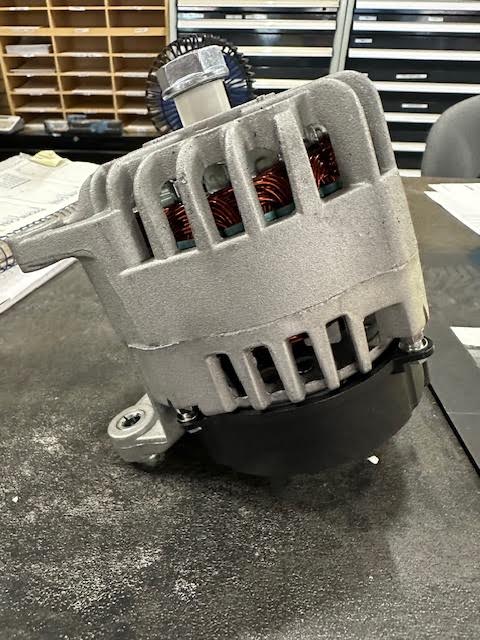

NEW ALTERNATOR PART# 185046500 FITS TYM TRACTORS: T433, T503, T553 (If item is out of stock please call, email or text for availability and current pricing.)
Mahindra / Branson / TYM / Mitsubishi Packing Body Part # 31A3502300 Fits: 2015, 2415, 2615, 2816, 2516, 2216, 3016, Max 22, Max 25, Max 28, Max 24, Max 26, 1526, 1626 (If item is out of stock please call, email or text for availability and current pricing.)

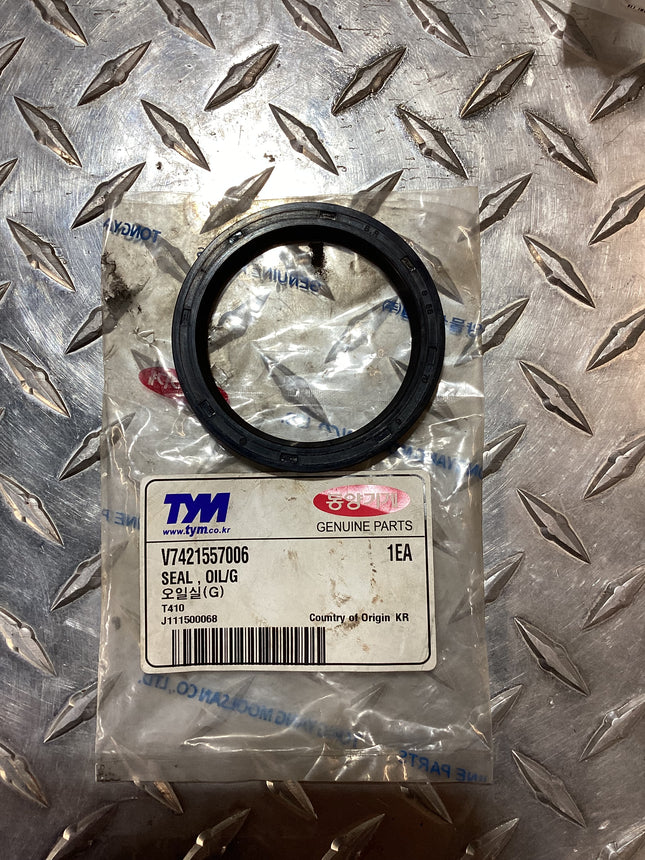

Mahindra / TYM Oil Seal G55706 Part # V7421557006 Fits Models: 3510, 4110 (If item is out of stock please call, email or text for availability and current pricing.)

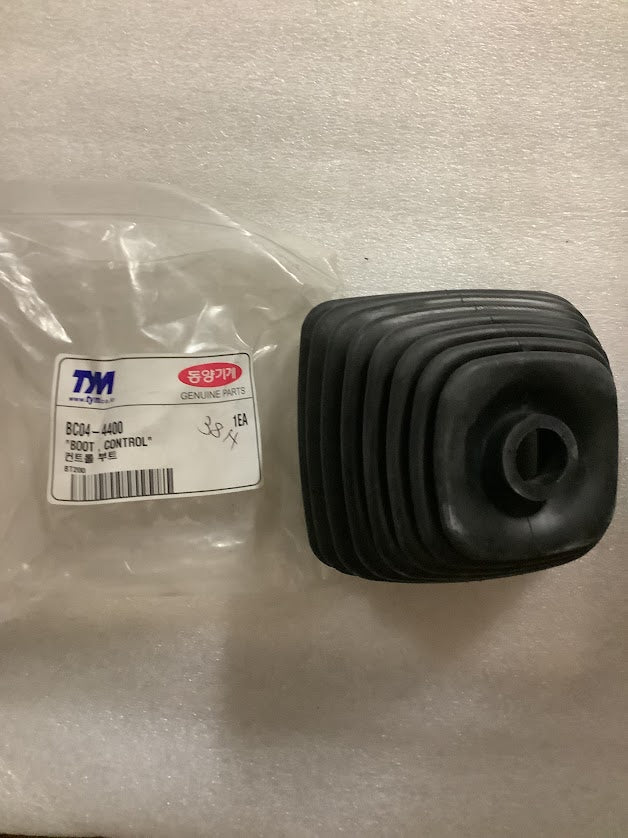

TYM, JOYSTICK BOOT CONTROL PART# BC04-4400

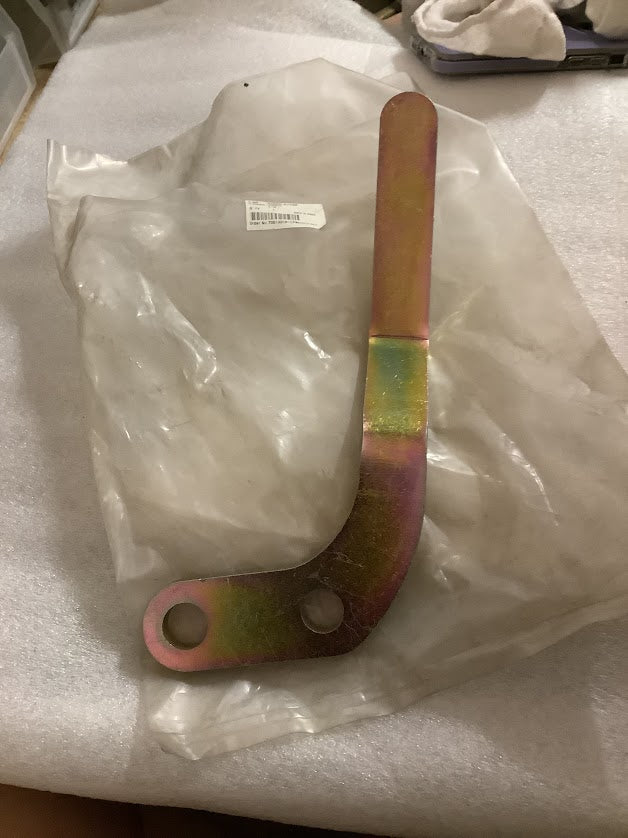

TYM HANDLE, LH PART# KLD2042232

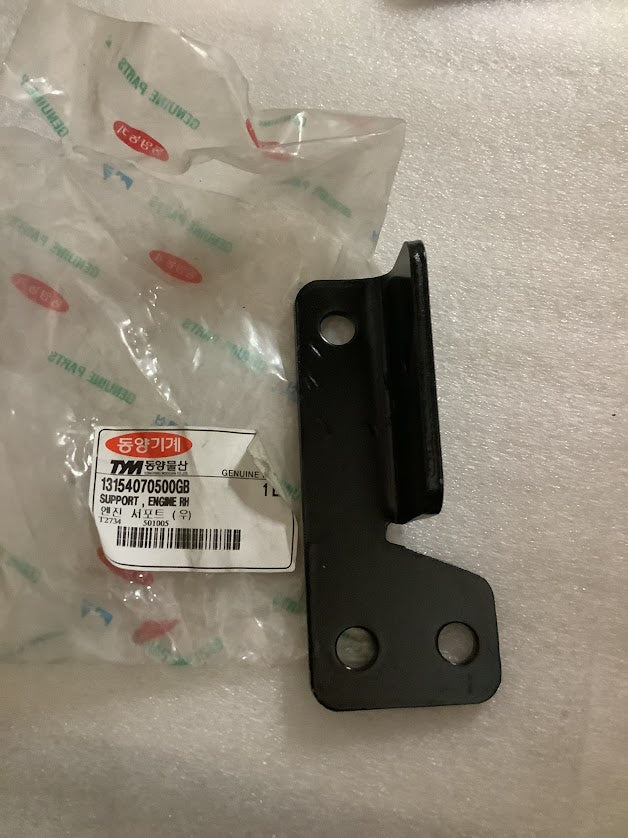

TYM TRACTOR SUPPORT ENGINE RH PART # 13154070500GB FITS T233, T273 (If item is out of stock please call, email or text for availability and current pricing.)

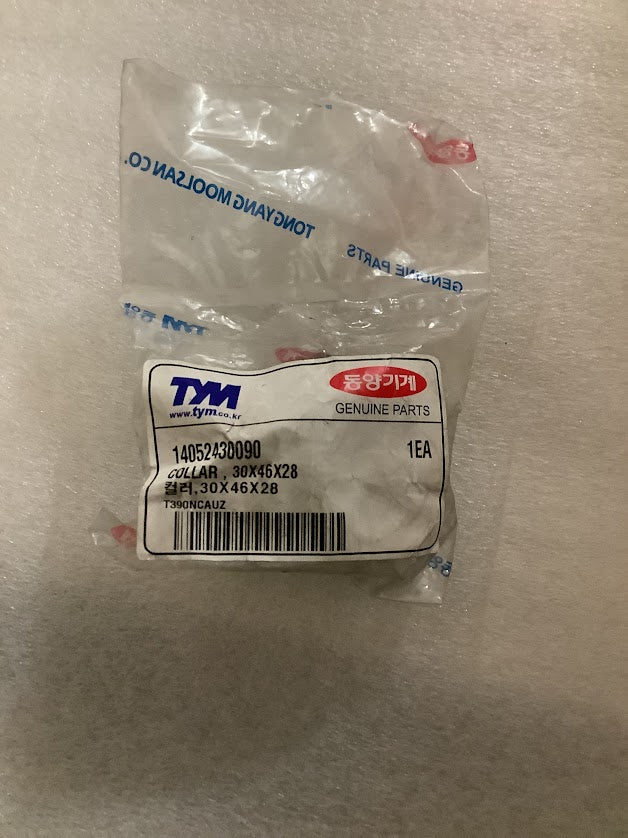

TYM OR MAHINDRA COLLAR COLLAR 30X46X28 (If item is out of stock please call, email or text for availability and current pricing.)

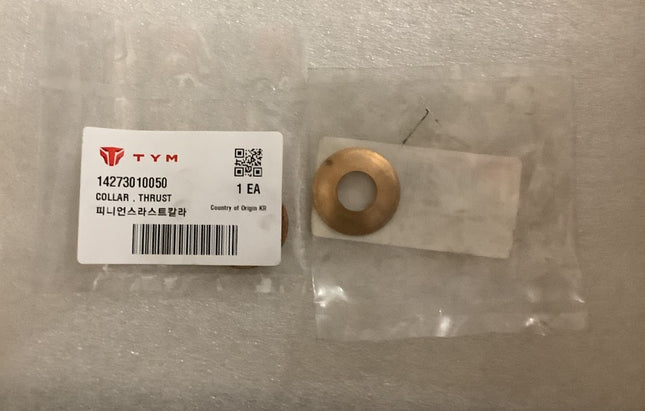

TYM OR MAHINDRA THRUST COLLAR PART# 14273010050 (If item is out of stock please call, email or text for availability and current pricing.)
When it comes to finding parts for specific tractor models, you've got a range of options to ensure your equipment runs smoothly. Here's a detailed list of the models for which parts are readily available:
This lineup ensures that whether you're dealing with compact utility tasks or demanding agricultural operations, there are parts available to keep any of these models up and running efficiently.
When it comes to ordering the right tractor parts, compatibility with your specific model and year is crucial. Here's how you can make the right choice:
Start by carefully identifying the model of your tractor. Look for parts that include a detailed list of compatible tractor models. This information is usually clearly stated to help you determine if a part will fit your machine.
Pay close attention to any specific years that are mentioned. Some parts are designed for certain model years due to design tweaks and changes made by manufacturers. Ensuring that your tractor's year matches those listed can prevent compatibility issues.
Most part listings include a 'Fits Models' section. This list is invaluable for making sure you're selecting a part that will seamlessly integrate with your tractor.
If you’re unsure, consult a professional or a trusted dealer. They can offer expert advice and may even have access to cross-reference systems that can confirm part compatibility.
Before finalizing your order, double-check the model and year once more to ensure everything aligns. This simple step can save you from unnecessary hassle and return processes.
Following these steps will help you select the right parts the first time, ensuring your tractor remains in top working condition without unnecessary delays.
