Diamond R Equipment

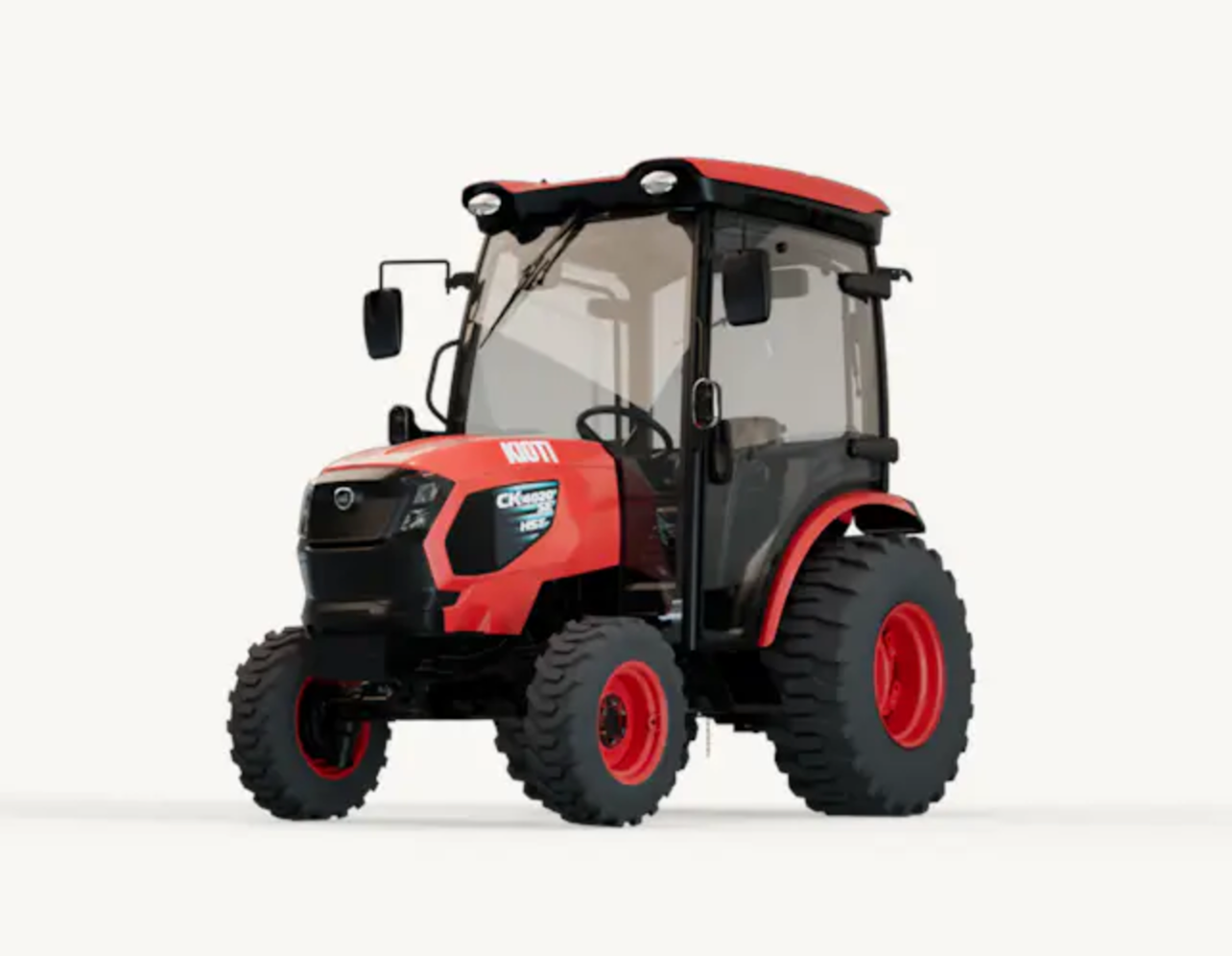

Kioti CK3520SEH Cab

Product Description

Feature	Specification
Engine	3‑cyl diesel, model 3H‑TM4B
Gross Power	34.90 hp / 26 kW
Displacement	111.40 cu in (1,826 cc)
Rated RPM	2,600 rpm
Fuel Capacity	9.0 gal / 34 L
Transmission	Hydrostatic (HST), 3 ranges with infinite speed
Drive Type	4WD with hydrostatic power steering
Hydraulic Pump Flow	11.30 gpm (42.90 L/min)
3‑Point Hitch Lift Capacity	1,631 lb (740 kg), Category I, position control
PTO	Independent rear PTO – 540 rpm; optional mid PTO 2,000 rpm
Speed (HST)	Forward: up to ~14.88 mph; Reverse: up to ~16.76 mph
Ground Clearance	13.4 in (340 mm)
Dimensions (L × W × H)	~120.9″ × 54.5″ × 92.52″ (3,070 mm × 1,385 mm × 2,350 mm)
Weight	~3,397 lb (1,541 kg)
Cab Features	Full-size factory cab with heat & A/C, tilt steering, telescoping rear hitch, auto‑manual PTO, premium seat, rubber floor mat
