Diamond R Equipment

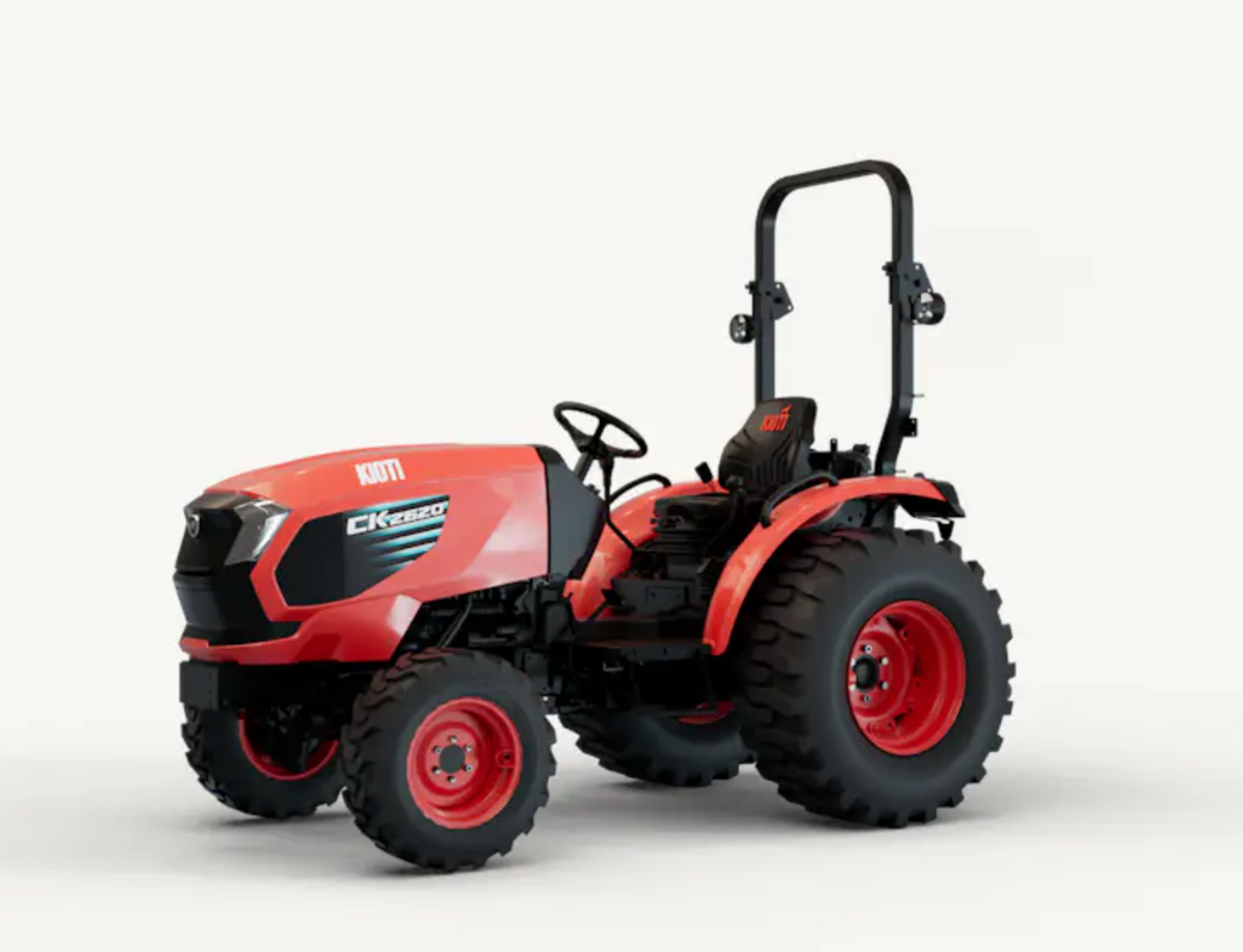

Kioti CK3520H

Product Description

Feature	Specification
Engine	Kioti 3‑cyl liquid-cooled diesel, model 3H‑TM4A
Gross Power	34.9 hp (26 kW)
Displacement	111.4 cu in (1,826 cc)
Fuel Capacity	9.0 gal / 34 L
Transmission	Hydrostatic (HST) – 3 ranges with infinite speed
Drive	4WD
Hydraulic Pump Flow	11.70 gpm (44.40 L/min), gear pump
3‑Point Hitch Lift Capacity	1,631 lb (740 kg), Category
PTO	Live rear PTO, 540 rpm
Ground Clearance	13.4 in (340 mm)
Dimensions (L × W × H)	120.90″ × 54.50″ × 92.90″
Weight	~2,734 lb (1,240 kg)
Max Travel Speed	Forward: up to ~14.90 mph, Reverse: up to ~10.40 mph
