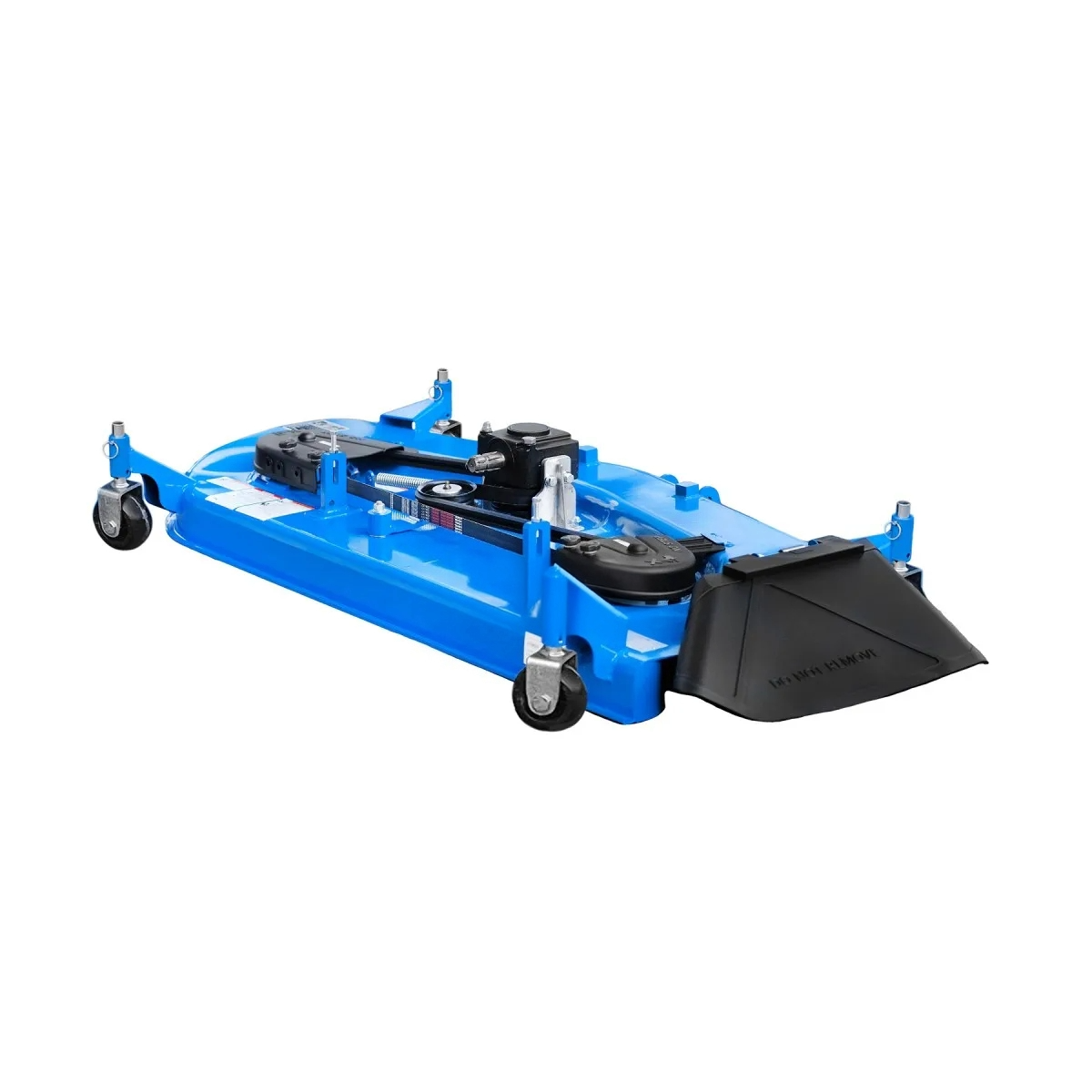

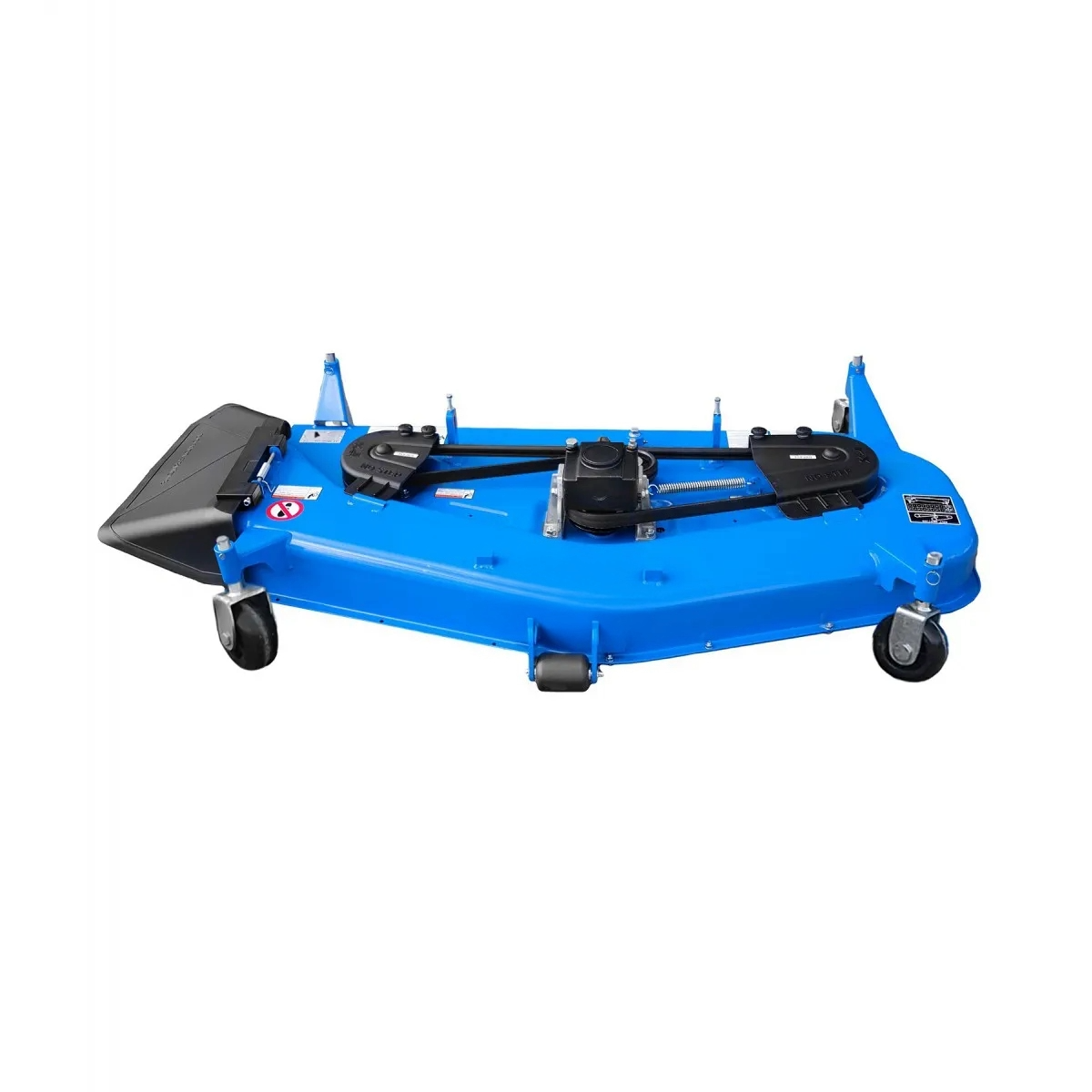

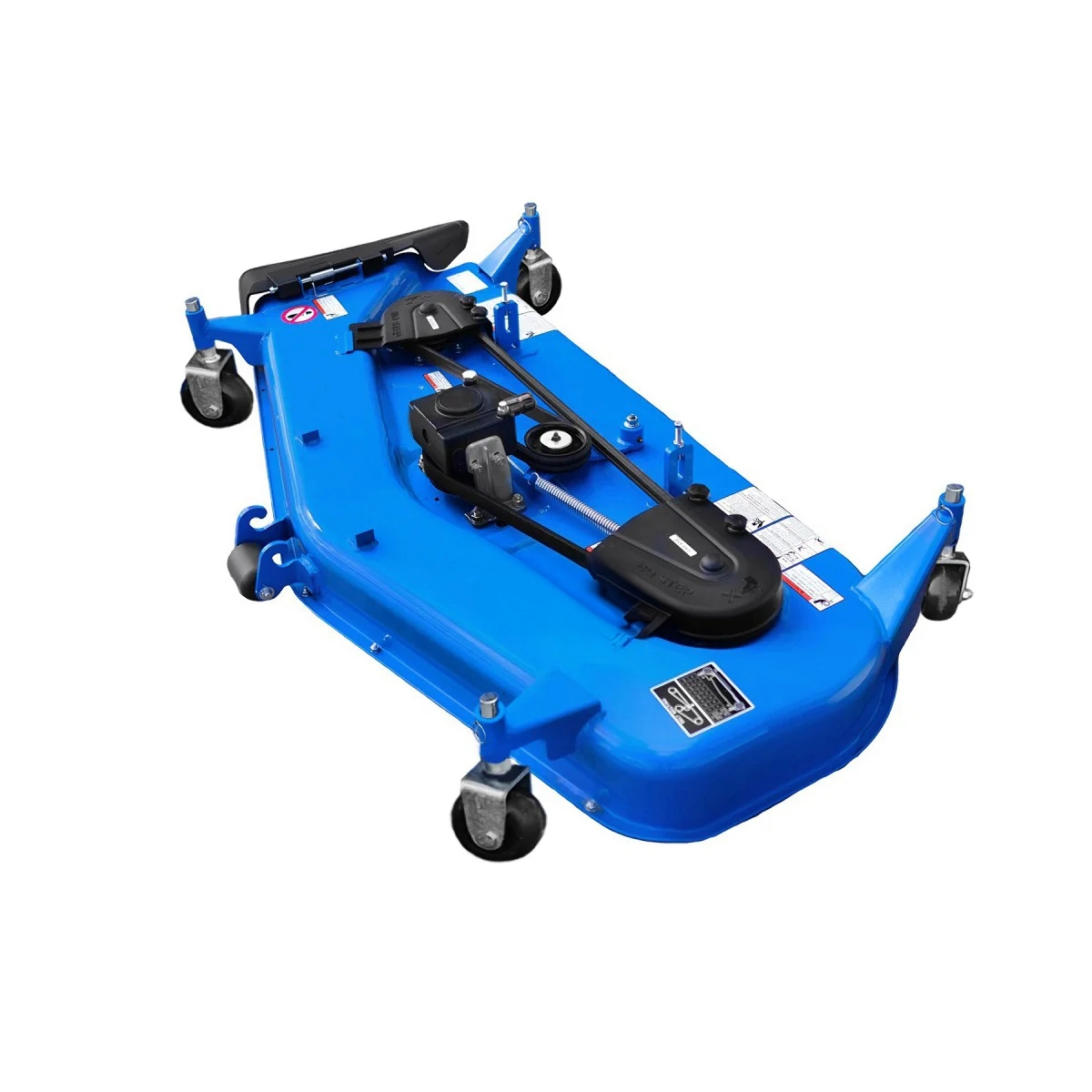

LS LM1054A Mid Mount Mower

$1,200.00
LS LM1054A Mid Mount Mower LS LM1054A Mid Mount Mower LS LM1054A Mid Mount Mower
LS LM1054A Mid Mount Mower
LS LM1054A Mid Mount Mower
LS LM1054A Mid Mount Mower
GET A QUOTE GET FINANCED CONTACT US

Feature Specification
Discharge Type Side discharge
Cutting Width 54 in (137 cm)
Cutting Height Range 1 – 4 in (2.5 – 10 cm)
Height Adjustment Dial control
Gear Type Spiral bevel gear
Max Spindle Speed ~3,135 RPM
Max Blade Tip Speed ~256 ft/s
Number of Blades 3
Deck Thickness 0.126 in (~3.2 mm)
Overall Width (w/o linkage) ~70.6 in (179 cm)
Length (w/o linkage) ~38.3 in (97 cm)
Height (w/o linkage) ~10.1 in (26 cm)
Weight (approx.) ~253.5 lb (115 kg)
Drive Type U-joint & double V-belt
Mounting Method 3-point linkage (Category I)
Attachment / Detach Type Side loading
Compatible Tractors LS MT122, LS MT125
