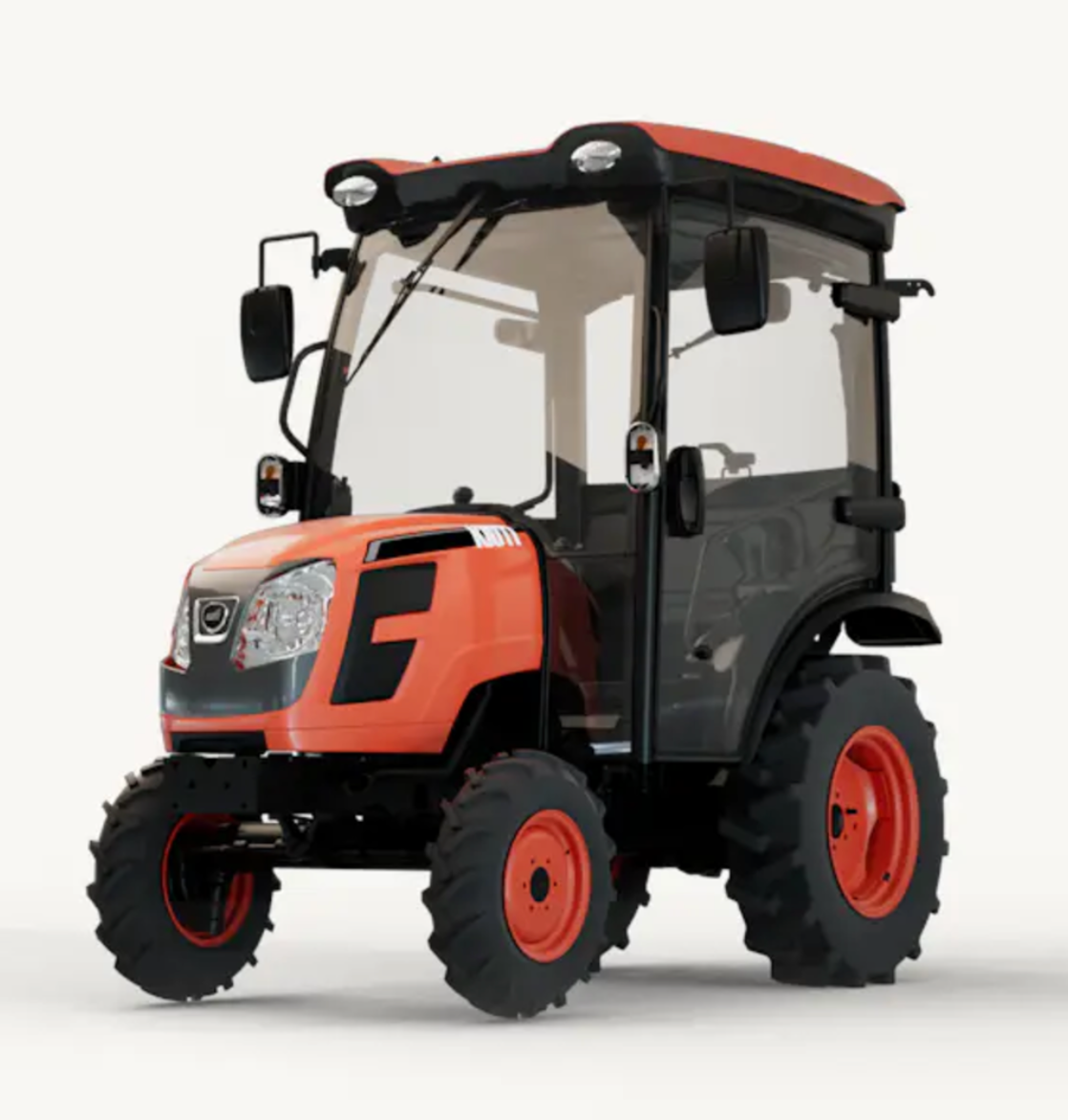

Kioti CS2530H Cab

Product Description

Feature	Specification
Engine	Kioti 3-cylinder, liquid-cooled diesel, model 3L123
Gross Power	24.50 hp (18.30 kW)
Displacement	1,233 cc / ~75.2 cu in
Fuel Capacity	6.6 gal / 25.5 L
Transmission	Hydrostatic (HST), 2-range (Hi / Lo)
Drive Type	4-wheel drive with differential lock
Hydraulic System	Open-center pump; ~7 gpm (26.4 L/min)
3-Point Hitch Lift Capacity	~700 lb (318 kg), Category I 3-point hitch
PTO	Independent rear PTO (540 rpm); mid PTO @ ~2,200 rpm
Dimensions (L × W × H)	102.90″ × 48.30″ × 82.60″
Weight	2,233 lb (1,013 kg)
