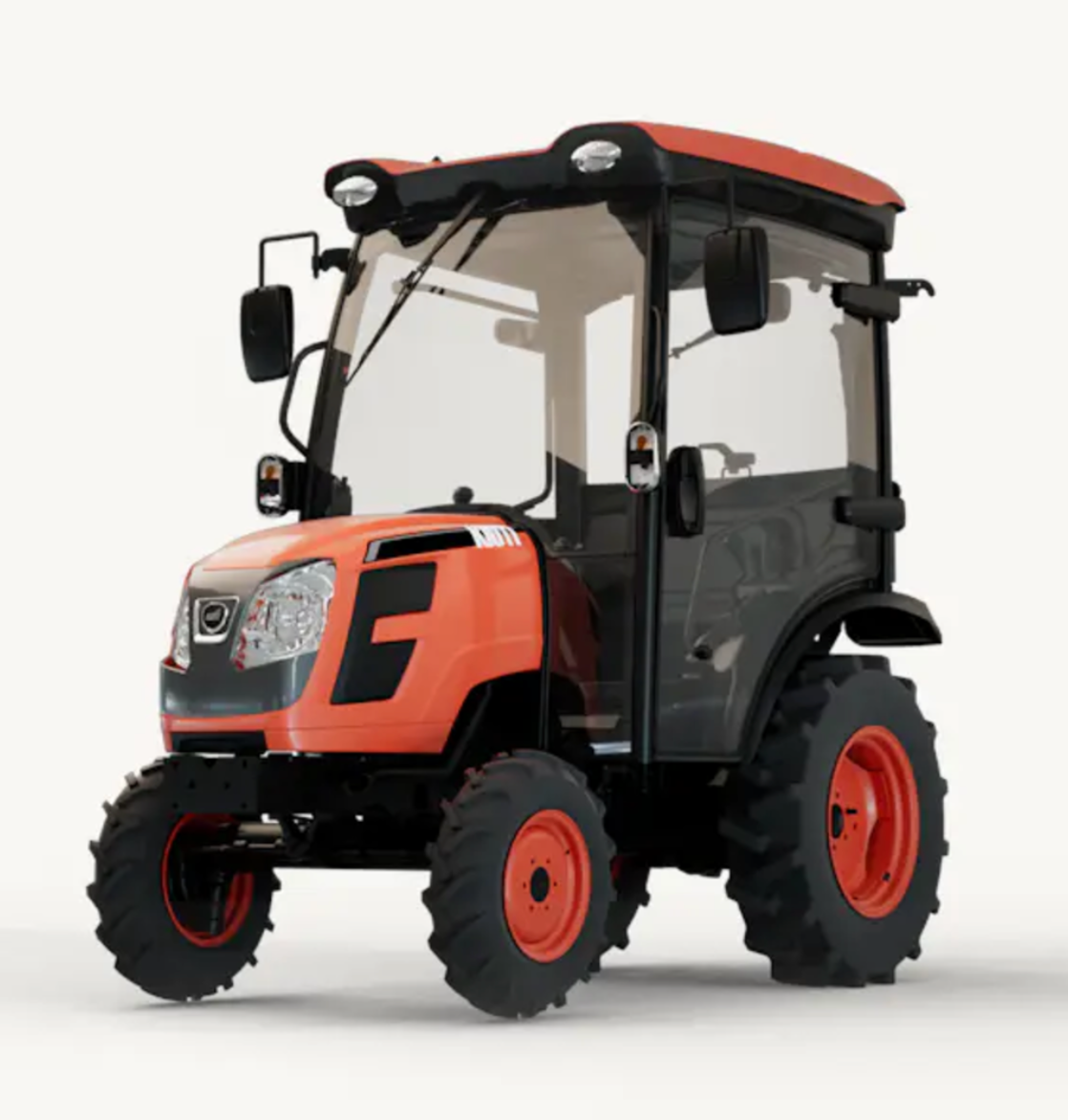

Kioti CS2520H

Product Description

Feature	Specification
Engine	3-cyl, liquid-cooled diesel (model 3C100LFH-U2)
Gross Power	24.5 hp (18.3 kW)
Displacement	1,007 cc / 61.5 cu in
Fuel Capacity	6.70 gal (25.5 L)
Transmission	Hydrostatic (HST), 2-range (Hi / Lo)
Drive Type	4WD with standard differential lock
Hydraulics (Pump Flow)	≈ 7 gpm (26.4 L/min) gear pump
3-Point Hitch Lift Capacity	700 lb (318 kg), Category
PTO	Independent rear PTO @ 540 rpm; mid PTO @ ~2,200 rpm
Travel Speeds (HST)	Forward up to ~9.57 mph / Reverse up to ~6.60 mph
Dimensions (L × W × H)	~99.3″ × 45.9″ × 88″
Weight	~1,554 lb (705 kg)
