Diamond R Equipment

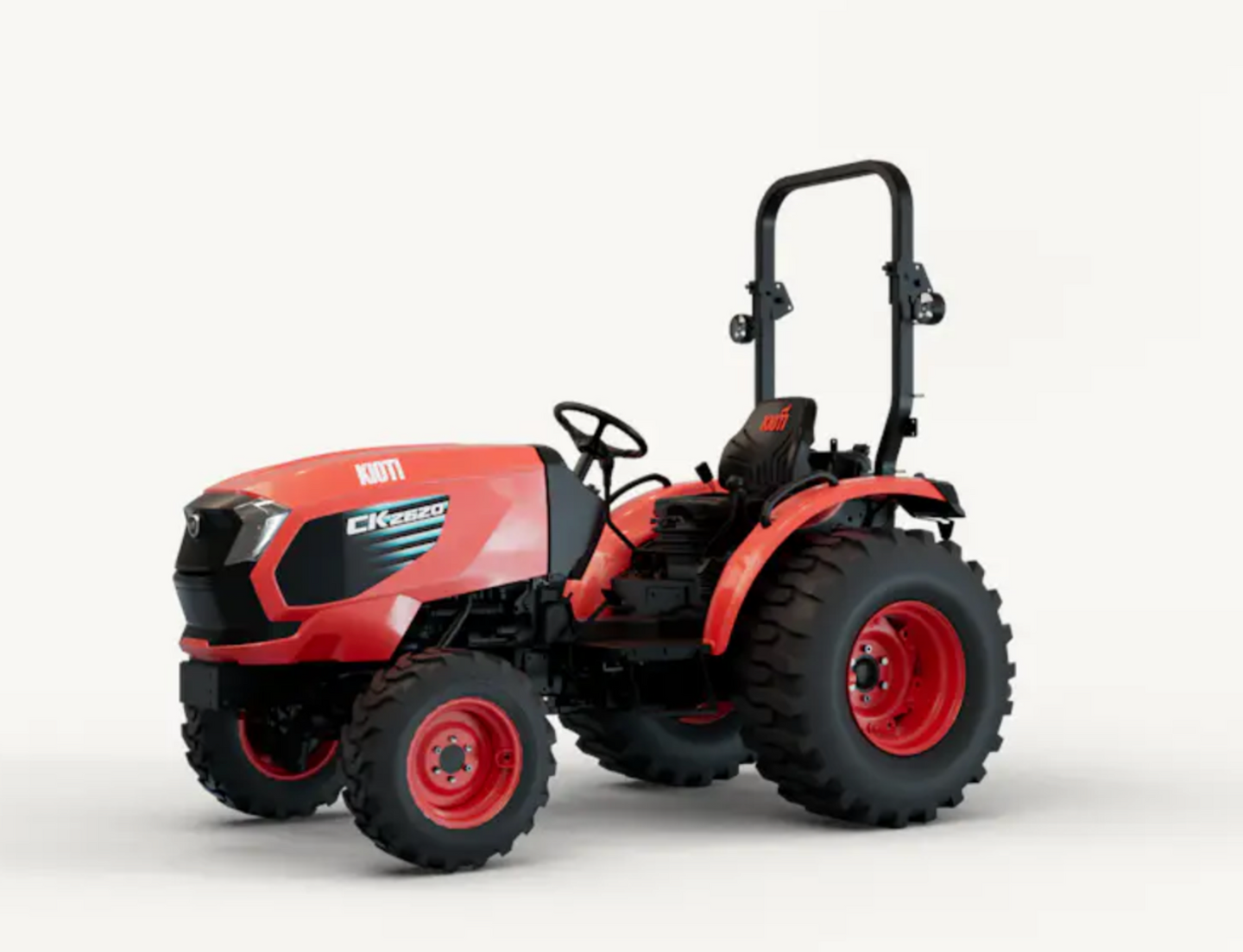

Kioti CK3520SE

Product Description

Feature	Specification
Engine	3‑cyl, Daedong diesel, 3H‑TM4B
Gross Power	34.9 hp / 26 kW
Displacement	1,826 cc (111.4 cu in)
Rated Speed	~2,600 rpm
Fuel Capacity	9 gal (34 L)
Transmission	Synchro‑Shuttle, 12F × 12R
Drive Type	4WD with power steering
Hydraulics / Pump Flow	Gear pump, 11.30 gpm (42.9 L/min)
3‑Point Hitch Lift Capacity	~1,631 lb (740 kg), Category
PTO	Independent rear PTO (540 rpm); optional mid PTO ~2,000 rpm
Ground Clearance	~13.4 in (340 mm)
Dimensions (L × W × H)	120.9 in × 54.5 in × 92.9 in
Weight	~2,906 lb (1,318 kg)
