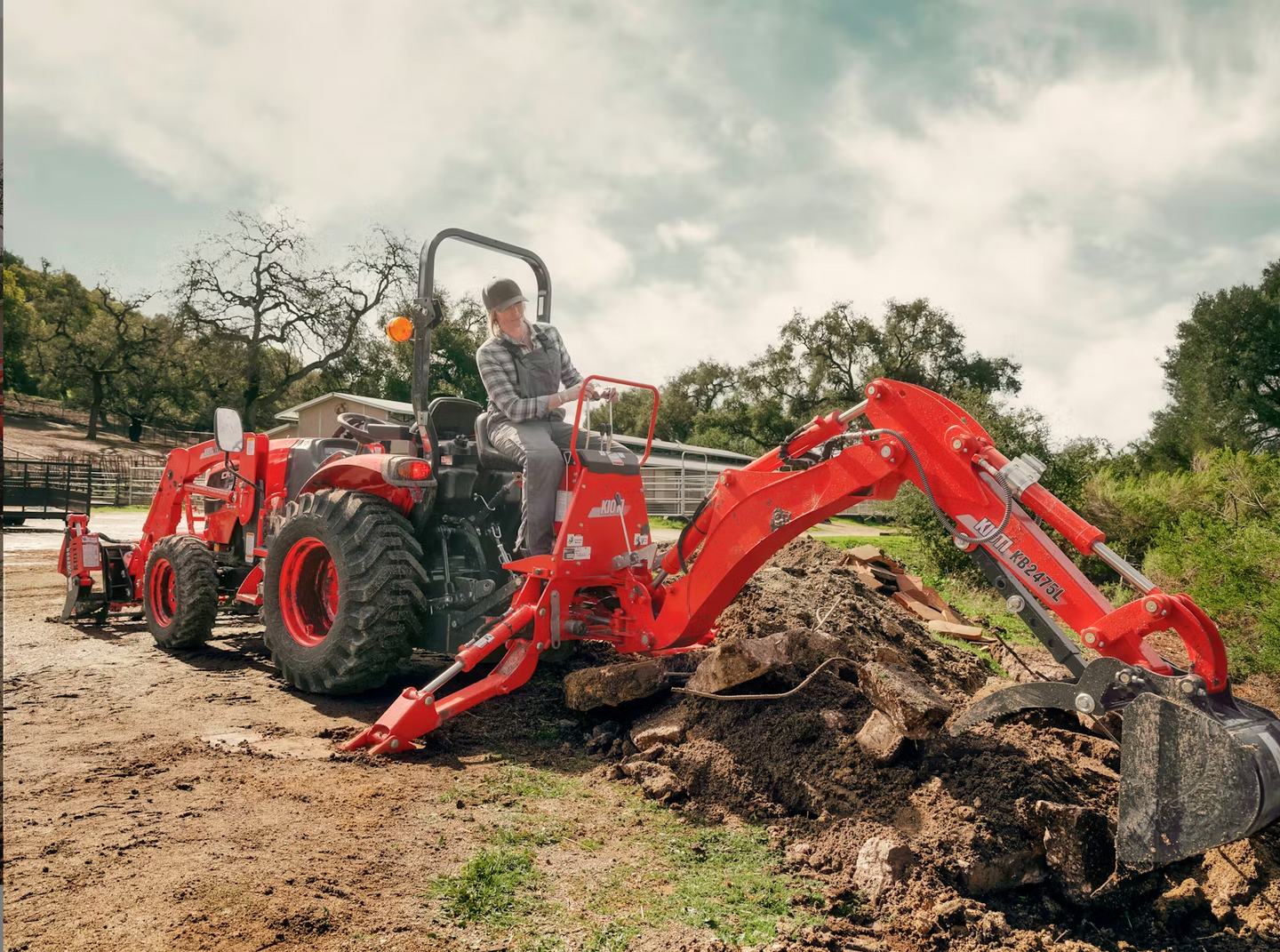

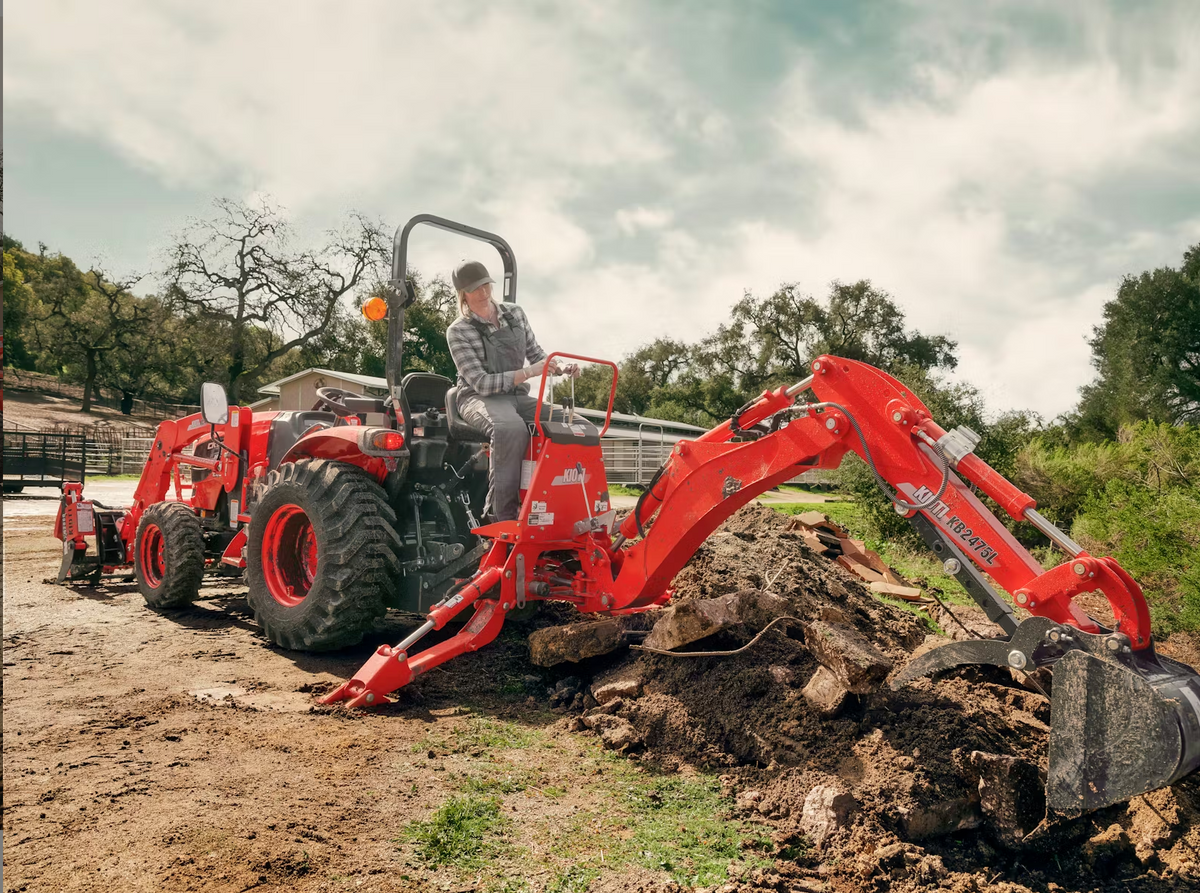

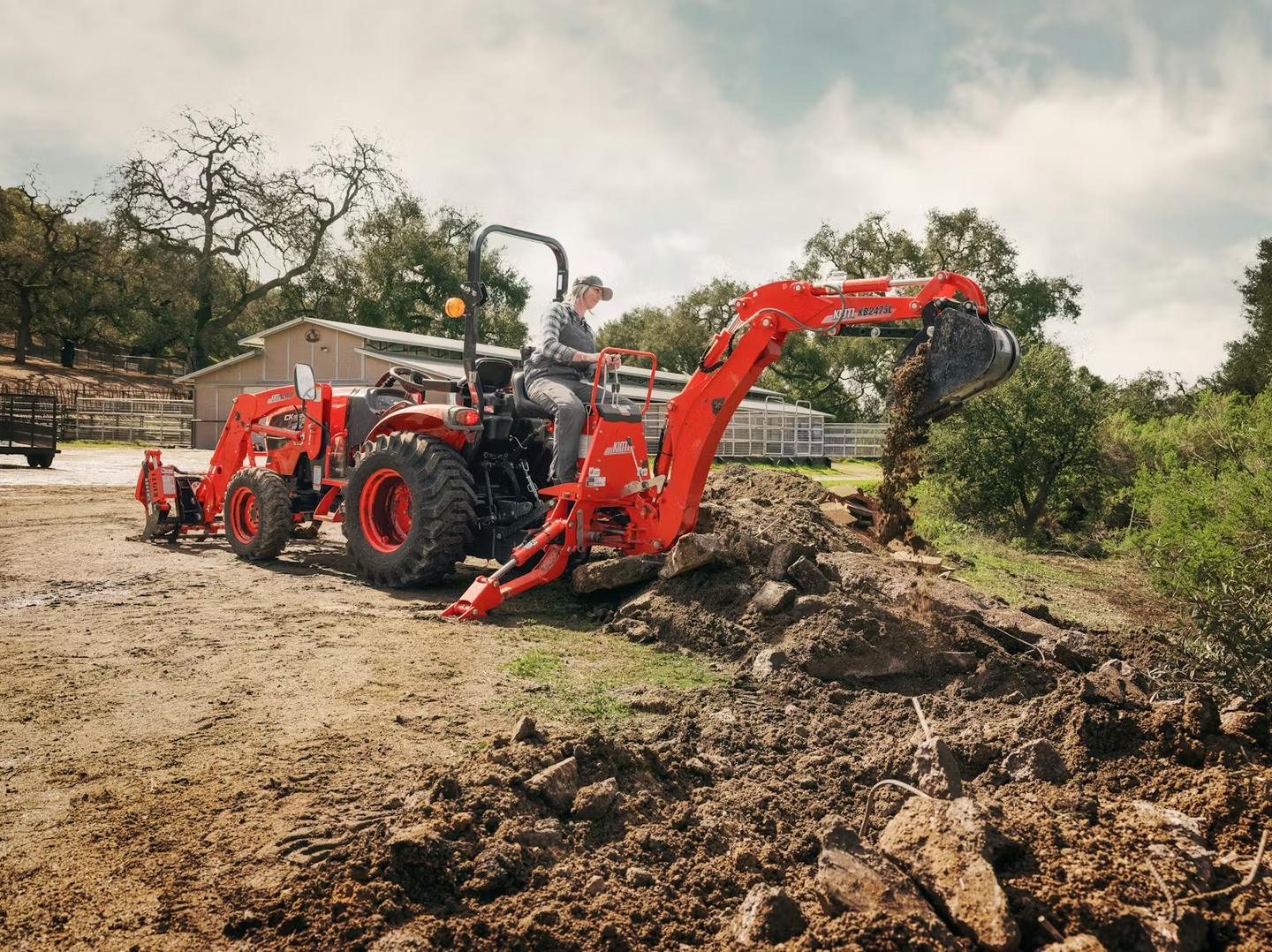

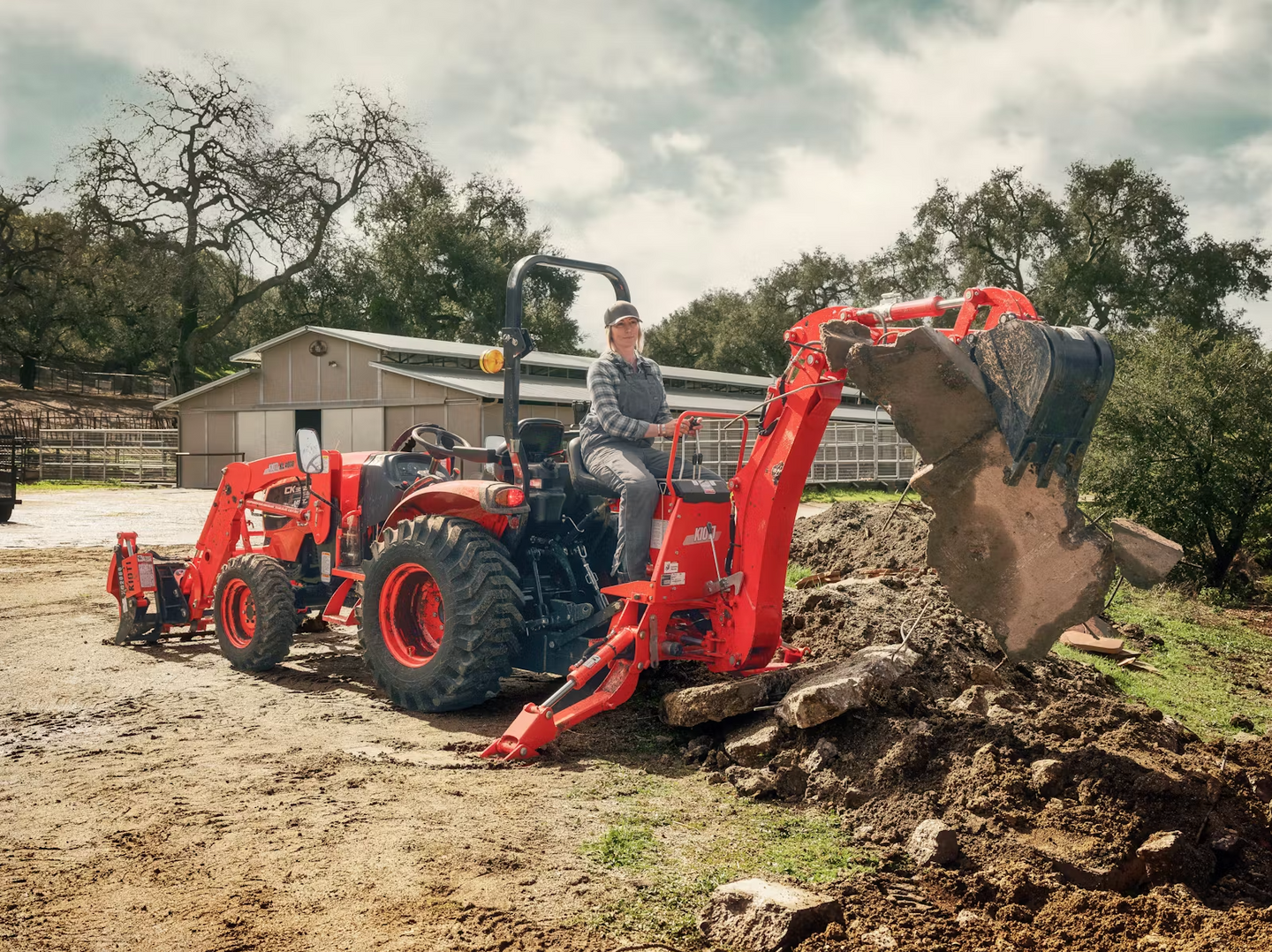

Kioti CK3520

Product Description

Feature	Specification
Engine	Daedong 3-cyl diesel, model 3H-TM4A
Gross Power	34.9 hp / 26.0 kW
Displacement	111.4 cu in (1,826 cc)
Fuel Capacity	9.0 gal (34 L)
Transmission	9F / 3R manual, dry dual-stage shuttle
Drive Type	4WD with wet disc brakes and power steering
Hydraulic Pump Flow	11.73 gpm (44.4 L/min), open-centre system
3-Point Hitch Lift Capacity	~1,631 lb (740 kg), Category I, position control
PTO	Live rear PTO (540 rpm); optional mid PTO @ 2,000 rpm
Ground Clearance	~13.4 in (340 mm)
Dimensions (L × W × H)	~120.9″ × 54.5″ × 92.9″
Weight	~2,679 lb (1,215 kg)
