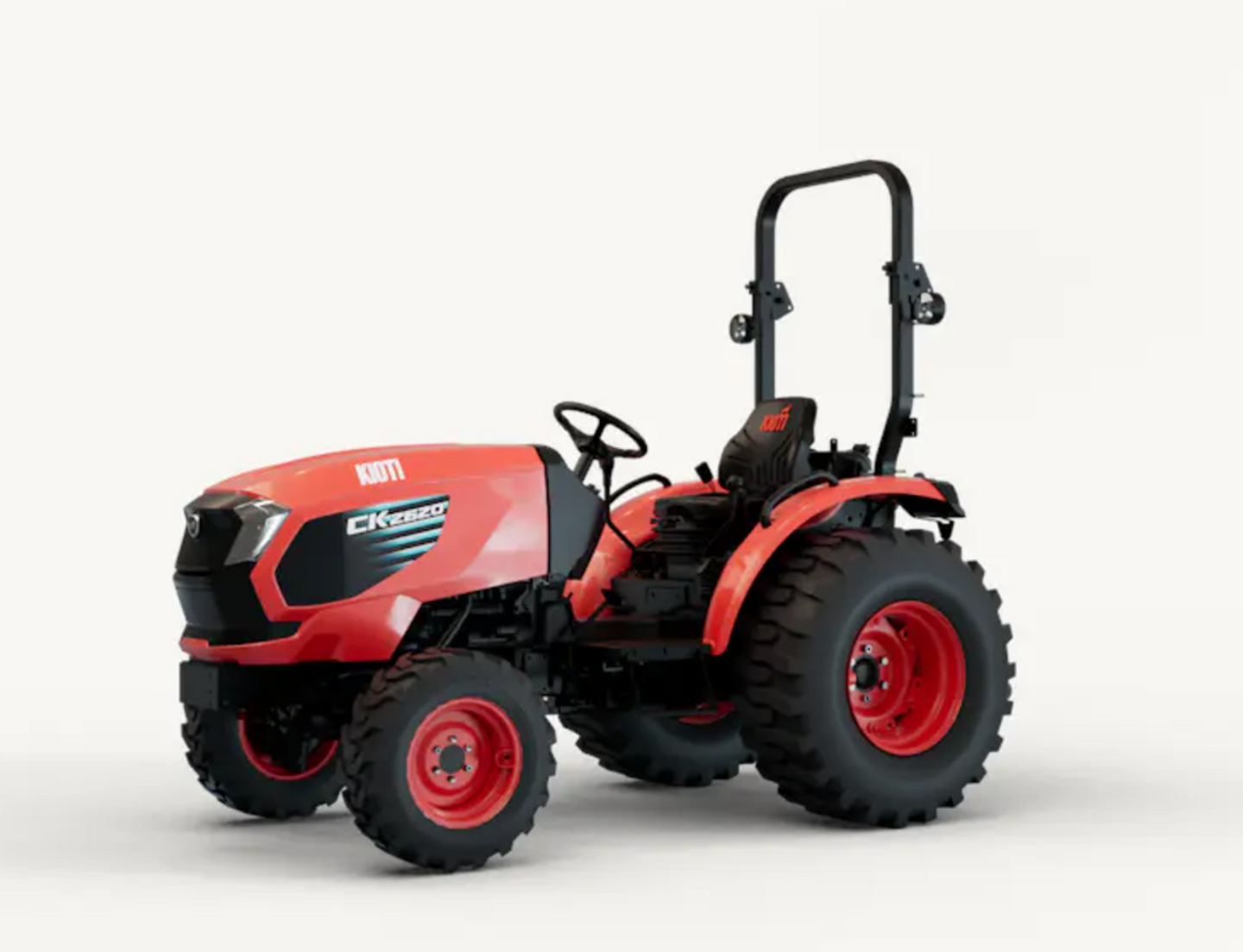

Kioti CK2620

Product Description

Feature	Specification
Engine	3-cylinder, 1,647 cc (100.5 cu in) diesel
Gross Power	24.5 hp (18.2 kW)
Fuel Capacity	9.0 gallons (34 L)
Transmission	Manual 9F / 3R (dry dual stage)
Drive Type	4WD with power steering
Pump Flow (Hydraulics)	11.70 gpm (44.4 L/min), gear pump
3-Point Hitch Lift Capacity	1,631 lb (740 kg), Category I, position control
PTO	Live rear PTO, 540 rpm
Ground Clearance	13.4 in (340 mm)
Dimensions (L × W × H)	~120.9″ × 54.5″ × 92.9″ (3,070 mm × 1,385 mm × 2,360 mm)
Weight (Operating)	~2,634 lb (1,195 kg)
