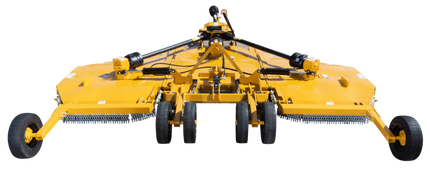

Flex Wing Brush Cutter 15', Bush Whacker MD180

Description

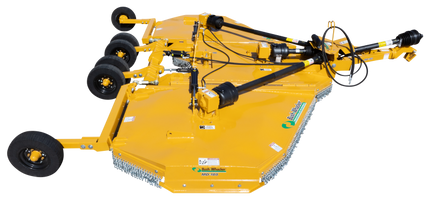

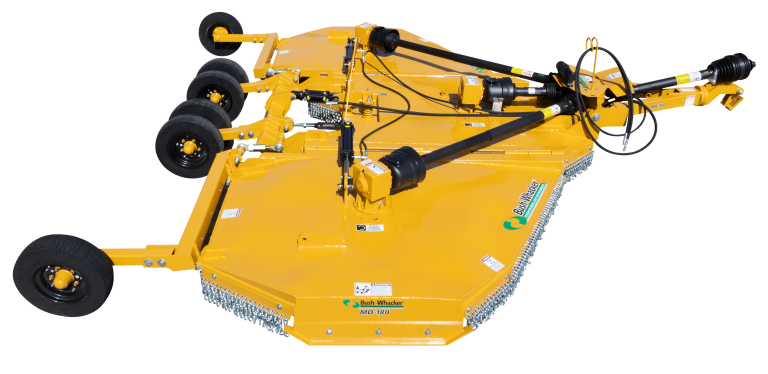

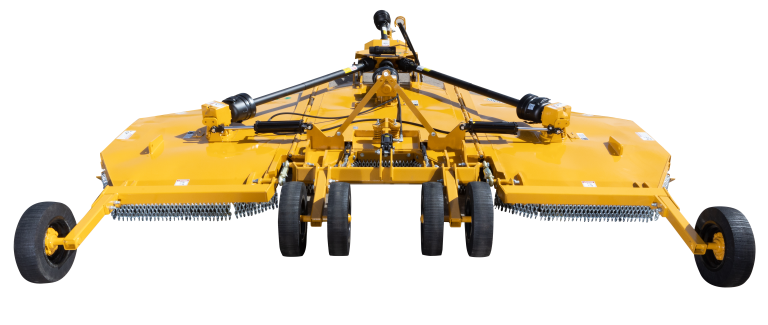

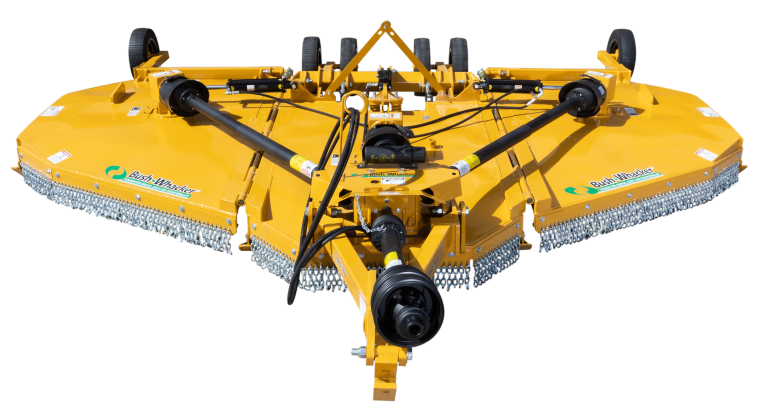

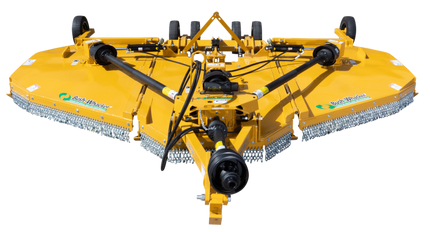

Flex Wing Brush Cutter 15', Bush Whacker MD180

This easy to clean flex-wing brush cutter is one of the most sturdy medium duty cutters on the market today. It comes with a smooth-top design at a great price and is perfect for mowing grass and weeds up to 3″ in diameter. With deck-rings included as standard equipment, the MD-180 is a great bargain.

  • Structural frame of the mower is 3″ channel, 1/4″ thick.

  • Heavy-duty 3/8″ side skirt with full-length skid shoes.

  • Deck Rings are a standard option for this unit.

  • Hinges – Structural tubing with grease fittings.

  • 4-bolt mounting on gearboxes – bolt-heads are tack-welded to bottom of deck so one person can tighten the nuts or change the gearbox.

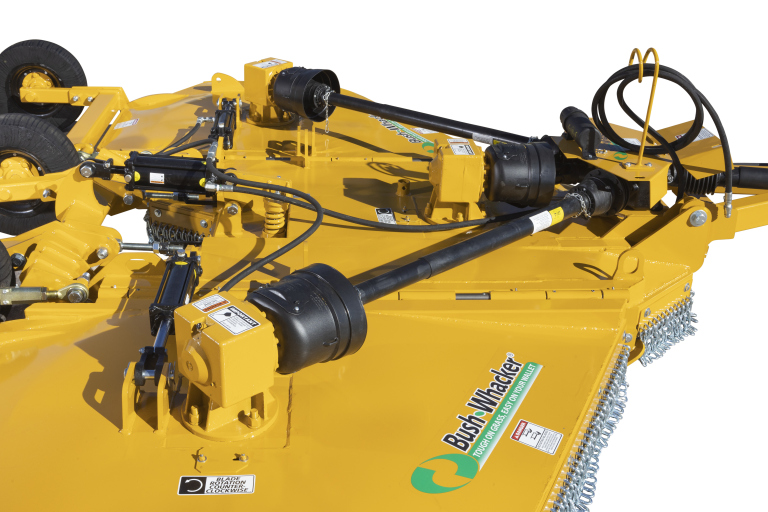

Gearboxes - 540 RPM or 1,000 RPM Three spindle gearboxes, 120 HP, base mounted, 1:1.46 ratio. One divider box, 160 HP, base mounted. All gearboxes have malleable housings, forged alloy steel, carburized and hardened gears and shafts, tapered and ball bearings. 6 splined 1 3/8″ input shaft, 2 3/8″ output shaft on spindle boxes.

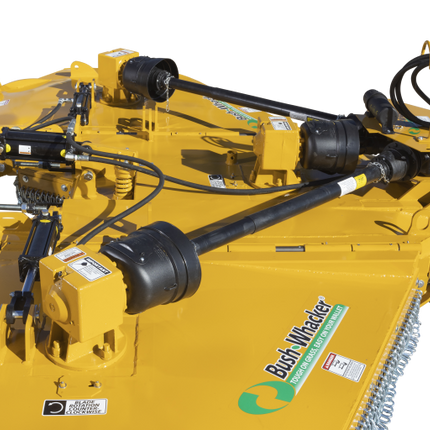

Drive Shafts - Shielded PTOs made from the finest quality propeller shaft materials and needle bearing universal joints. Category 6 80-degree constant velocity main drive shaft, Series 8 Category 6, and wing drive shafts.

Slip Clutch - Three heavy-duty clutches with spring type adjustment and two friction discs.

Blades - 1/2″ by 4″ material, alloy spring steel, airlift design. Free swinging when encountering obstructions. 8″ overlap for better cutting. Bladetip speed: 15,500 FPM.

Tires - Six solid rubber tires standard. Independent shock absorbing system for all-wheel axles. Optional: “Standard Laminated / Optional 25” Treaded Laminate, Used Aircraft, or Used Foam-Filled Aircraft”

Dimensions - Cutting width: 15″. Cutting height: adjustable from 2″ to 15″. Overall width: 190″. Overall length: 189″. Cutting height for aircraft and implement tires: 2″ to 17″.

Transportation width - 88″

Weight - Without chains and tires: 3,700 lb.
With standard tires and single curtain chains: 4,340 lb.

Bush-Whacker Special Deck - The smooth, easy-to-clean top deck is made of 10 gauge steel.

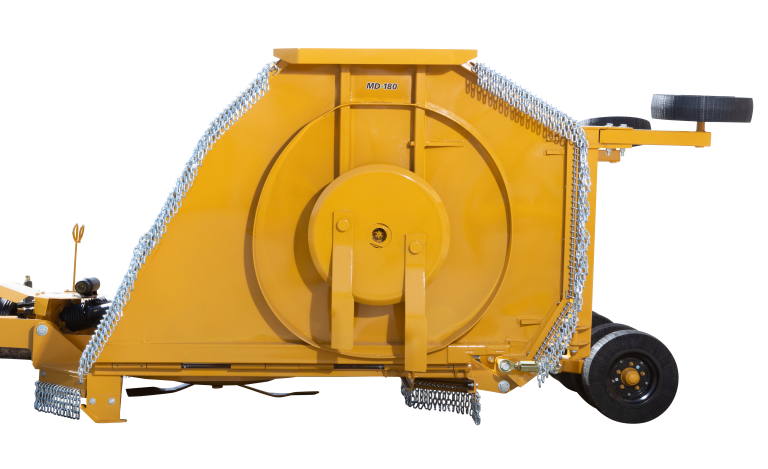

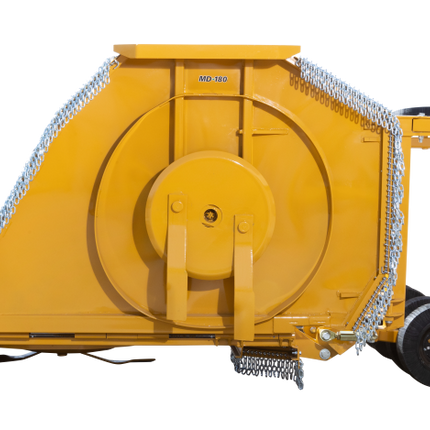

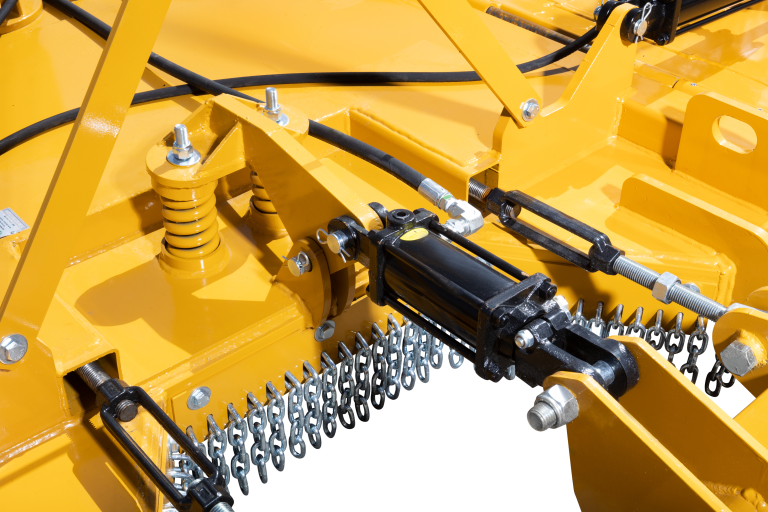

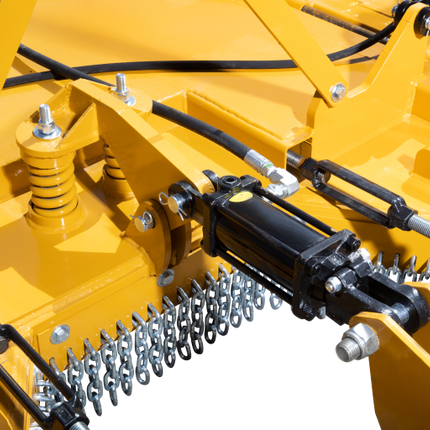

Hydraulic Adjustments - Hydraulic lift cylinders control raising and lowering of a flexible wing (winch assembly for manual wing lift is optional). Wing may be raised to 88 degrees above horizontal and lowered to 22 degrees below the horizontal cutting plane. Optional: rephasing level lift systems.

Other Standard Features Include - Replaceable center and full-length wing skid shoes, transport locking bars for each wing, heavy-duty tongue assembly with dual leveling rods, hydraulic hose holder, park jack for easy hookup, and unhooking from the tractor. Swivel clevis to relieve stress on the tractor drawbar. Double Chain guards are an added option.

Specifications

Cutting Height - 2"-15"

Cutting Capacity - 3"

Deck Thickness - 10 Gauge

Side Skirt Thickness - 3/8"

Divider Gearbox HP - 160 HP

Spindle Gearbox HP - 120 HP

Blade Size - 1/2" x 4"

Bladetip Speed - 15,500 FPM

Blade Overlap - 8"

Weight - 4,339 lbs

Safety Deflectors - Chain Guards

Tires - Laminated

Mower Warranty - 1 Year Limited

Gearbox Warranty - 5 Year Limited

Product form

Flex Wing Brush Cutter 15', Bush Whacker MD180 This easy to clean flex-wing brush cutter is one of the most...

Free pickup in our shop(s)

SKU: MD180

3 in stock

$19,250.00 $17,749.00
