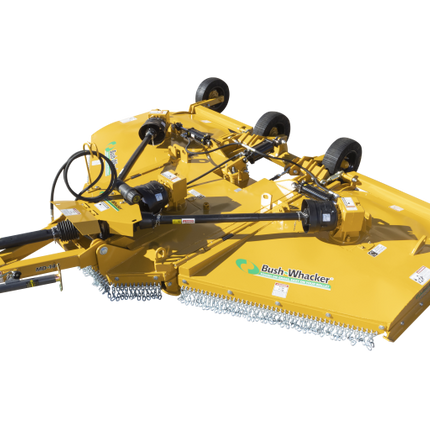

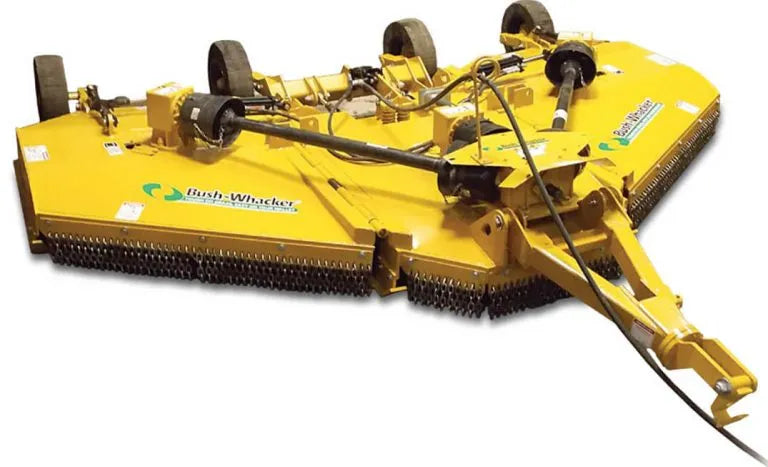

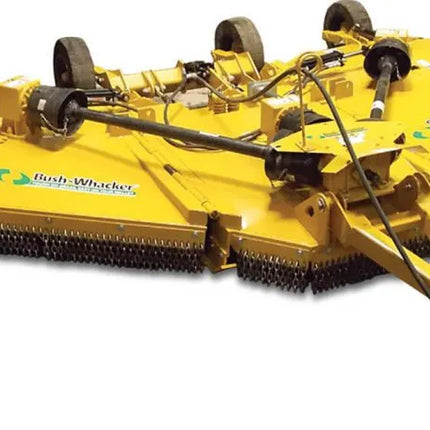

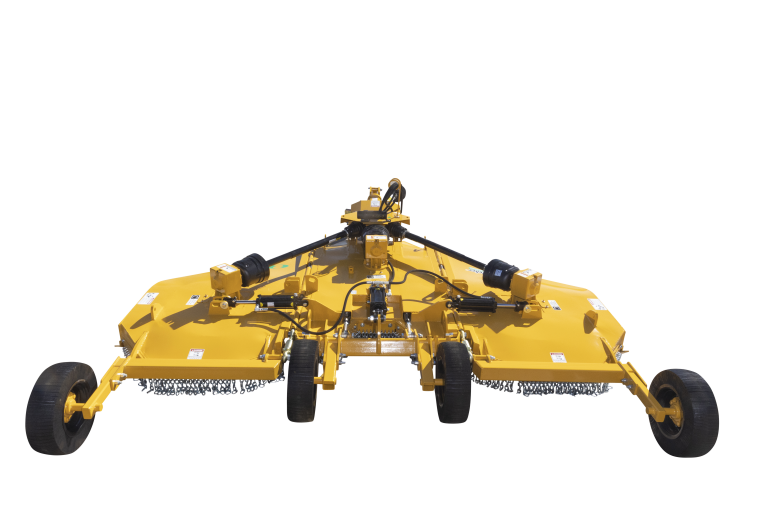

Bush Whacker Medium Duty Rotary 12' Cutter MD144

Description

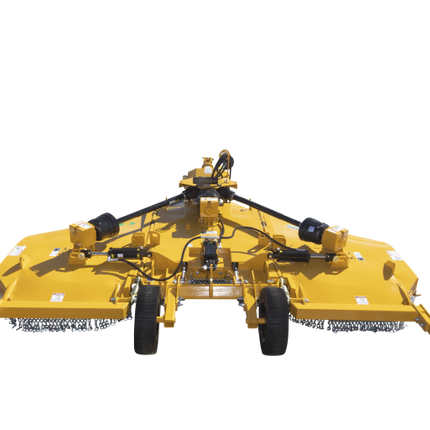

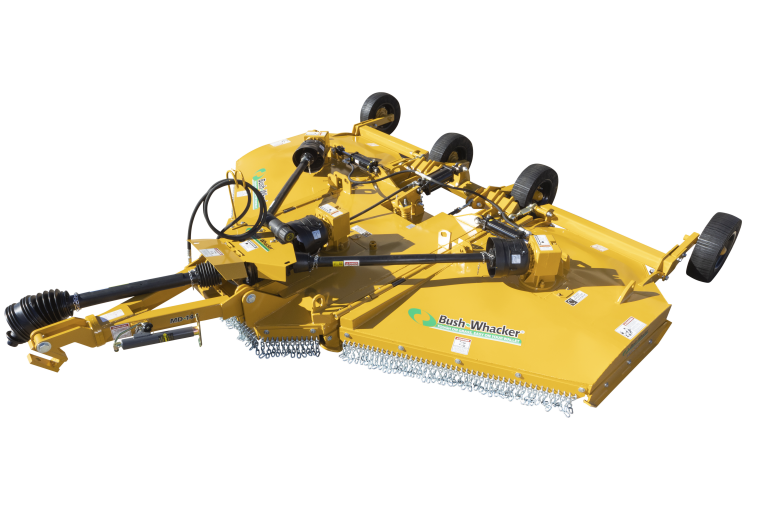

Bush Whacker Medium Duty Rotary 12' Cutter MD144

The MD-144 is a Flex-Wing unit is perfect for tractors running with 35 to 75 HP. So whether you are the “weekend farmer” with 10-40 acres who are looking to reduce his cutting time on the weekends or the professional mowing pastures, we’re certain you’ll find the MD-144 has what it takes to get the job done!

  • DRIVELINES
    #1 in its class with Cat 4 Drivelines on the Main Unit and Cat 4 Drivelines on the Wings

  • GEARBOXES
    #1 in its class with 120 HP capacity

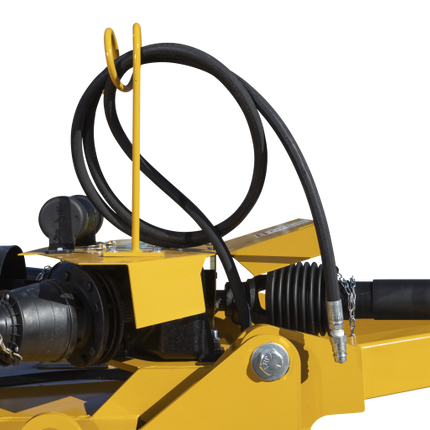

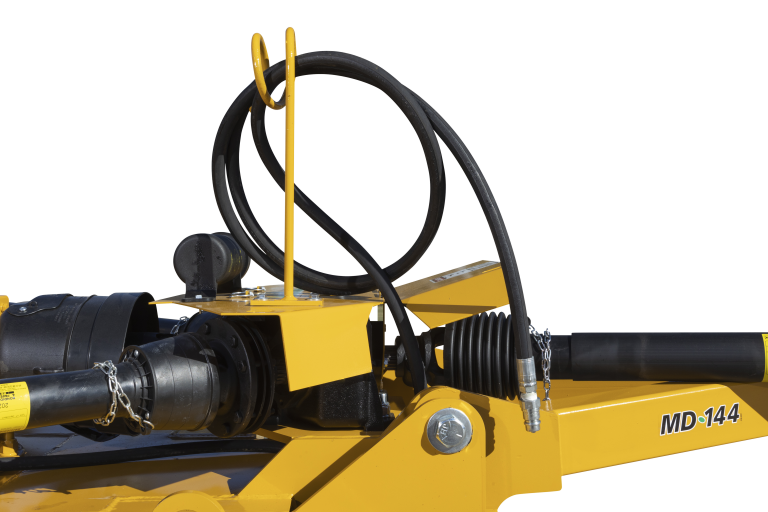

  • GEARBOX SHAFTS
    #1 in its class with 1″ 20 spline divider on the input and 2″ on the output

  • CUTTING CAPACITY
    #1 in its class with 3″ cutting capacity

  • CUTTING HEIGHT
    #1 in its class with a cutting height between 2″ to 13″

Specifications

Cut Width - 144"

HP Require (MIN.) - 35 HP Min

Gearbox Rating Power Divider - 160 HP

Gearbox Rating Center and Wing - 120 HP

Gearbox Shaft Input - 1 - 3/4" - 20 Spline

Gearbox Shaft Output - 2"

Bladetip Speed Wing - 14,600 FPM-Wing/14,181 FPM Center

Cutting Capacity (Max.) - 3"

Driveline Size Main - CAT 6

Driveline Size Wing - CAT 4

Tires - Laminated or Treaded Laminated

Cutting Height - 2" - 13"

Hitch - Swivel Clevis

Tongue Weight - 1,005 lbs

Total Weight - 3,350 lbs

Side Band - 3/8"

Blades - 1/2" x 4" Updraft

Blade Holder - 3/16" Pan w/ 1 x 4" Gusseted Bar

Gearbox Warranty - 5 Year Limited

Deck Height - 10.5"

Deck - 10 Gauge

Blade Overlap - 8"

Stump Jumper Size - 3/16" x 26"

Remotes - One

Hubs - 5 Bolt

Hinge Rods - 1"

Leveling Rods - 1"

Overall Length - 165"

Overall Width - 155"

Chains - Single Double RowChain guards

Hydraulics - 4x8" Suspension/3x8 Wing Cylinder

Transport Width - 96"

Product form

Bush Whacker Medium Duty Rotary 12' Cutter MD144  The MD-144 is a Flex-Wing unit is perfect for tractors running with...

SKU: MD144
Barcode: MD144

Out of stock

$14,495.00

    Description

    Bush Whacker Medium Duty Rotary 12' Cutter MD144

    The MD-144 is a Flex-Wing unit is perfect for tractors running with 35 to 75 HP. So whether you are the “weekend farmer” with 10-40 acres who are looking to reduce his cutting time on the weekends or the professional mowing pastures, we’re certain you’ll find the MD-144 has what it takes to get the job done!

    • DRIVELINES
      #1 in its class with Cat 4 Drivelines on the Main Unit and Cat 4 Drivelines on the Wings

    • GEARBOXES
      #1 in its class with 120 HP capacity

    • GEARBOX SHAFTS
      #1 in its class with 1″ 20 spline divider on the input and 2″ on the output

    • CUTTING CAPACITY
      #1 in its class with 3″ cutting capacity

    • CUTTING HEIGHT
      #1 in its class with a cutting height between 2″ to 13″

    Specifications

    Cut Width - 144"

    HP Require (MIN.) - 35 HP Min

    Gearbox Rating Power Divider - 160 HP

    Gearbox Rating Center and Wing - 120 HP

    Gearbox Shaft Input - 1 - 3/4" - 20 Spline

    Gearbox Shaft Output - 2"

    Bladetip Speed Wing - 14,600 FPM-Wing/14,181 FPM Center

    Cutting Capacity (Max.) - 3"

    Driveline Size Main - CAT 6

    Driveline Size Wing - CAT 4

    Tires - Laminated or Treaded Laminated

    Cutting Height - 2" - 13"

    Hitch - Swivel Clevis

    Tongue Weight - 1,005 lbs

    Total Weight - 3,350 lbs

    Side Band - 3/8"

    Blades - 1/2" x 4" Updraft

    Blade Holder - 3/16" Pan w/ 1 x 4" Gusseted Bar

    Gearbox Warranty - 5 Year Limited

    Deck Height - 10.5"

    Deck - 10 Gauge

    Blade Overlap - 8"

    Stump Jumper Size - 3/16" x 26"

    Remotes - One

    Hubs - 5 Bolt

    Hinge Rods - 1"

    Leveling Rods - 1"

    Overall Length - 165"

    Overall Width - 155"

    Chains - Single Double RowChain guards

    Hydraulics - 4x8" Suspension/3x8 Wing Cylinder

    Transport Width - 96"
