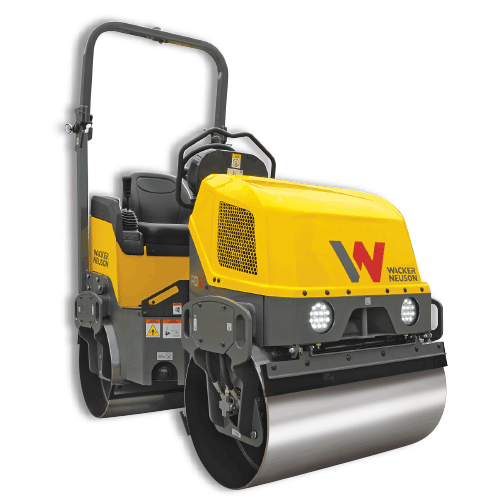

RD12 Tandem Roller: High Performance for excellent compaction results
The RD12L tandem vibratory roller with a dual drum drive and
articulated steering for excellent maneuverability. With a front
vibrating drum and rear static drum it offers efficiency compaction
results in a compact package. This machine is ideally suited for
commercial and residential compaction of asphalt and granular
sub-base material. Primary applications include parking lots,
driveways, secondary roads, repair work and nature trails.
Additionally, the RD12L is utilized for turf rolling in the landscape
and golf industry segments.
Highlights
■ Ergonomic Operator Platform
■ Optimized curb and side clearance
■ Excellent drum visibility
■ Fully integrated operating lever
■ Industry leading service access
■ Dual drum hydrostatic drive system
Unit also available to rent
Technical Data
Centrifugal force: 3,400 lbf
Amplitude at air: 0.043 "
Travel speed: - 5.0
Oscillation Angle: 12.0 °
Travel speed (reverse): - 5.0
Cooling: air cooling
Engine type: Gasoline engine
Engine operating mode: four-stroke
Cylinder: 2.0
Fuel consumption: 1.6 GPH US
Power rating max.: 20.2 hp
Exhaust-gas limit: EPA Tier 4 final
Starter battery Voltage: 12.0 V
Engine Manufacturer: Kohler
Water tank capacity: 34.6 gal US
Steering angle max.: 34
Steering: hydraulics
Length for shipping: 79.8 "
Width for shipping: 41.7 "
Height for shipping: 69.0 "
Shipping weight: 2,288.4 lb
Ergonomic Operator Platform
The operator's platform is ergonomically designed to minimize vibration while having easy access and comfortable reach to all controls. This ensures greater efficiency and operator comfort.
Fuel and water gauges provide operator with fluid levels during operation.
The skid resistant lockable metal floorplate and the built-in all weather seat with seatbelt allow for safer and comfortable operation during any season. and makes the machine even more durable.
Optimized curb and side clearance
The optimized curb clearance prevents damage to concrete curbs when compacting subbase and asphalt.
With the side clearance of less than 2 inches the operator can maneuver close to any structure resulting in professional compaction end results.
Fully recessed hydraulic motors provide excellent curb and side clearance allowing easy compaction near curbs, walls and in confined areas.
Excellent drum visibility
With a tapered frame and hood design, the operator has excellent visibility to the drum edges for more comfortable operation and efficiency.
The compact design allows an unobstructed view of the drums at all times. This simplifies maneuvering and approaching walls and obstacles providing high quality results.
The operator has all-round visibility which means fewer mirrors and no need for a rear-view camera. In addition, the risk of accidents is reduced.
Fully integrated operating lever
Ergonomic joystick with integrated vibration and water spraying functions for better control and ease of operation.
Industry leading service access
The hood design provides easy to the engine, hydraulic components, fuse box and maintenance points.
Quick, tool-free access to water pump, water filter, battery and manuals guarantee easy maintenance of the equipment. This reduces the overall maintenance downtime and therefore the total cost of ownership.
Hinged floor plate allows quick access to the main components.
Dual drum hydrostatic drive system
This allows for greater productivity and surface finishing as both drums rotate at the same speed avoiding asphalt shoving.
