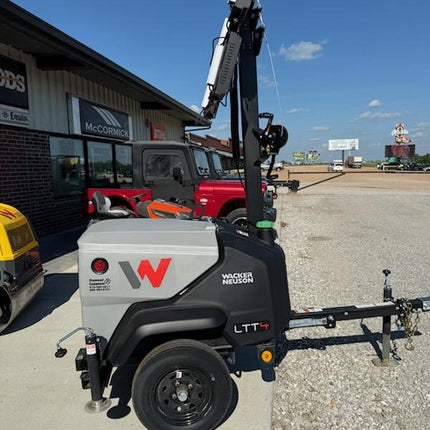

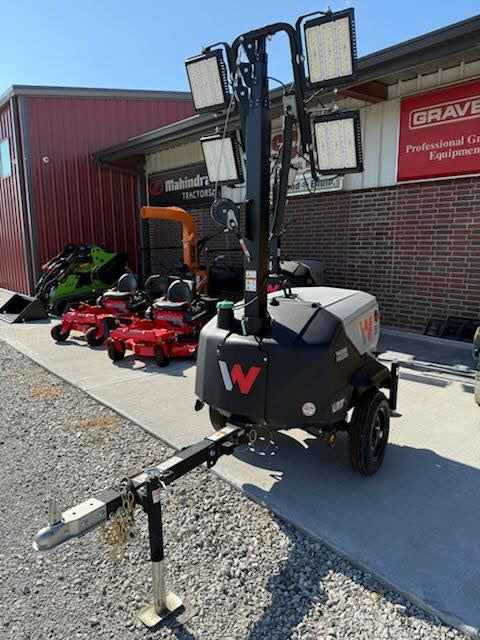

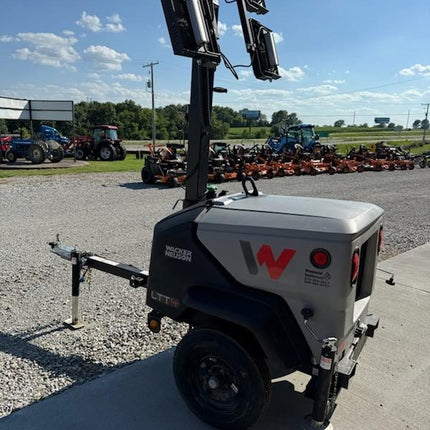

Compact light tower w/4-320w LED lights and a adjustable vertical mast, Duplex outlets
The LTT4 light towers offer a smaller footprint, and the long-lasting LED's deliver exceptional light coverage for a variety of applications where temporary lighting is needed. The units are equipped with auxiliary power which adds to the versatility of these machines.

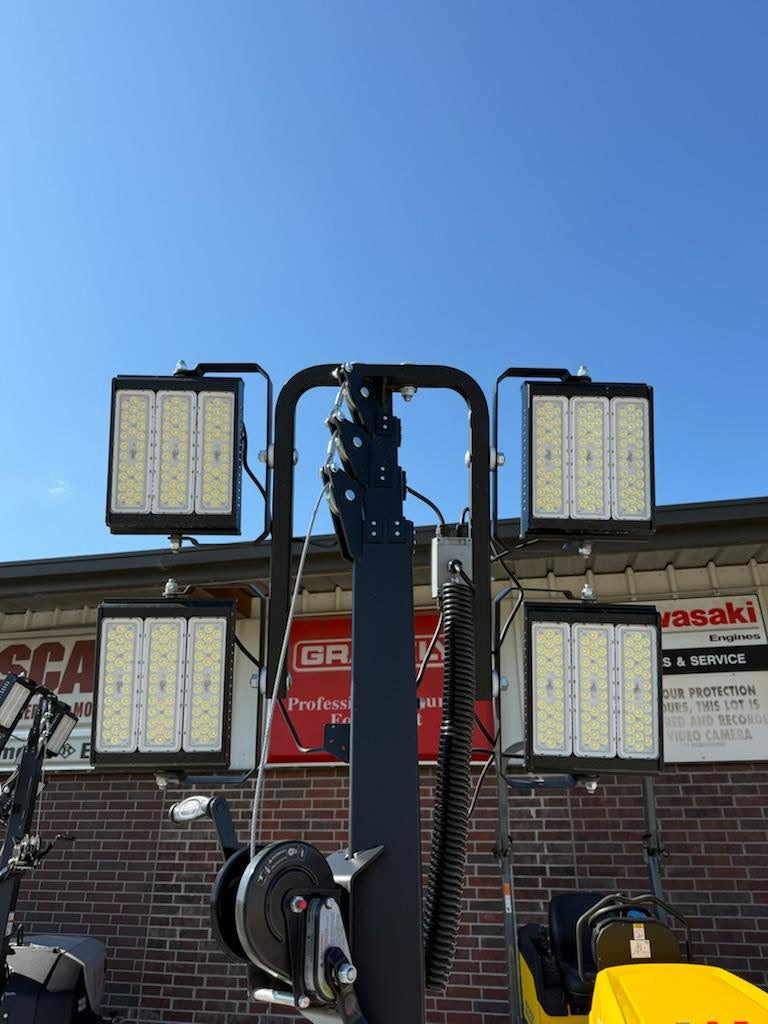

LED Lights
-
Rated to last the life of the machine, the durable LED lights eliminate frequent bulb replacement expense, reducing the total cost of ownership
-
Four 320 Watt LED lights provide a total of 192,000 Lumens instantaneously and increase uptime by eliminating warm-up and cool-down periods
-
Efficient LED lights extend the machine's run time and reducing overall operating costs
Programmable Controller
Compact Design
-
Foldable tongue minimizes the machine footprint for shipping and storage
-
Fork pockets and lifting eye make it easy to load, unload, and place machine
-
Compact design allows for 22 machines to fit on a 48 ft trailer and 24 machines on a 53 ft. trailer
Standard Auxiliary Power

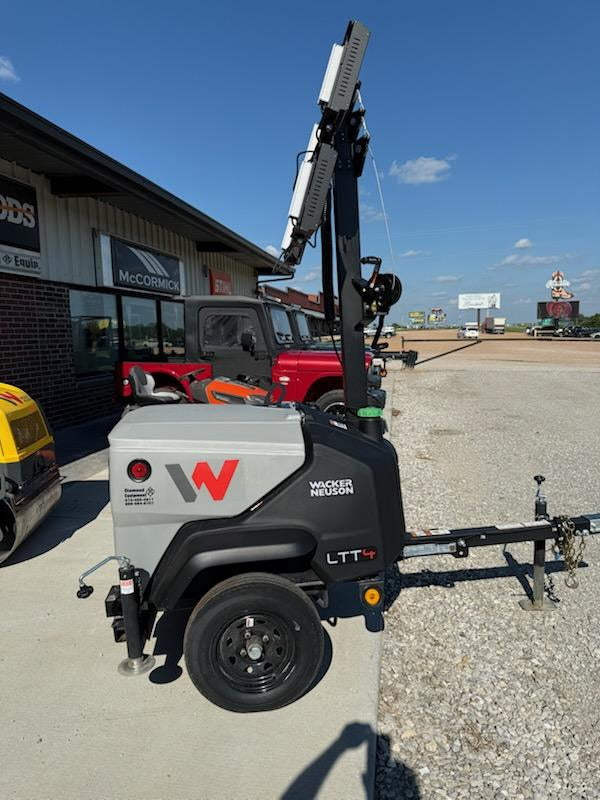

Telescopic Vertical Mast
-
The compact telescopic vertical mast design reduces storage and transportation area, improving logistics efficiencies.
-
Manual, dual handle winch enables quick raising and lowering of mast.
Extended 1,000 Hour Service Interval
- 1,000 hour oil change interval means more time working and less time servicing, reducing total cost of ownership.
|
GENERATOR
|
Metric
|
Imperial
|
|
Generator Manufacturer
|
Mecc Alte
|
Mecc Alte
|
|
Voltage accuracy
|
10,0 %
|
10,0 %
|
|
Gen. Rating 1~ (Cont.) [kW]
|
4,5 kW
|
4,5 kW
|
|
Output frequency
|
60 Hz
|
60 Hz
|
|
OPERATING FLUIDS
|
Metric
|
Imperial
|
|
Run Time (Lights only)
|
211,1 std
|
211,1 std
|
|
Fuel consumption (Lights only)
|
0,9 L/Std
|
0,2 GPH US
|
|
LIGHTING - OUTPUT DETAILS
|
Metric
|
Imperial
|
|
Coverage area
|
670 m2
|
7.211,9 ft2
|
|
Illuminance
|
54 Lux
|
5,0 fc
|
|
ENGINE
|
Metric
|
Imperial
|
|
Cylinder
|
2
|
2
|
|
Cooling
|
Water-cooling
|
Water-cooling
|
|
Exhaust-gas limit
|
EPA Tier 4 final
|
EPA Tier 4 final
|
|
Engine Manufacturer
|
Kohler
|
Kohler
|
|
Cylinder capacity
|
686 cm3
|
41,9 Inch3
|
|
Tank capacity
|
198,40 l
|
52,4 gal US
|
|
Operating Engine speed
|
1.800 1/min
|
1.800 1/min
|
|
Effective power
|
5,5 kW
|
7,4 hp
|
|
Engine type
|
Diesel engine
|
Diesel engine
|
|
ELECTRICAL SYSTEM
|
Metric
|
Imperial
|
|
Lighting appliances
|
320W (LED)
|
320W (LED)
|
|
Bulb power
|
320 W
|
320 W
|
|
MECHANICAL DETAILS
|
Metric
|
Imperial
|
|
Operating weight
|
680,0 kg
|
1.499,1 lb
|
|
Length
|
2.563 mm
|
100,9 "
|
|
Height
|
2.548 mm
|
100,3 "
|
|
Mast height max.
|
7,0 m
|
23,0 Foot
|
|
Width
|
1.207 mm
|
47,5 "
|
