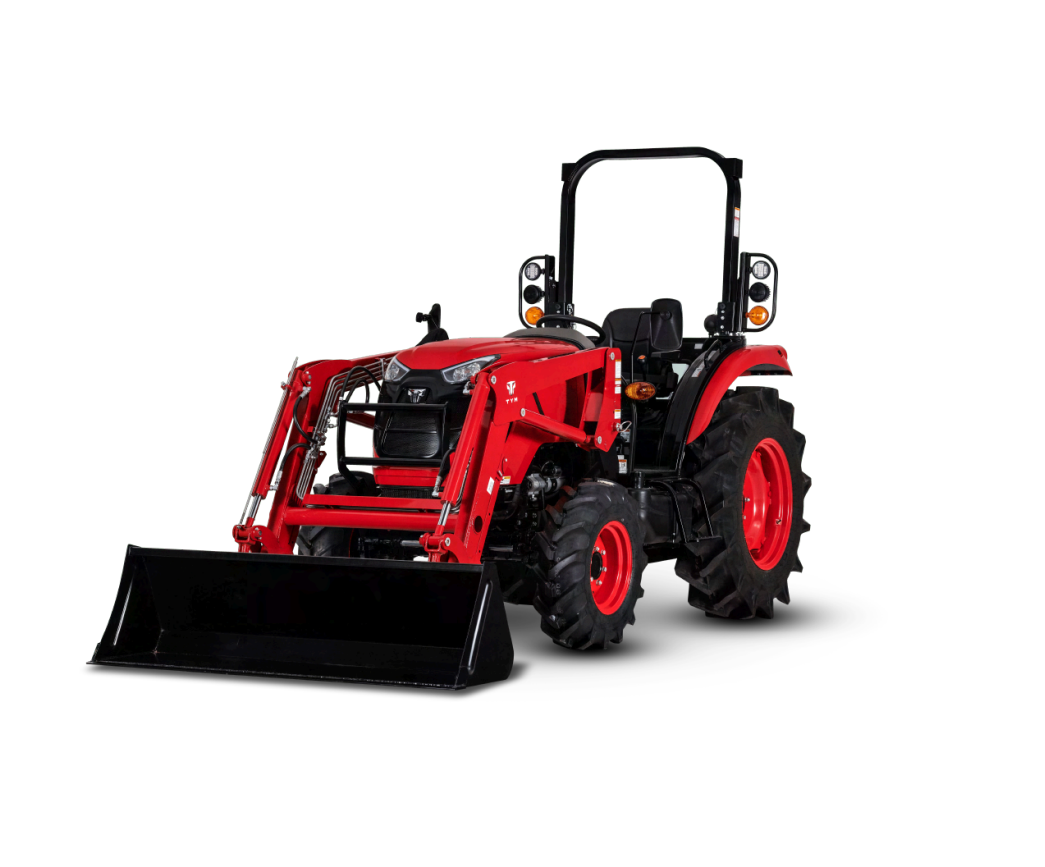

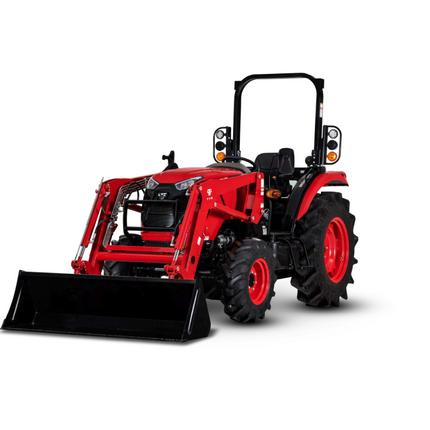

TYM T574

Description

Technical Specification

Hydraulic System
Pump type	Dual gear pump	Dual gear pump	Dual gear pump
Implement flow	7.7 gpm \| 29 L/min	7.7 gpm \| 29 L/min	9.5 gpm \| 35.7 L/min
Steering flow	4.3 gpm \| 17.8 L/min	4.3 gpm \| 17.8 L/min	4.6 gpm \| 17.3 L/min
Total flow	11.9 gpm \| 46.8 L/min	11.9 gpm \| 46.8 L/min	14.1 gpm \| 52.9 L/min
Category, 3-point hitch	I	I	I
Hitch lift capacity	3822 lb \| 1733 kg	3822 lb \| 1733 kg	3314 lb \| 1503 kg
Hitch lift capacity at 24 inches behind link ends	3050.6 lb \| 1387 kg	3050.6 lb \| 1387 kg	2945 lb \| 1336 kg
Lift control type	Position/Draft	Position/Draft	Position/Draft
No. of standard remote valves	2	2	2

Capacities
Fuel tank	17.0 gal \| 60 L	17.0 gal \| 60 L	17.0 gal \| 60 L
Coolant	6.9 qt \| 6.5 L	6.9 qt \| 6.5 L	9 qt \| 8.5 L
Crankcase	6.8 qt \| 6.4 L	6.8 qt \| 6.4 L	7.1 qt \| 6.7 L
Transmission/Hydraulics system	9.2 gal \| 34.8 L	9.2 gal \| 34.8 L	9.2 gal \| 34.8 L
Front axle	10.5 qt \| 9.9 L	10.5 qt \| 9.9 L	10.5 qt \| 9.9 L

Dimensions & Weights
Overall length with 3-point hitch	141.3 in. \| 3590 mm	141.3 in. \| 3590 mm	141.3 in. \| 3590 mm
Overall width	63.8 in. \| 1620 mm	63.8 in. \| 1620 mm	63.8 in. \| 1620 mm
Wheelbase	76.2 in. \| 1935 mm	76.2 in. \| 1935 mm	76.2 in. \| 1935 mm
Height to top of ROPS	141.3 in. \| 3590 mm	-	102.1 in. \| 2594 mm
Height to top of cabin	-	98 in. \| 2490 mm	-
Min. ground clearance	13.8 in. \| 350 mm	13.8 in. \| 350 mm	13.8 in. \| 350 mm
Min. turn radius with brakes	121.2 in. \| 3080 mm	121.2 in. \| 3080 mm	131.9 in. \| 3352 mm
Min. turn radius without brakes	131.5 in. \| 3340 mm	131.5 in. \| 3340 mm	150.4 in. \| 3820 mm
Weight with ROPS	3887 lb \| 1763 kg	-	3814 lb \| 1730 kg
Weight with cab	-	4233 lb \| 1920 kg	-

Download

Product form

T574C TYM Tractor Technical Specification Engine Tractors Model T574 T574C T554 Engine manufacturer TYM T2300T2 TYM T2300T2 Yanmar 4TNV86CT Type...

Free pickup in our shop(s) Free pickup in our shop(s)

SKU: T574

$31,250.00

Technical Specification

Hydraulic System
Pump type	Dual gear pump	Dual gear pump	Dual gear pump
Implement flow	7.7 gpm \| 29 L/min	7.7 gpm \| 29 L/min	9.5 gpm \| 35.7 L/min
Steering flow	4.3 gpm \| 17.8 L/min	4.3 gpm \| 17.8 L/min	4.6 gpm \| 17.3 L/min
Total flow	11.9 gpm \| 46.8 L/min	11.9 gpm \| 46.8 L/min	14.1 gpm \| 52.9 L/min
Category, 3-point hitch	I	I	I
Hitch lift capacity	3822 lb \| 1733 kg	3822 lb \| 1733 kg	3314 lb \| 1503 kg
Hitch lift capacity at 24 inches behind link ends	3050.6 lb \| 1387 kg	3050.6 lb \| 1387 kg	2945 lb \| 1336 kg
Lift control type	Position/Draft	Position/Draft	Position/Draft
No. of standard remote valves	2	2	2

Capacities
Fuel tank	17.0 gal \| 60 L	17.0 gal \| 60 L	17.0 gal \| 60 L
Coolant	6.9 qt \| 6.5 L	6.9 qt \| 6.5 L	9 qt \| 8.5 L
Crankcase	6.8 qt \| 6.4 L	6.8 qt \| 6.4 L	7.1 qt \| 6.7 L
Transmission/Hydraulics system	9.2 gal \| 34.8 L	9.2 gal \| 34.8 L	9.2 gal \| 34.8 L
Front axle	10.5 qt \| 9.9 L	10.5 qt \| 9.9 L	10.5 qt \| 9.9 L

Dimensions & Weights
Overall length with 3-point hitch	141.3 in. \| 3590 mm	141.3 in. \| 3590 mm	141.3 in. \| 3590 mm
Overall width	63.8 in. \| 1620 mm	63.8 in. \| 1620 mm	63.8 in. \| 1620 mm
Wheelbase	76.2 in. \| 1935 mm	76.2 in. \| 1935 mm	76.2 in. \| 1935 mm
Height to top of ROPS	141.3 in. \| 3590 mm	-	102.1 in. \| 2594 mm
Height to top of cabin	-	98 in. \| 2490 mm	-
Min. ground clearance	13.8 in. \| 350 mm	13.8 in. \| 350 mm	13.8 in. \| 350 mm
Min. turn radius with brakes	121.2 in. \| 3080 mm	121.2 in. \| 3080 mm	131.9 in. \| 3352 mm
Min. turn radius without brakes	131.5 in. \| 3340 mm	131.5 in. \| 3340 mm	150.4 in. \| 3820 mm
Weight with ROPS	3887 lb \| 1763 kg	-	3814 lb \| 1730 kg
Weight with cab	-	4233 lb \| 1920 kg	-

Download
