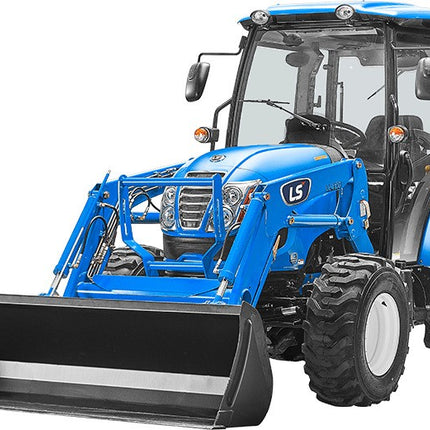

LS Tractor MT347H/HC/C – 47HP

VendorLS Tractor
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

LS Tractor MT347H/HC/C – 47HP

The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models are available with gear drive or hydrostatic transmissions. All models feature an ergonomic design making this a truly premium tractor.

Specifications:

Engine

Type: 3 Cylinder, Liquid-Cooled, Diesel, Turbocharged, Common Rail Direct Injection (CRDI)
Model (Tier 4): L3C19-T
Engine HP (Gross): 47 hp
PTO HP: 39.9 hp (Hydrostatic) / 37.6 hp (Gear)
Rated Speed: 2,600 RPM
Displacement: 114.7 cu. in.
Fuel Tank Capacity: 12.4 gal (Cabin) / 10.6 gal (ROPS)
Alternator: 12V – 70 A

Drive Train

Transmission: Synchro Shuttle / HST
Number of Speeds: F16 x R16 (Gear) / 3 Ranges (HST)
Brakes: Wet, Multi-Disc

PTO

Type: Independent
Rear PTO RPM: 540

Hydraulic System

Control System: Position/Draft
Implement Pump: 8.2 gpm
Steering Pump:
Gear: 4.1 gpm
Hydrostatic: 5.5 gpm (Standard) / 6.8 gpm (Cab)
Total Flow:
Gear: 12.3 gpm
Hydrostatic: 13.7 gpm (Standard) / 15.0 gpm (Cab)
Category (3-pt Hitch): CAT 1
Hitch Lift Capacity: 2,755 lbs
Remote Valves: 2 PAIR Front, 2 PAIR Rear (1 Detent, 1 Standard)

Dimensions

Overall Length (Bumper to Link): 133 in.
Wheelbase: 73.2 in.
Overall Width with Tires: 62.5 in.
Height to Top of ROPS: 95 in. (ROPS) / 90 in. (Cab)

Tire Size

Agricultural (Front / Rear): 9.5 – 16 / 13.6 – 24
Industrial (Front / Rear): 12 – 16.5 / 17.5L – 24
Turf Tire (Front / Rear): 28 x 8.5 – 15 / 41 x 14 – 20

Weight

Total Weight (Without Ballast): 3,935 – 4,446 lbs (Cab)

Width	Weight	Height	Length
	3869 Kilograms		0 Inch

Product form

LS Tractor MT347H/HC/C – 47HP The MT3 Series provides four different horsepower models featuring both cab and ROPS options. These models...

Free pickup in our shop(s) Free pickup in our shop(s)

SKU: LS Tractor MT347H/HC/C – 47HP-MT347

$29,000.00
