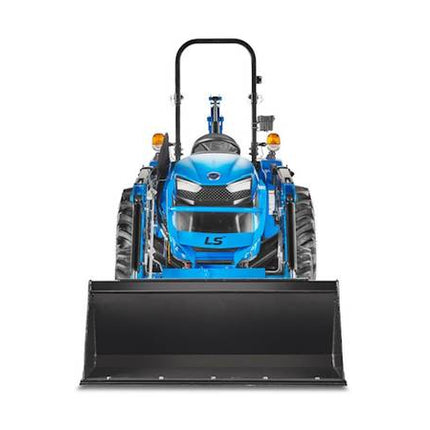

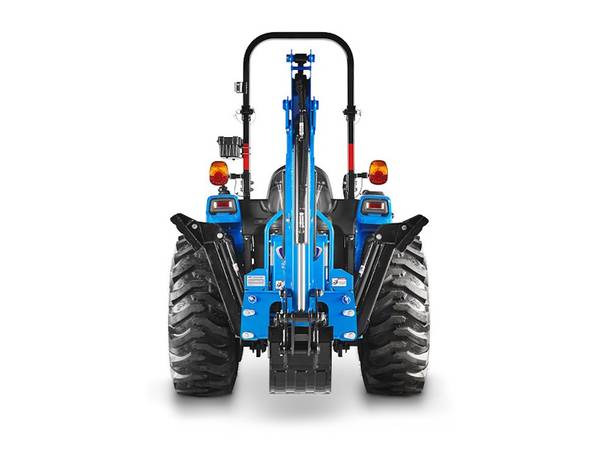

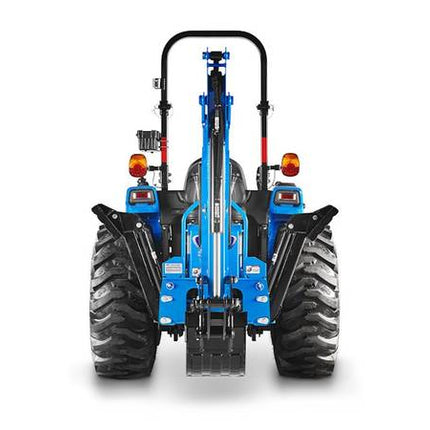

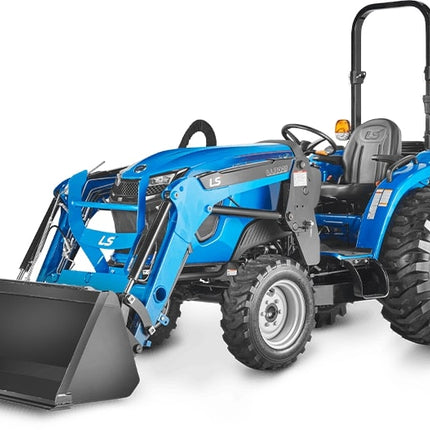

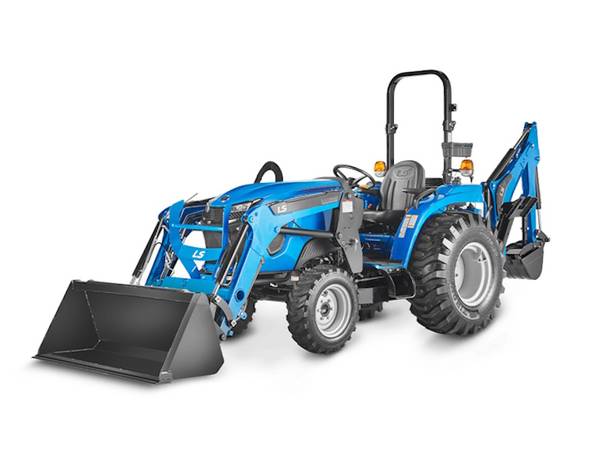

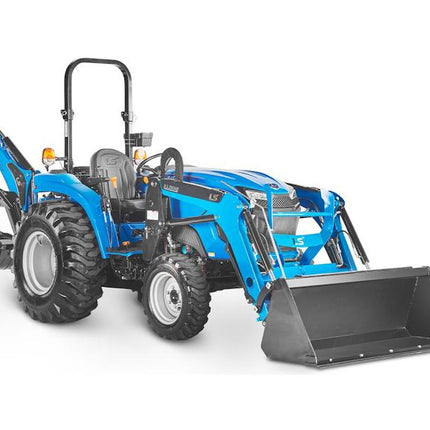

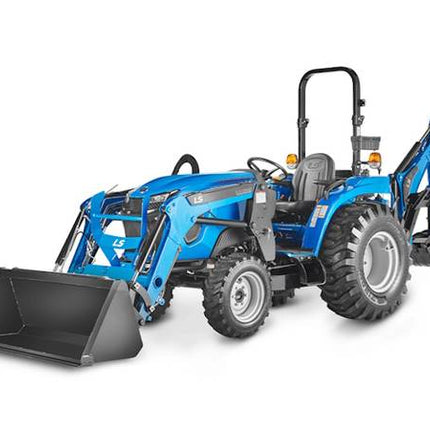

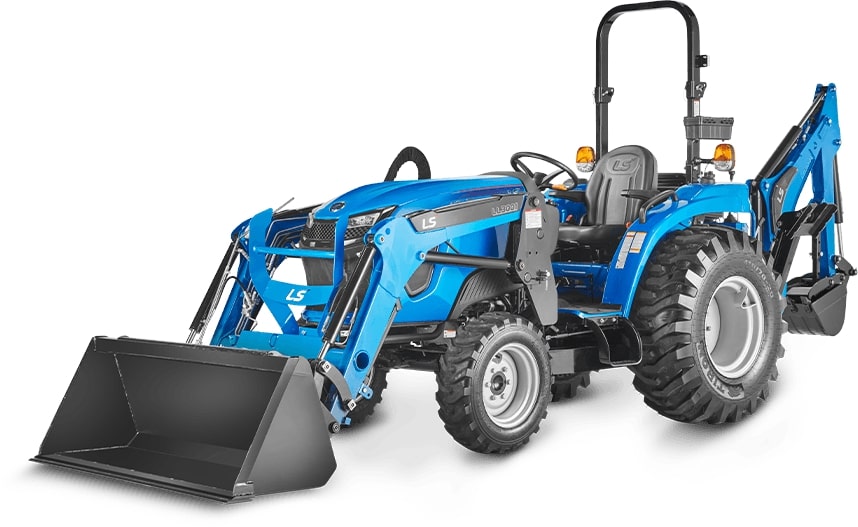

LS Tractor MT232H – 31.7HP

VendorLS Tractor
Share
- WhatsApp
- Deel
- X
- Pin it
- Messenger
- Email

Description

LS Tractor MT232H – 31.7HP

Features:

Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility
Much improved seat comfortability
Cruise control & linked pedal functionalities (Engine RPM matches user input demand on F/R HST pedals)
New hood design (LS Family look), Grill open space plus 20%
LED head Lamp
1 Inch large tire size and four different tire options
Larger lifting capacity, loader lifting capacity of New MT226E (LL3301/2) 1,965 lbs. New MT2E & MT2 (LL3303) 2,506lbs.
Workability, 4-point mount structure as well as digging depth of 97.2” and bucket digging force of 3,663lbs.
TF-LCD instrument panel providing various information like, regen time, oil change interval, etc.
E/G RPM interlocking switch (STD). When working at low RPM, instantaneous RPM can be increased by simply manipulating the toggle switch to momentarily increase loader speed/lift.

Specifications:

Type: 3 Cylinder Liquid-cooled Diesel, NA, CRDII
Model (Tier 4): YANMAR
Engine HP (Gross): 31.7 HP
PTO HP: 26.2 HP
Rated Speed: 2,600 RPM
Displacement: 100.2 cu in
Fuel Tank Capacity: 10.6 gal
Alternator: 12V – 50 Amps

Drive Train

Transmission Type: HST (Hydrostatic Transmission)
Number of Speeds: 3 Ranges
Brakes: Wet, Multi-disc
Steering: Hydrostatic Power Steering

PTO

Type: Independent
Rear RPM: 540 (Standard)

Hydraulic System

Control System: Position
Implement Pump: 6.7 gpm
Steering Pump: 5 gpm
Total Flow: 11.7 gpm
3-Point Hitch Category: CAT I
Hitch Lift Capacity: 1,808 lbs
Remote Valves: 1 Pair

Dimensions

Overall Length (Frame to Link): 125 in
Overall Width (with Tires): 66 in
Wheelbase: 69 in
Height to Top: 95 in

Tire Sizes

Ag Tires (Front/Rear): 7 – 14 / 11.2 – 24
Industrial Tires (Front/Rear): 27 x 8.50 – 15 / 43 x 16.00 – 20
Versa Turf Tires (Front/Rear): 27 x 8.50 – 15 / 43 x 16.00 – 20
Turf Tires (Front/Rear): 25 x 8.50 – 14 / 41 x 14 – 20

Weight

Total Weight (without ballast): 3,254 lbs

Width	Weight	Height	Length
	3254 Kilograms		0 Inch

Product form

LS Tractor MT232H – 31.7HP Features: Redesigned air conditioning and roof configuration, providing additional head space and increased forward visibility...

SKU: LS Tractor MT232H – 31.7HP-MT232H

Out of stock

$29,600.00
