Description

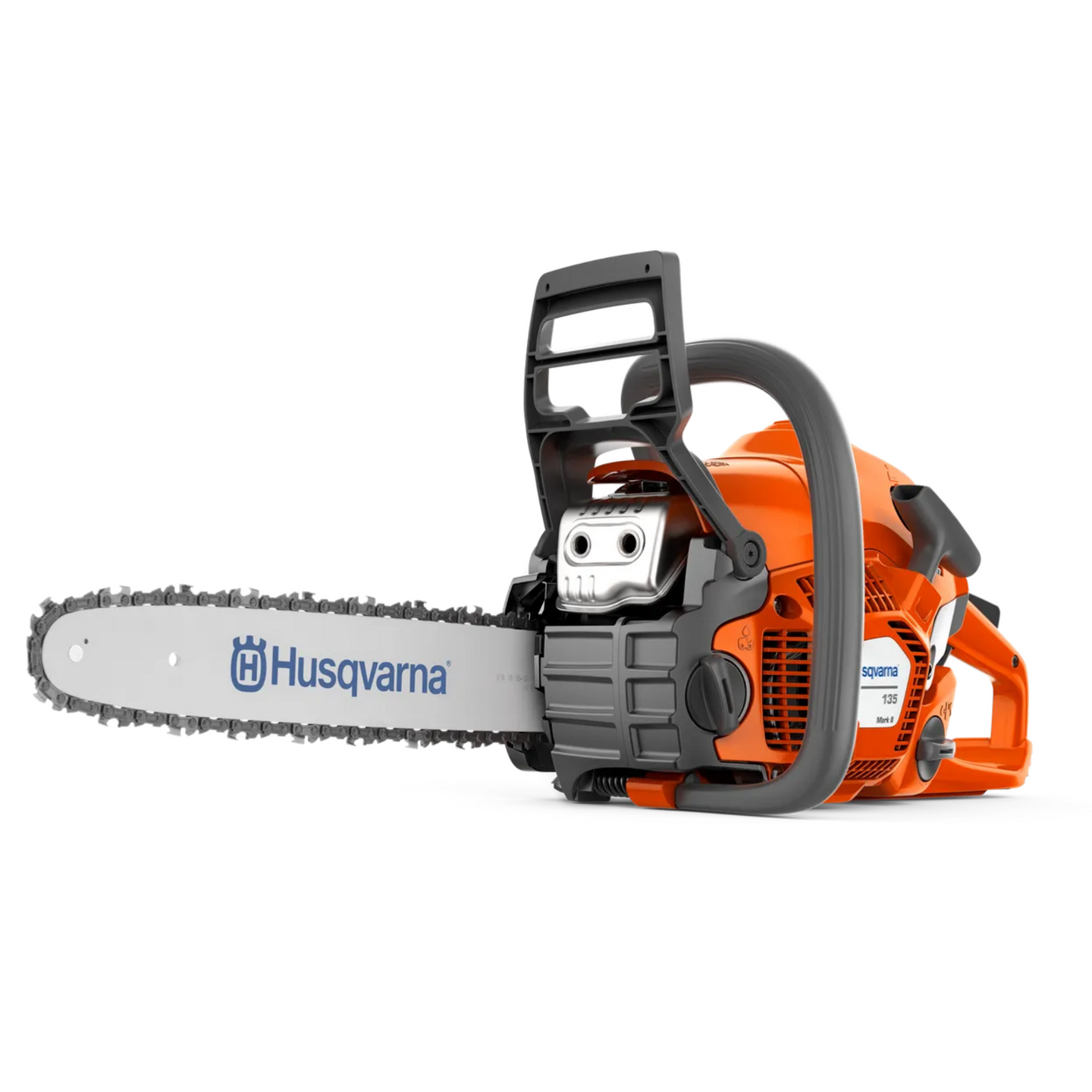

Get the job done the first time with the Husqvarna 135 Mark II. This reliable gas saw features Smart Start® and LowVib® technology for easy, comfortable use. Our proprietary X-TORQ® engine delivers superior performance, increased fuel efficiency and low emissions. And Air Injection™ technology improves engine life by expelling larger dust and debris particles before they reach the air filter.
Features:
Powerful and Efficient X-TORQ® Engine:
- X-Torq® engine technology reduces emissions and fuel consumption, while providing high torque over a wide RPM range.
LowVib® Technology:
- Effective vibration dampeners integrated into the handles reduce vibrations, enhancing user comfort and reducing fatigue during extended use.
Smart Start® Technology:
- Engine and starter system designed for quick and easy starting with minimal effort, ensuring the chainsaw starts reliably each time.
Quick Start with Air Purge:
- Air purge feature removes air from the carburetor and fuel system, facilitating easier starting of the chainsaw.
Simple Starting:
- Stop switch automatically resets to the ON position after shutdown, simplifying starting procedures for subsequent uses.
Air Injection™ Technology:
- Centrifugal air cleaning system separates larger dust and debris particles before they reach the air filter, improving engine durability and longevity.
Combined Choke/Stop Control:
- Simplifies starting process by integrating choke and stop functions into a single control, reducing the risk of engine flooding.
Inertia-Activated Chain Brake:
- Safety feature that reduces the risk of injury from kickback by stopping the chain when a sudden upward movement occurs.

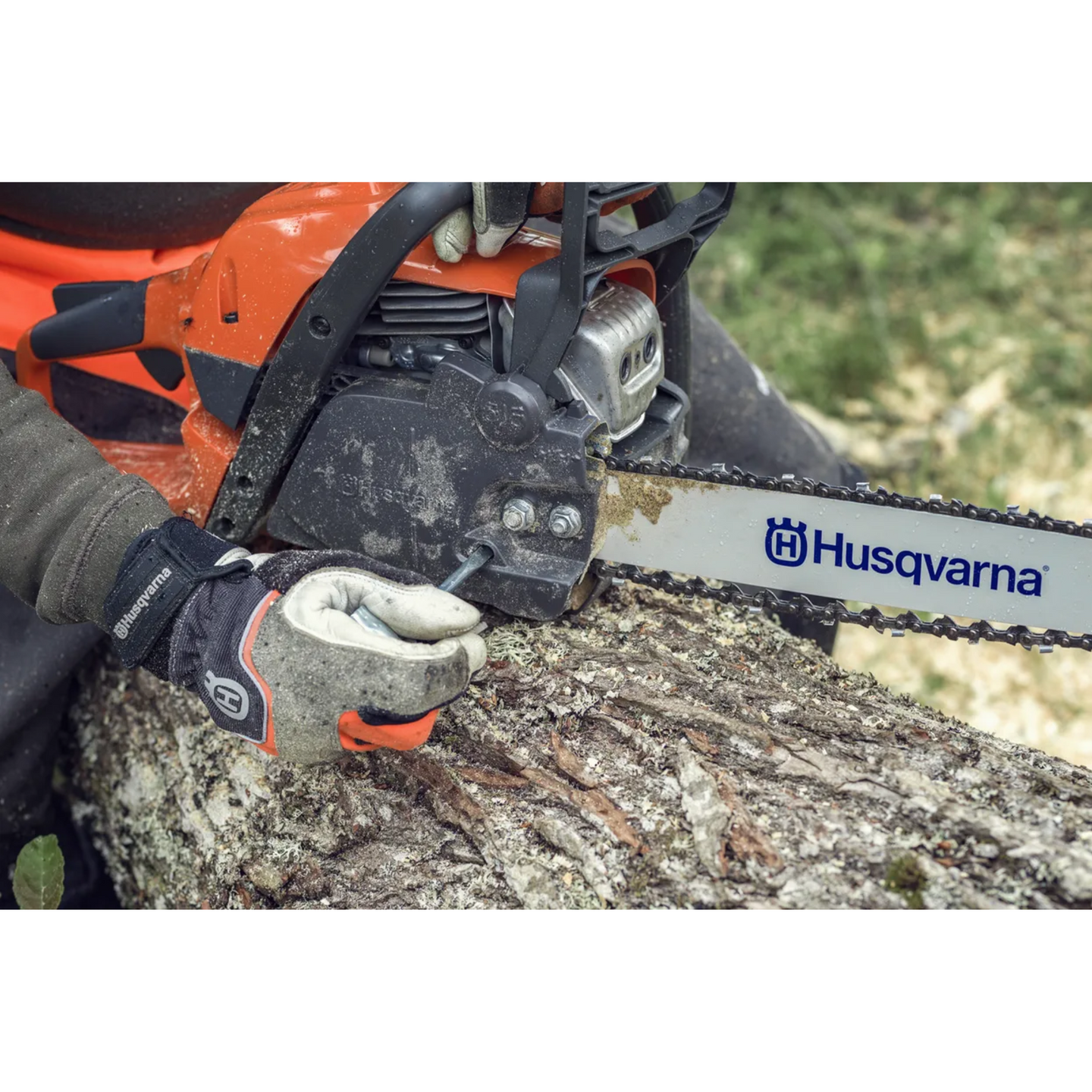

Side Chain Tensioning:
- Quick and easy adjustment of the chain tension without needing tools, ensuring optimal cutting performance.
Specification:
Engine:
-
SKU: 967 86 18-16
-
Chain Speed at Max Power: 55 feet per second
-
Cylinder Displacement: 38 cm³
-
Output Shaft Power: 2.1 hp (horsepower)
-
Maximum Torque: 1.84 Nm at 8,000 rpm
-
Clutch Engagement Speed: 4,000 rpm (±120)
-
Electrode Gap: 0.022 inches
-
Idling Speed: 3,000 rpm
-
Ignition Module Air Gap: 0.012 inches
-
Maximum Power Speed: 9,000 rpm
-
Oil Pump Type: Automatic
-
Spark Plug: NGK BPMR7A
Equipment:
-
Recommended Bar Length (Minimum): 14 inches
-
Recommended Bar Length (Maximum): 16 inches
-
Pitch: 3/8" mini
-
Chain Type: S93G
-
Bar Length: 40 cm (16 inches)
-
Sprocket Type: Spur 6
-
Gauge: .050 inches
Dimensions:
-
Weight (Excluding Cutting Equipment): 10.36 lbs
Sound and Noise:
-
Sound Pressure Level at Operator's Ear: 102 dB(A)
-
Sound Power Level, Guaranteed (LWA): 116 dB(A)
-
Sound Power Level, Measured: 114.34 dB(A)
Vibration:
-
Equivalent Vibration Level (ahv, eq) Rear Handle: 5.5 m/s²
-
Equivalent Vibration Level (ahv, eq) Front Handle: 3.72 m/s²
Lubricant:
-
Oil Tank Volume: 0.549 US pint
-
Lubricant Type (Engine): Husqvarna 2-stroke oil or equivalent at 50:1 ratio
Emission:
-
Exhaust Emissions (CO₂ EU V): 804 g/kWh
