Description

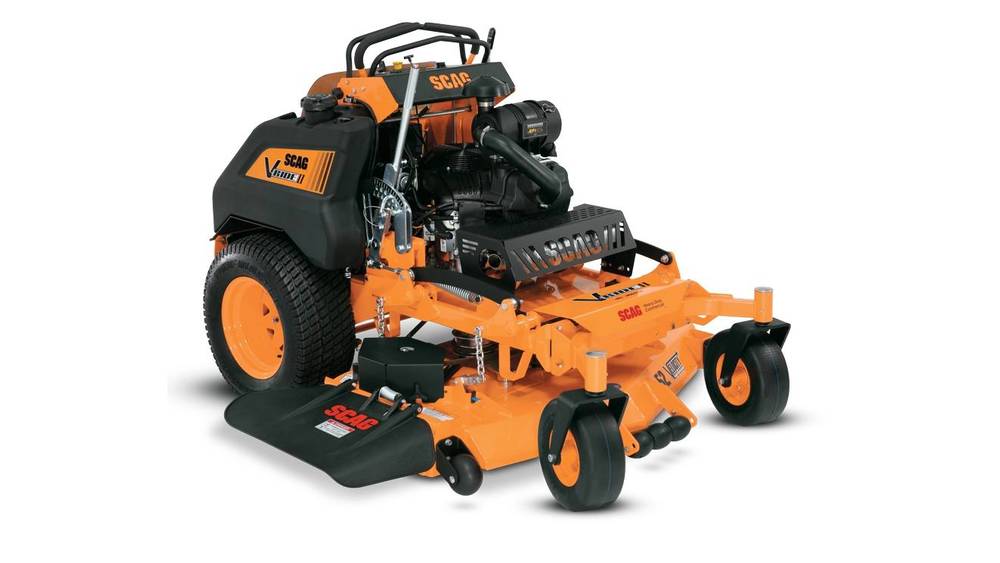

2023 Scag SVRII52V-24FT

52" Velocity Plus Cutter Deck, 24 HP Kawasaki FT Series

FEATURES

The envy of the neighborhood - 48", 52" or 61" Cutting Width: The envy of the industry, Velocity Plus™ decks deliver an amazing quality-of-cut and a wide, even discharge on 48", 52" and 61" widths. An Advantage Cutter Deck is featured on 32" and 36" widths.
Adjustable Operator Platform - Experience an Unmatched, Ultra-Comfortable Ride: The spacious operator platform delivers a smooth ride and reduces operator fatigue. Adjustable suspension spring can be moved forward or backward, with, or without, the spacer plate installed to meet the operator's comfort preference. Extra-large, extra-thick operator comfort cushion ensures comfortable operation, hour after hour.
Cutter-Deck Lift System - Convenient, Spring-Assisted Lever: Cutter deck can be lifted and locked into transport position from the operator's station. Cutting heights are easily set by placing the tethered pin at the desired height.
Ogura PTO Clutch Brake - Strong, Adjustable Clutch for Long Life: Provides excellent starting and stopping power for the cutter deck and an adjustable air gap for long life.
Ease of Maintenance - More Uptime: Easy-to-remove covers, an unrestricted engine compartment, easy-to-reach grease Zerks and many more features make servicing the V-Ride™ II simple, so you can be in the shop less and on the job more.
High-Strength Steel Frame - Solid Design for Years of Dependable Service: Heavy-duty, single-tube, steel main-frame construction delivers superior strength and ensures years of trouble-free service. The front caster-wheel weldments are replaceable.
Powerful and Efficient Engine Options - Huge Power, Up To 40 HP: Choose from Briggs Vanguard and Kawasaki® powerplants; electronic fuel injection (EFI) options are available.
Tiger Eye Advanced Monitoring System - Keep a Real-Time "Eye" on Important System Functions: Depending on the mower model and engine selection, the Tiger Eye™ Advanced Monitoring System monitors a wide variety of systems in real-time, giving you valuable information in just a glance, right from the operator's seat. (Tiger Eye not available on 32" and 36" V-Ride II models.)
Industrial-Grade Hydraulic System - Speeds Up To 10.5 MPH: 48", 52" and 61" models: Dual Hydro-Gear pumps (12 cc) and Parker wheel motors (14 ci) deliver dependable power, with speeds up to 10.5 mph. Pump shock valves ensure reliability and long life. Cooling fans help maintain safe operating temperatures. 32" and 36" models: Dual Hydro-Gear pumps (10 cc) and Parker wheel motors (12 ci) deliver dependable power, with speeds up to 8.5 mph.

SPECIFICATIONS

Description: 52" Velocity Plus™ Cutter Deck, 24 HP Kawasaki® FT Series
Total Fuel Capacity: 5 gallons (32"); 6.75 gallons (36"); 8 gallons (48", 52", and 61")
Drive Tires: 20" x 6.5"-10" (32"); 20" x 8"-10" (36"); 24" x 9.5"-12" (48" and 52"); 24" x 12"-12" (61")
Caster Tires: 11" x 4"-5" (32" and 36"); 13" x 5"-6" (48" and 52"); 13" x 6.5"-6" (61")
Seat: Extra-large comfort cushion
Drive System Type: Dual Pump and Motor
Pumps: Hydro-Gear 10 cc (32" and 36"); Hydro-Gear 12 cc (48", 52", and 61")
Motors: Parker 12 ci (32" and 36"); Parker 14 ci (48", 52" and 61")
Forward Ground Speed: 8.5 mph (32" and 36"); 10.5 mph (48", 52" and 61")
Reverse Ground Speed: 5 mph
Parking Brake: Hand lever
Cutting Widths: 32", 36", 48", 52" and 61"
Type: Advantage (32" and 36"); Velocity Plus™ (48", 52", and 61")
Cutting Height: 1.5" to 4.5" in .25" increments
Deck Lift: Hand lever
Construction: Tri-plate cutter deck constructed of 3 steel plates totaling nearly 1/2" of steel. Reinforcement plates at cutter deck spindles.; 32" model features dual-plate.
Spindles: Cast-iron housing with tapered roller bearings.
Blade Engagement: Ogura GT2.5 (150 ft lb) - (32", 36", 48" and 52"); Ogura GT3.5 (250 ft lb) - (61"); Adjustable air-gap for extended life.

DIMENSIONS

Length: 69.5"
Tracking Width: 48"
Width (chute down): 65.25"
Width (chute in transport position): 53.75"
Height: 47.25"
Weight: 1,000-1,022 lb

ACCESSORIES

2-Bag V-Ride II Spindle Driven Grass Catcher
Fabric Bag Grass Catcher
Hurricane Plus™ Mulch System
Hurricane Mulch System
Mulch Plate
OCDC - Operator-Controlled Discharge Chute
Chrome Wheel Covers
Light Kit
Air Filter Monitor
Blade Buddy
12-Volt Accessory Outlet

Width	Weight	Height	Length
0 Inch	1022 Pounds	47.25 Inch	69.5 Inch

Product form

2023 Scag SVRII52V-24FT 52" Velocity Plus Cutter Deck, 24 HP Kawasaki FT Series FEATURES The envy of the neighborhood -...

SKU: Scag SVRII52V-24FT-SVRII52V-24FT

Out of stock

$9,950.00
