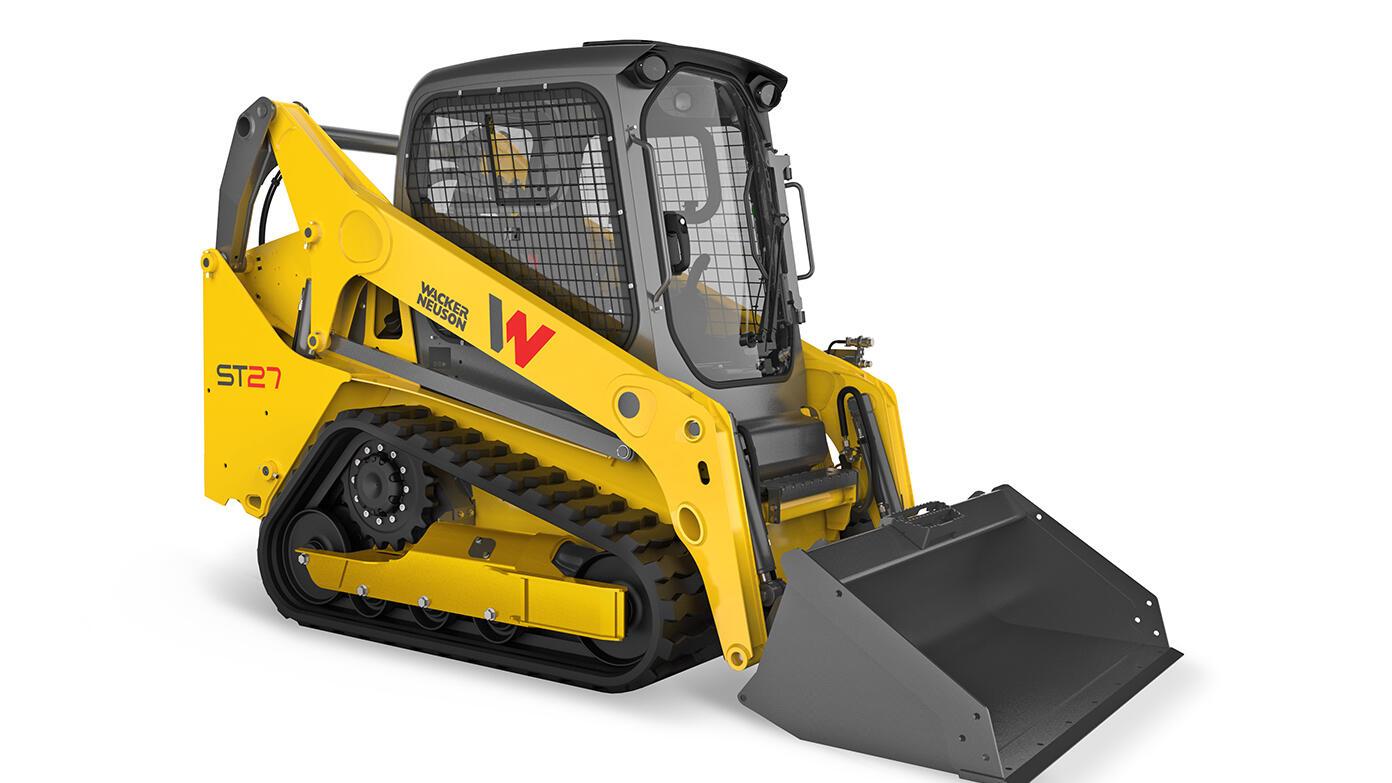

Wacker Neuson ST27

Product Description

Feature	Specification
Engine	4-cyl diesel, turbocharged, model Kohler KDI2504TCR
Gross Power	74.3 hp (55.4 kW) @ 2,600 rpm
Fuel Tank Capacity	27.2 gal (103 L)
Operating Weight	~ 7,350 lb (3,334 kg)
Rated Operating Capacity (35% tip load)	~ 1,889 lb (857 kg)
Tip Load	~ 5,600 lb (2,540 kg)
Breakout Force (Bucket)	5,404 lb (24,039 N)
Hydraulic Flow Rate (Standard Aux)	19.3 gpm (73 L/min) — max 28.8 gpm (109 L/min) high-flow option
Ground Pressure (standard track)	4.4 psi (0.30 bar)
Travel Speed (2-speed drive)	~ 6.4 mph (stage 1) / ~ 9.1 mph (stage 2) (~10.3 / 14.7 km/h)
Dimensions (approx.)	Width: ~60 in (without bucket / standard track)
