TYM TRACTOR

TYM T574

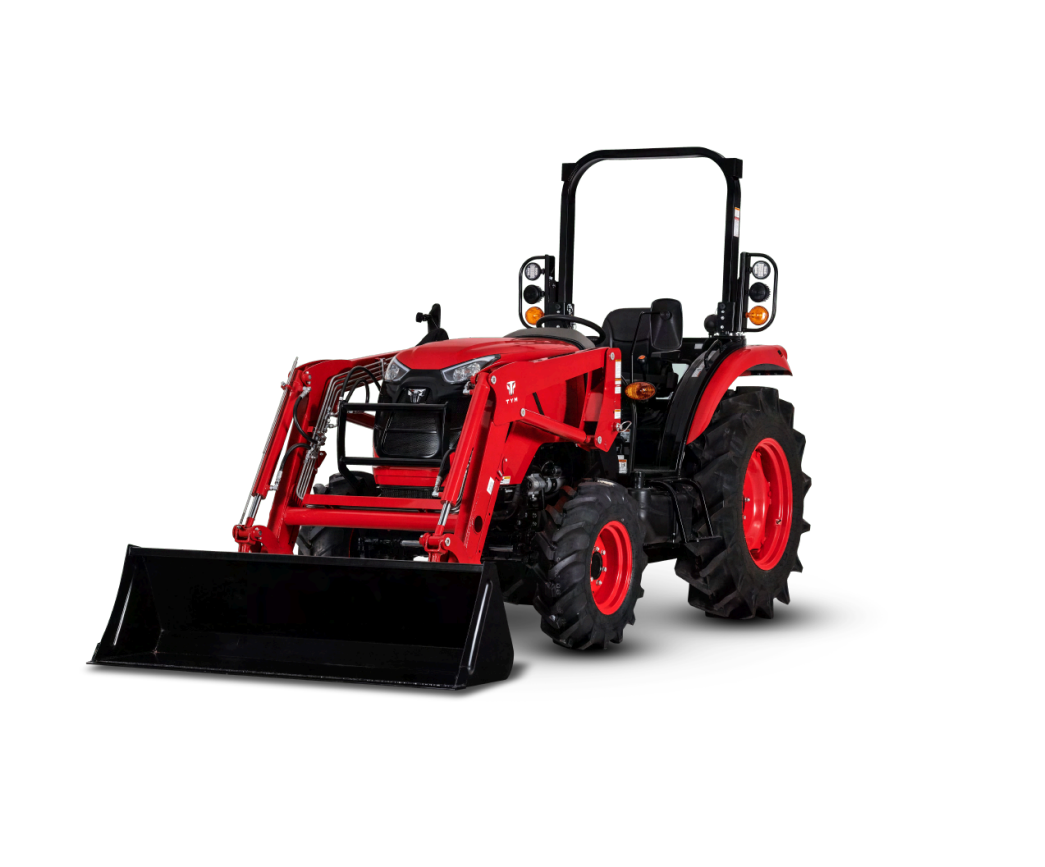

Name: TYM T574
Brand: TYM TRACTOR
SKU: T574

SKU T574

Product Description

Technical Specification

Hydraulic System
Pump type	Dual gear pump	Dual gear pump	Dual gear pump
Implement flow	7.7 gpm \| 29 L/min	7.7 gpm \| 29 L/min	9.5 gpm \| 35.7 L/min
Steering flow	4.3 gpm \| 17.8 L/min	4.3 gpm \| 17.8 L/min	4.6 gpm \| 17.3 L/min
Total flow	11.9 gpm \| 46.8 L/min	11.9 gpm \| 46.8 L/min	14.1 gpm \| 52.9 L/min
Category, 3-point hitch	I	I	I
Hitch lift capacity	3822 lb \| 1733 kg	3822 lb \| 1733 kg	3314 lb \| 1503 kg
Hitch lift capacity at 24 inches behind link ends	3050.6 lb \| 1387 kg	3050.6 lb \| 1387 kg	2945 lb \| 1336 kg
Lift control type	Position/Draft	Position/Draft	Position/Draft
No. of standard remote valves	2	2	2

Capacities
Fuel tank	17.0 gal \| 60 L	17.0 gal \| 60 L	17.0 gal \| 60 L
Coolant	6.9 qt \| 6.5 L	6.9 qt \| 6.5 L	9 qt \| 8.5 L
Crankcase	6.8 qt \| 6.4 L	6.8 qt \| 6.4 L	7.1 qt \| 6.7 L
Transmission/Hydraulics system	9.2 gal \| 34.8 L	9.2 gal \| 34.8 L	9.2 gal \| 34.8 L
Front axle	10.5 qt \| 9.9 L	10.5 qt \| 9.9 L	10.5 qt \| 9.9 L

Dimensions & Weights
Overall length with 3-point hitch	141.3 in. \| 3590 mm	141.3 in. \| 3590 mm	141.3 in. \| 3590 mm
Overall width	63.8 in. \| 1620 mm	63.8 in. \| 1620 mm	63.8 in. \| 1620 mm
Wheelbase	76.2 in. \| 1935 mm	76.2 in. \| 1935 mm	76.2 in. \| 1935 mm
Height to top of ROPS	141.3 in. \| 3590 mm	-	102.1 in. \| 2594 mm
Height to top of cabin	-	98 in. \| 2490 mm	-
Min. ground clearance	13.8 in. \| 350 mm	13.8 in. \| 350 mm	13.8 in. \| 350 mm
Min. turn radius with brakes	121.2 in. \| 3080 mm	121.2 in. \| 3080 mm	131.9 in. \| 3352 mm
Min. turn radius without brakes	131.5 in. \| 3340 mm	131.5 in. \| 3340 mm	150.4 in. \| 3820 mm
Weight with ROPS	3887 lb \| 1763 kg	-	3814 lb \| 1730 kg
Weight with cab	-	4233 lb \| 1920 kg	-
