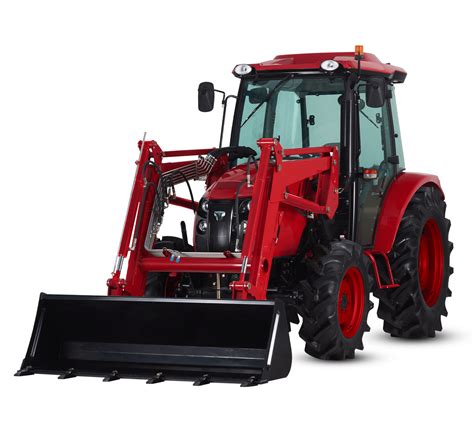

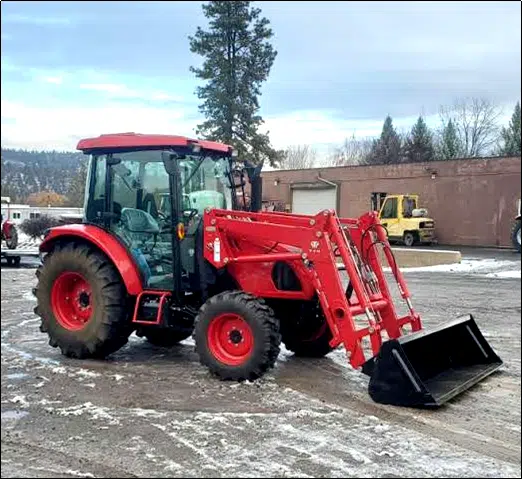

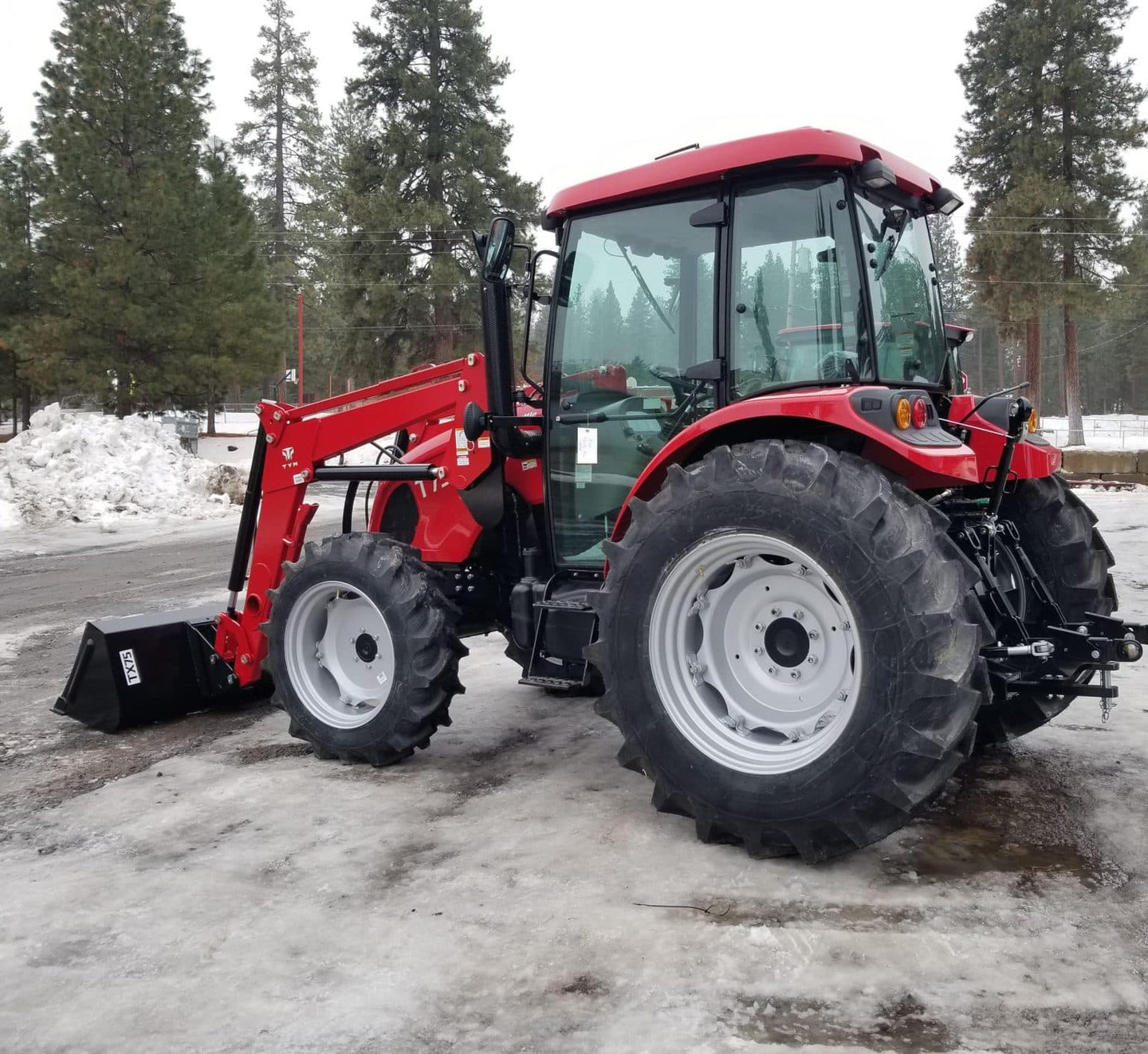

TYM T754PSC Cab Tractor
The TYM Utility tractor provides additional raw work capability with nearly 1,000 additional hitch capacity, and a larger loader bucket. It’s ideal for material handling, land clearing, forestry, construction, and arable farming.
Features:
- TX75 Self Leveling Front-End Loader
- Lift capacity 3325#
- 83″ Quick Attach Bucket
- Power Shuttle Transmission
- 74 hp Diesel 4-cylinder, liquid-cooled Deutz engine
- Category II 3-Pt.Hitch (lift capacity: 5154#)
- Cab with full A/C and Heating
- Hydrostatic power steering with tilt
- External lever to adjust rear implements
- Suspension seat for operator comfort and security
- Digital instrument panel
Specification:
- General
- Drive System: 4 Wheel Drive
- Steering: Hydrostatic
- Clutch: Wet Multi Plate
- Brake: Wet Disc
- Gross Engine Power: 74 hp | 55.4 kW
- Engine
- Manufacturer: Deutz TCD2.9L4
- Type: Turbo
- Gross Engine Power: 74 hp | 55.4 kW
- PTO Power: 64.1 hp | 47.8 kW
- Rated Engine Speed: 2200 rpm
- Number of Cylinders: 4
- Displacement: 177 cu. in.
- Air Cleaner: Dual Dry
- Alternator: 12V, 95A
- Fuel System: CRDI
- Powertrain
- Transmission Type: Power Shuttle
- No. of Speeds: F16xR16 (creep interlock)
- Max. Traveling Speed: 24.1 mph
- Brakes: Wet Disc
- Steering: Hydrostatic
- Clutch: Wet Multi Plate
- Hydraulic System
- Pump Type: Dual Gear Pump
- Implement Flow: 10.3 gpm
- Steering Flow: 5.8 gpm
- Total Flow: 16.1 gpm
- 3-Point Hitch Category: II
- Hitch Lift Capacity: 5154 lb
- Hitch Lift Capacity at 24" Behind Link Ends: 3481 lb
- Lift Control Type: Position/Draft/Mech
- No. of Standard Remote Valves: 2
- PTO
- PTO Type: Independent
- PTO Control: Electric/Hydro
- PTO Rear: 540/750, 540/1000 (Optional) rpm
- Capacities
- Fuel Tank: 23.8 gal
- Coolant: 10.6 qt
- Crankcase: 8.5 qt
- Transmission/Hydraulics System: 18 qt
- Front Axle: 4.3 gal
- Standard Tires
- R1 Agricultural
- Front: FSTR 280/85R24 TL (11R24)
- Rear: FSTR 420/85R30 TL (16.9R30)
- R4 Industrial
- Front: Trac Chief 15-19.5 NHS TL 6PR
- Rear: Xtra Grip 18.4-24 NHS TL 8PR
- Upgrades for Series 6, T754
- R1 Agricultural Tires
- Front: FSTR 280/85R24 TL (11R24)
- Rear: FSTR 420/85R30 TL (16.9R30)
- R4 Industrial Tires
- Front: Trac Chief 15-19.5 NHS TL 6PR
- Rear: Xtra Grip 18.4-24 NHS TL 8PR
- Dimensions & Weights
- Overall Length (with 3-Point Hitch): 157.5 in.
- Overall Width: 76.4 in.
- Wheelbase: 86.1 in.
- Height to Top of ROPS: 103.3 in.
- Minimum Ground Clearance: 18.3 in.
- Minimum Turn Radius (without Brakes): 141.3 in.
- Minimum Turn Radius (with Brakes): 145.7 in.
- Alternate Minimum Turn Radius (without Brakes): 162.8 in.
- Weight (with Cab): 6316 lb
| Width | Weight | Height | Length |
|---|---|---|---|
| 0 Inch | 6315 Pounds | 0 Inch | 0 Inch |
