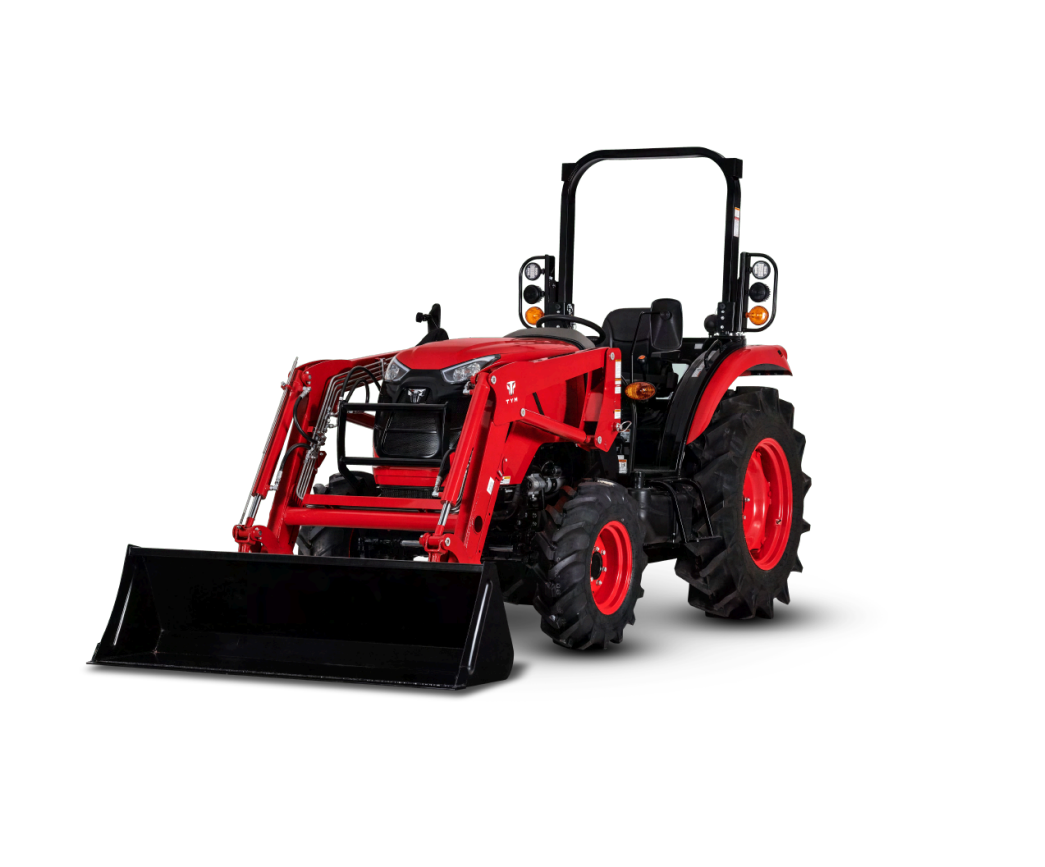

T574C TYM Tractor

Technical Specification

Engine
Tractors Model	T574	T574C	T554
Engine manufacturer	TYM T2300T2	TYM T2300T2	Yanmar 4TNV86CT
Type	Turbo Charger	Turbo Charger	Turbo Charger
Engine power	55 hp \| 41 kW	55 hp \| 41 kW	55.9 hp \| 41.1 kW
PTO power	44.7 hp \| 32.9 kW	44.7 hp \| 32,9 kW	45.6 hp \| 33.5 kW
Rated engine speed	2600 rpm	2600 rpm	2800 rpm
No. of cylinders	4	4	4
Displacement	139.5 cu. in. \| 2286 cc	139.5 cu. in. \| 2286 cc	127.6 cu. in. \| 2091 cc
Air cleaner	Single dry	Single dry	Dual dry
Alternator	12V, 70A	12V, 70A	12V, 70A
Fuel system	IDI	IDI	CRDI

Hydraulic System
Pump type	Dual gear pump	Dual gear pump	Dual gear pump
Implement flow	7.7 gpm \| 29 L/min	7.7 gpm \| 29 L/min	9.5 gpm \| 35.7 L/min
Steering flow	4.3 gpm \| 17.8 L/min	4.3 gpm \| 17.8 L/min	4.6 gpm \| 17.3 L/min
Total flow	11.9 gpm \| 46.8 L/min	11.9 gpm \| 46.8 L/min	14.1 gpm \| 52.9 L/min
Category, 3-point hitch	I	I	I
Hitch lift capacity	3822 lb \| 1733 kg	3822 lb \| 1733 kg	3314 lb \| 1503 kg
Hitch lift capacity at 24 inches behind link ends	3050.6 lb \| 1387 kg	3050.6 lb \| 1387 kg	2945 lb \| 1336 kg
Lift control type	Position/Draft	Position/Draft	Position/Draft
No. of standard remote valves	2	2	2

Powertrain
Transmission type	Synchro-shuttle	Synchro-shuttle	Synchro-Shuttle
No. of speeds	F8 x R8	F8 x R8	F16 x R16
Max. traveling speed	18.6 mph \| 30.0 km/h	18.6 mph \| 30.0 km/h	18.4 mph \| 29.7 km/h
Brakes	Wet disc	Wet disc	Wet disc
Steering	Hydrostatic	Hydrostatic	Hydrostatic
Clutch	Dry single plate	Dry single plate	Dry single plate

PTO
PTO type	Independent	Independent	Independent
PTO control	Electric/Hydro	Electric/Hydro	Electric/Hydro
PTO rear	540 rpm	540 rpm	540 rpm

Capacities
Fuel tank	17.0 gal \| 60 L	17.0 gal \| 60 L	17.0 gal \| 60 L
Coolant	6.9 qt \| 6.5 L	6.9 qt \| 6.5 L	9 qt \| 8.5 L
Crankcase	6.8 qt \| 6.4 L	6.8 qt \| 6.4 L	7.1 qt \| 6.7 L
Transmission/Hydraulics system	9.2 gal \| 34.8 L	9.2 gal \| 34.8 L	9.2 gal \| 34.8 L
Front axle	10.5 qt \| 9.9 L	10.5 qt \| 9.9 L	10.5 qt \| 9.9 L

Dimensions & Weights
Overall length with 3-point hitch	141.3 in. \| 3590 mm	141.3 in. \| 3590 mm	141.3 in. \| 3590 mm
Overall width	63.8 in. \| 1620 mm	63.8 in. \| 1620 mm	63.8 in. \| 1620 mm
Wheelbase	76.2 in. \| 1935 mm	76.2 in. \| 1935 mm	76.2 in. \| 1935 mm
Height to top of ROPS	141.3 in. \| 3590 mm	-	102.1 in. \| 2594 mm
Height to top of cabin	-	98 in. \| 2490 mm	-
Min. ground clearance	13.8 in. \| 350 mm	13.8 in. \| 350 mm	13.8 in. \| 350 mm
Min. turn radius with brakes	121.2 in. \| 3080 mm	121.2 in. \| 3080 mm	131.9 in. \| 3352 mm
Min. turn radius without brakes	131.5 in. \| 3340 mm	131.5 in. \| 3340 mm	150.4 in. \| 3820 mm
Weight with ROPS	3887 lb \| 1763 kg	-	3814 lb \| 1730 kg
Weight with cab	-	4233 lb \| 1920 kg	-

Standard Tires
R1 Agricultural - Front	Farm Specialist 9.5-16 NHS TL 6PR	Farm Specialist 9.5-16 NHS TL 6PR	Farm Specialist 9.5-16 NHS TL 6PR
R1 Agricultural - Rear	Farm Specialist 13.6-26 NHS TL 6PR	Farm Specialist 13.6-26 NHS TL 6PR	Farm Specialist 13.6-26 NHS TL 6PR
R3 Turf - Front	Multi-Trac CS 27x10.50-15 NHS TL 4PR	Multi-Trac CS 27x10.50-15 NHS TL 4PR	Multi-Trac CS 27x10.50-15 NHS TL 4PR
R3 Turf - Rear	Multi-Trac CS 44x18.00-20 NHS TL 4PR	Multi-Trac CS 44x18.00-20 NHS TL 4PR	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R4 Industrial - Front	Trac Chief 12-16.5 NHS TL 6PR	Trac Chief 12-16.5 NHS TL 6PR	Trac Chief 12-16.5 NHS TL 6PR
R4 Industrial - Rear	Xtra Grip 17.5Lx24 NHS TL 6PR	Xtra Grip 17.5Lx24 NHS TL 6PR	Xtra Grip 17.5L-24 NHS TL 6PR

Download

TYM TRACTOR

TYM T574

SKU T574

Regular price: $31,250.00

T574C TYM Tractor

Technical Specification

Engine
Tractors Model	T574	T574C	T554
Engine manufacturer	TYM T2300T2	TYM T2300T2	Yanmar 4TNV86CT
Type	Turbo Charger	Turbo Charger	Turbo Charger
Engine power	55 hp \| 41 kW	55 hp \| 41 kW	55.9 hp \| 41.1 kW
PTO power	44.7 hp \| 32.9 kW	44.7 hp \| 32,9 kW	45.6 hp \| 33.5 kW
Rated engine speed	2600 rpm	2600 rpm	2800 rpm
No. of cylinders	4	4	4
Displacement	139.5 cu. in. \| 2286 cc	139.5 cu. in. \| 2286 cc	127.6 cu. in. \| 2091 cc
Air cleaner	Single dry	Single dry	Dual dry
Alternator	12V, 70A	12V, 70A	12V, 70A
Fuel system	IDI	IDI	CRDI

Hydraulic System
Pump type	Dual gear pump	Dual gear pump	Dual gear pump
Implement flow	7.7 gpm \| 29 L/min	7.7 gpm \| 29 L/min	9.5 gpm \| 35.7 L/min
Steering flow	4.3 gpm \| 17.8 L/min	4.3 gpm \| 17.8 L/min	4.6 gpm \| 17.3 L/min
Total flow	11.9 gpm \| 46.8 L/min	11.9 gpm \| 46.8 L/min	14.1 gpm \| 52.9 L/min
Category, 3-point hitch	I	I	I
Hitch lift capacity	3822 lb \| 1733 kg	3822 lb \| 1733 kg	3314 lb \| 1503 kg
Hitch lift capacity at 24 inches behind link ends	3050.6 lb \| 1387 kg	3050.6 lb \| 1387 kg	2945 lb \| 1336 kg
Lift control type	Position/Draft	Position/Draft	Position/Draft
No. of standard remote valves	2	2	2

Powertrain
Transmission type	Synchro-shuttle	Synchro-shuttle	Synchro-Shuttle
No. of speeds	F8 x R8	F8 x R8	F16 x R16
Max. traveling speed	18.6 mph \| 30.0 km/h	18.6 mph \| 30.0 km/h	18.4 mph \| 29.7 km/h
Brakes	Wet disc	Wet disc	Wet disc
Steering	Hydrostatic	Hydrostatic	Hydrostatic
Clutch	Dry single plate	Dry single plate	Dry single plate

PTO
PTO type	Independent	Independent	Independent
PTO control	Electric/Hydro	Electric/Hydro	Electric/Hydro
PTO rear	540 rpm	540 rpm	540 rpm

Capacities
Fuel tank	17.0 gal \| 60 L	17.0 gal \| 60 L	17.0 gal \| 60 L
Coolant	6.9 qt \| 6.5 L	6.9 qt \| 6.5 L	9 qt \| 8.5 L
Crankcase	6.8 qt \| 6.4 L	6.8 qt \| 6.4 L	7.1 qt \| 6.7 L
Transmission/Hydraulics system	9.2 gal \| 34.8 L	9.2 gal \| 34.8 L	9.2 gal \| 34.8 L
Front axle	10.5 qt \| 9.9 L	10.5 qt \| 9.9 L	10.5 qt \| 9.9 L

Dimensions & Weights
Overall length with 3-point hitch	141.3 in. \| 3590 mm	141.3 in. \| 3590 mm	141.3 in. \| 3590 mm
Overall width	63.8 in. \| 1620 mm	63.8 in. \| 1620 mm	63.8 in. \| 1620 mm
Wheelbase	76.2 in. \| 1935 mm	76.2 in. \| 1935 mm	76.2 in. \| 1935 mm
Height to top of ROPS	141.3 in. \| 3590 mm	-	102.1 in. \| 2594 mm
Height to top of cabin	-	98 in. \| 2490 mm	-
Min. ground clearance	13.8 in. \| 350 mm	13.8 in. \| 350 mm	13.8 in. \| 350 mm
Min. turn radius with brakes	121.2 in. \| 3080 mm	121.2 in. \| 3080 mm	131.9 in. \| 3352 mm
Min. turn radius without brakes	131.5 in. \| 3340 mm	131.5 in. \| 3340 mm	150.4 in. \| 3820 mm
Weight with ROPS	3887 lb \| 1763 kg	-	3814 lb \| 1730 kg
Weight with cab	-	4233 lb \| 1920 kg	-

Standard Tires
R1 Agricultural - Front	Farm Specialist 9.5-16 NHS TL 6PR	Farm Specialist 9.5-16 NHS TL 6PR	Farm Specialist 9.5-16 NHS TL 6PR
R1 Agricultural - Rear	Farm Specialist 13.6-26 NHS TL 6PR	Farm Specialist 13.6-26 NHS TL 6PR	Farm Specialist 13.6-26 NHS TL 6PR
R3 Turf - Front	Multi-Trac CS 27x10.50-15 NHS TL 4PR	Multi-Trac CS 27x10.50-15 NHS TL 4PR	Multi-Trac CS 27x10.50-15 NHS TL 4PR
R3 Turf - Rear	Multi-Trac CS 44x18.00-20 NHS TL 4PR	Multi-Trac CS 44x18.00-20 NHS TL 4PR	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R4 Industrial - Front	Trac Chief 12-16.5 NHS TL 6PR	Trac Chief 12-16.5 NHS TL 6PR	Trac Chief 12-16.5 NHS TL 6PR
R4 Industrial - Rear	Xtra Grip 17.5Lx24 NHS TL 6PR	Xtra Grip 17.5Lx24 NHS TL 6PR	Xtra Grip 17.5L-24 NHS TL 6PR

Download

Technical Brochure

Regular price: $31,250.00

Quantity

∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers ∼ Workshop Approved ∼ Your Build Deserves Better ∼ Trusted by Mechanics & Explorers

Product Description

T574C TYM Tractor

Technical Specification

Engine
Tractors Model	T574	T574C	T554
Engine manufacturer	TYM T2300T2	TYM T2300T2	Yanmar 4TNV86CT
Type	Turbo Charger	Turbo Charger	Turbo Charger
Engine power	55 hp \| 41 kW	55 hp \| 41 kW	55.9 hp \| 41.1 kW
PTO power	44.7 hp \| 32.9 kW	44.7 hp \| 32,9 kW	45.6 hp \| 33.5 kW
Rated engine speed	2600 rpm	2600 rpm	2800 rpm
No. of cylinders	4	4	4
Displacement	139.5 cu. in. \| 2286 cc	139.5 cu. in. \| 2286 cc	127.6 cu. in. \| 2091 cc
Air cleaner	Single dry	Single dry	Dual dry
Alternator	12V, 70A	12V, 70A	12V, 70A
Fuel system	IDI	IDI	CRDI

Hydraulic System
Pump type	Dual gear pump	Dual gear pump	Dual gear pump
Implement flow	7.7 gpm \| 29 L/min	7.7 gpm \| 29 L/min	9.5 gpm \| 35.7 L/min
Steering flow	4.3 gpm \| 17.8 L/min	4.3 gpm \| 17.8 L/min	4.6 gpm \| 17.3 L/min
Total flow	11.9 gpm \| 46.8 L/min	11.9 gpm \| 46.8 L/min	14.1 gpm \| 52.9 L/min
Category, 3-point hitch	I	I	I
Hitch lift capacity	3822 lb \| 1733 kg	3822 lb \| 1733 kg	3314 lb \| 1503 kg
Hitch lift capacity at 24 inches behind link ends	3050.6 lb \| 1387 kg	3050.6 lb \| 1387 kg	2945 lb \| 1336 kg
Lift control type	Position/Draft	Position/Draft	Position/Draft
No. of standard remote valves	2	2	2

Powertrain
Transmission type	Synchro-shuttle	Synchro-shuttle	Synchro-Shuttle
No. of speeds	F8 x R8	F8 x R8	F16 x R16
Max. traveling speed	18.6 mph \| 30.0 km/h	18.6 mph \| 30.0 km/h	18.4 mph \| 29.7 km/h
Brakes	Wet disc	Wet disc	Wet disc
Steering	Hydrostatic	Hydrostatic	Hydrostatic
Clutch	Dry single plate	Dry single plate	Dry single plate

PTO
PTO type	Independent	Independent	Independent
PTO control	Electric/Hydro	Electric/Hydro	Electric/Hydro
PTO rear	540 rpm	540 rpm	540 rpm

Capacities
Fuel tank	17.0 gal \| 60 L	17.0 gal \| 60 L	17.0 gal \| 60 L
Coolant	6.9 qt \| 6.5 L	6.9 qt \| 6.5 L	9 qt \| 8.5 L
Crankcase	6.8 qt \| 6.4 L	6.8 qt \| 6.4 L	7.1 qt \| 6.7 L
Transmission/Hydraulics system	9.2 gal \| 34.8 L	9.2 gal \| 34.8 L	9.2 gal \| 34.8 L
Front axle	10.5 qt \| 9.9 L	10.5 qt \| 9.9 L	10.5 qt \| 9.9 L

Dimensions & Weights
Overall length with 3-point hitch	141.3 in. \| 3590 mm	141.3 in. \| 3590 mm	141.3 in. \| 3590 mm
Overall width	63.8 in. \| 1620 mm	63.8 in. \| 1620 mm	63.8 in. \| 1620 mm
Wheelbase	76.2 in. \| 1935 mm	76.2 in. \| 1935 mm	76.2 in. \| 1935 mm
Height to top of ROPS	141.3 in. \| 3590 mm	-	102.1 in. \| 2594 mm
Height to top of cabin	-	98 in. \| 2490 mm	-
Min. ground clearance	13.8 in. \| 350 mm	13.8 in. \| 350 mm	13.8 in. \| 350 mm
Min. turn radius with brakes	121.2 in. \| 3080 mm	121.2 in. \| 3080 mm	131.9 in. \| 3352 mm
Min. turn radius without brakes	131.5 in. \| 3340 mm	131.5 in. \| 3340 mm	150.4 in. \| 3820 mm
Weight with ROPS	3887 lb \| 1763 kg	-	3814 lb \| 1730 kg
Weight with cab	-	4233 lb \| 1920 kg	-

Standard Tires
R1 Agricultural - Front	Farm Specialist 9.5-16 NHS TL 6PR	Farm Specialist 9.5-16 NHS TL 6PR	Farm Specialist 9.5-16 NHS TL 6PR
R1 Agricultural - Rear	Farm Specialist 13.6-26 NHS TL 6PR	Farm Specialist 13.6-26 NHS TL 6PR	Farm Specialist 13.6-26 NHS TL 6PR
R3 Turf - Front	Multi-Trac CS 27x10.50-15 NHS TL 4PR	Multi-Trac CS 27x10.50-15 NHS TL 4PR	Multi-Trac CS 27x10.50-15 NHS TL 4PR
R3 Turf - Rear	Multi-Trac CS 44x18.00-20 NHS TL 4PR	Multi-Trac CS 44x18.00-20 NHS TL 4PR	Multi-Trac CS 44x18.00-20 NHS TL 4PR
R4 Industrial - Front	Trac Chief 12-16.5 NHS TL 6PR	Trac Chief 12-16.5 NHS TL 6PR	Trac Chief 12-16.5 NHS TL 6PR
R4 Industrial - Rear	Xtra Grip 17.5Lx24 NHS TL 6PR	Xtra Grip 17.5Lx24 NHS TL 6PR	Xtra Grip 17.5L-24 NHS TL 6PR
