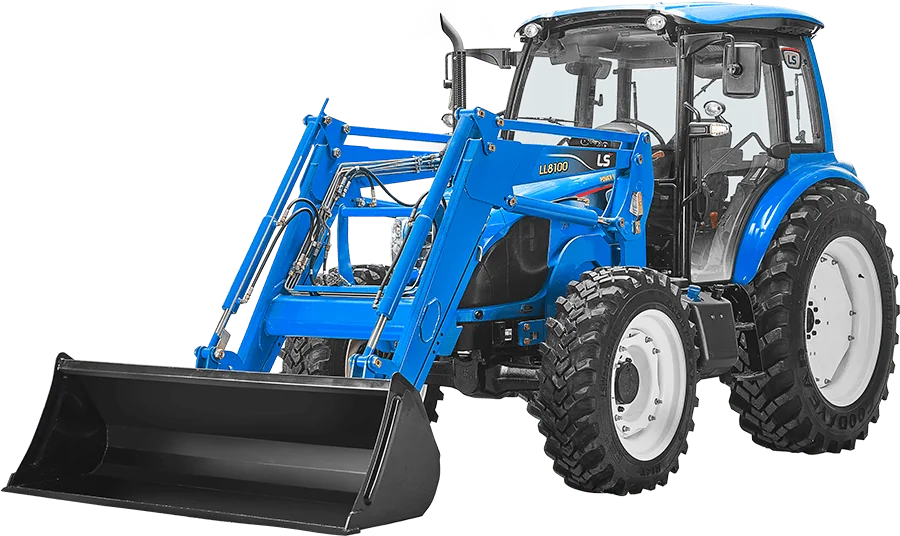

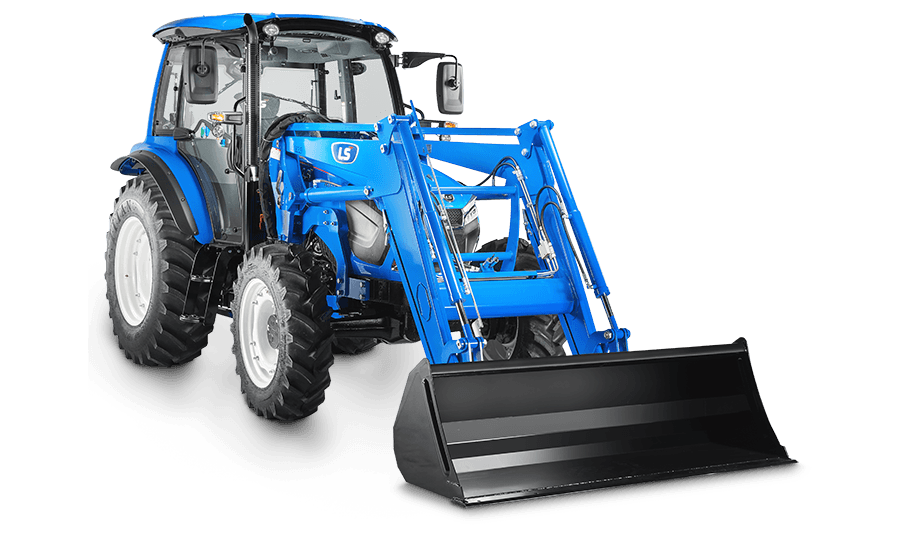

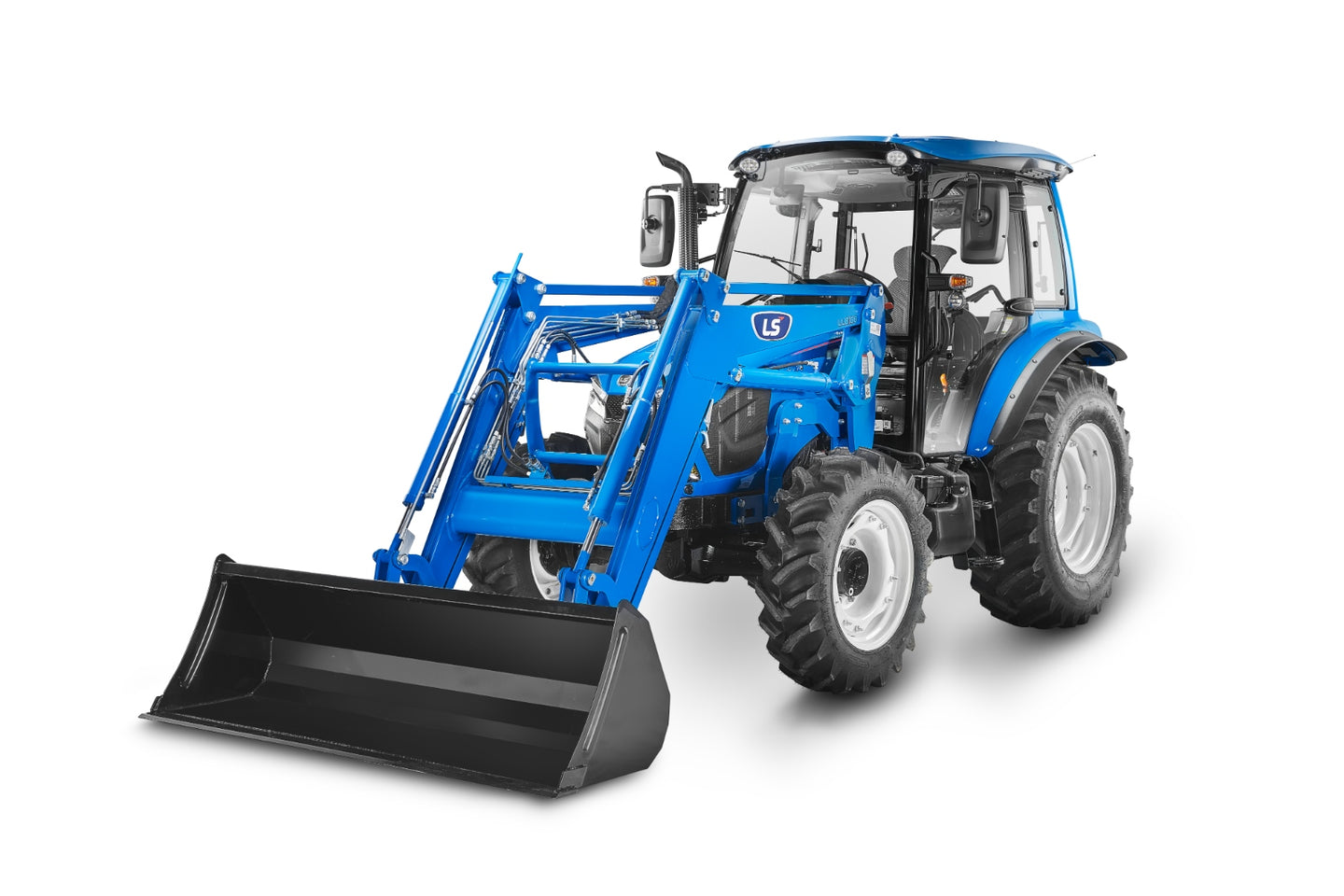

LS XP7101

Product Description

Feature	Specification
Engine	4-cyl CRDI water-cooled diesel (F5G, Tier 4)
Gross Engine Power	100.6 hp / 75 kW
PTO Power	~85.5 hp
Rated RPM	2,200 rpm
Displacement	206.7 cu in / 3.4 L
Fuel Tank Capacity	~30.4 gal (115 L)
Transmission	Power Shuttle — 24 F × 24 R (some variants 40×40 or 32×32)
Drive Type	4WD with power steering
Brakes	Wet disc brakes
PTO	Independent rear PTO — 540/750/1000 rpm
Hydraulic Flow (Total)	~22.2 gpm total / 15.7 gpm implement / 6.5 gpm steering
3-Point Hitch	Category II, Position/Draft Control
Hitch Lift Capacity	8,378 lb (~3,800 kg)
Loader Lift Capacity	~5,139 lb (pivot pin)
Wheelbase	~90 in / 228 cm
Dimensions (est.)	L: ~152.2 in; W: ~78.7 in; H (cab): ~105.4 in
Weight (approx.)	~7,714 – 7,985 lb (~3,500 kg)
Tires (Standard)	Front: 340/70R28 • Rear: 460/75R38
Standard Features	Spacious cab with suspension seat, instructor seat, interior power source, independent PTO, multiple remote valves
