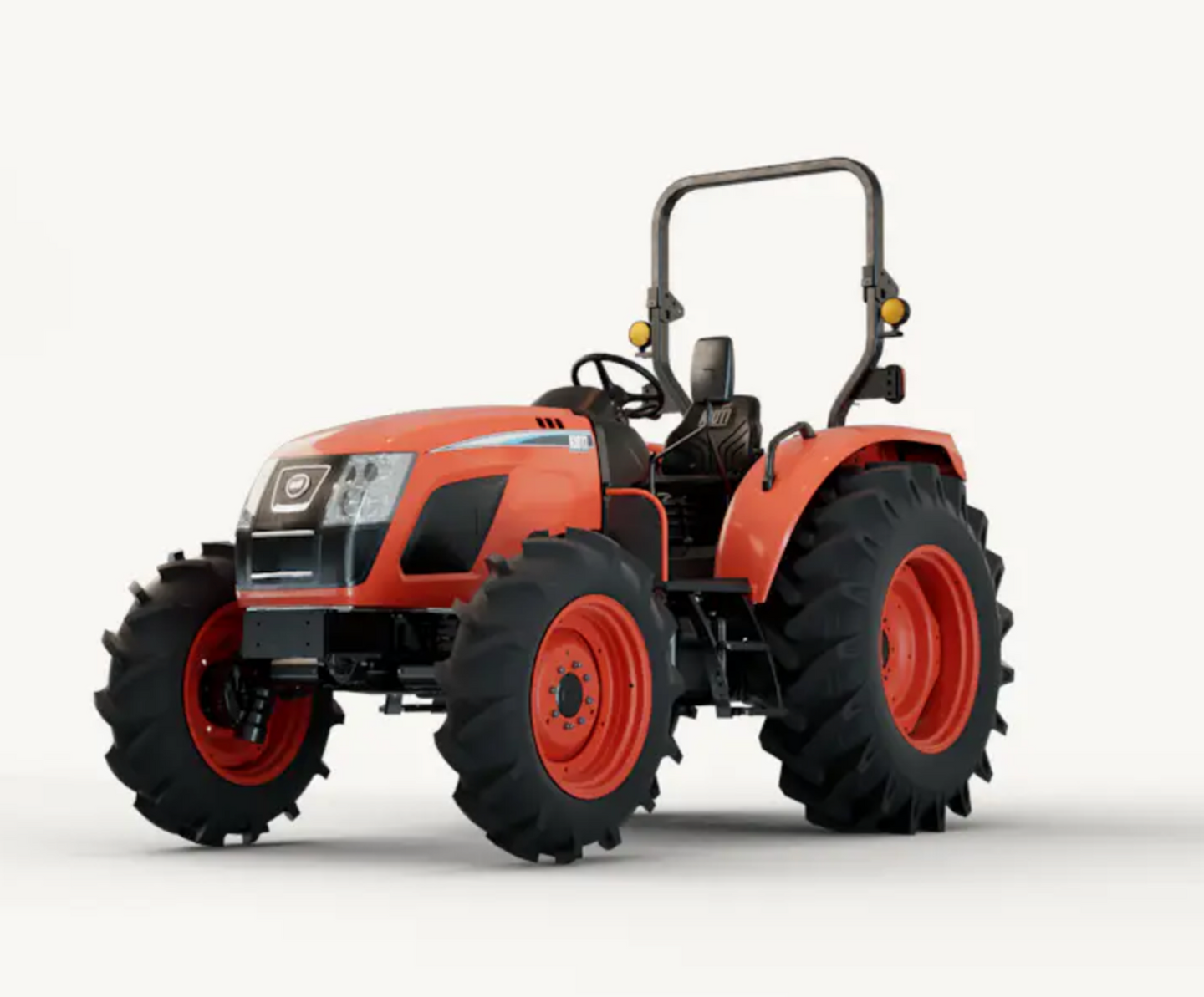

Kioti RX7320

Product Description

Feature	Specification
Engine	4-cylinder diesel, model 4F243T (CRDI, turbocharged)
Gross Power	73 HP (54.4 kW)
PTO Power	63 HP (47 kW)
Transmission	12F / 12R Synchro-Shuttle / Power Shuttle
Max Travel Speed	~ 23.5 mph (37.9 km/h)
Hydraulics (Pump Flow)	19.2 gpm (≈ 72.8 L/min) gear pump
3-Point Hitch Lift Capacity	~ 3,898 lb (1,768 kg) at 24″ behind hitch – Category II, position/draft/mixed control
Fuel Tank Capacity	22.5 gal (85 L) standard; some listings 25 gal (95 L) for cab versions
Drive Type	4WD with rear differential lock & wet disc brakes
Dimensions (with Ag tires)	Length w/ 3-point hitch: 146.3 in (3,715 mm); Width: 77.2 in (1,960 mm); Ground clearance: 17.3 in (440 mm)
Weight (approx.)	~ 5,600 lb (2,540 kg) (varies with configuration)
Cab / Comfort (standard on cab version)	Deluxe cab (on cab version) with climate control, synchro-shift, joystick loader control, independent rear PTO, wet disc brakes, power steering, rear diff-lock.
