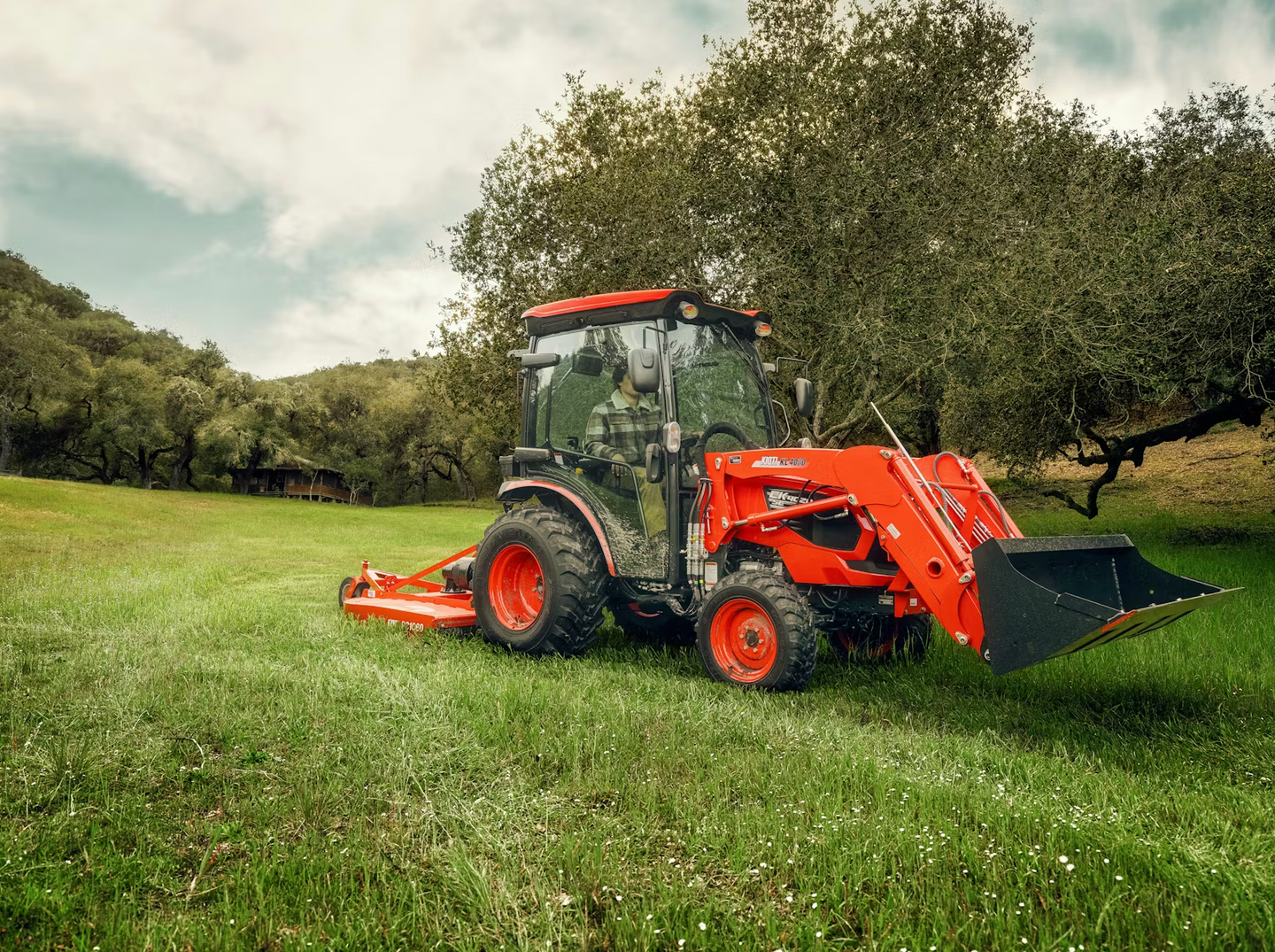

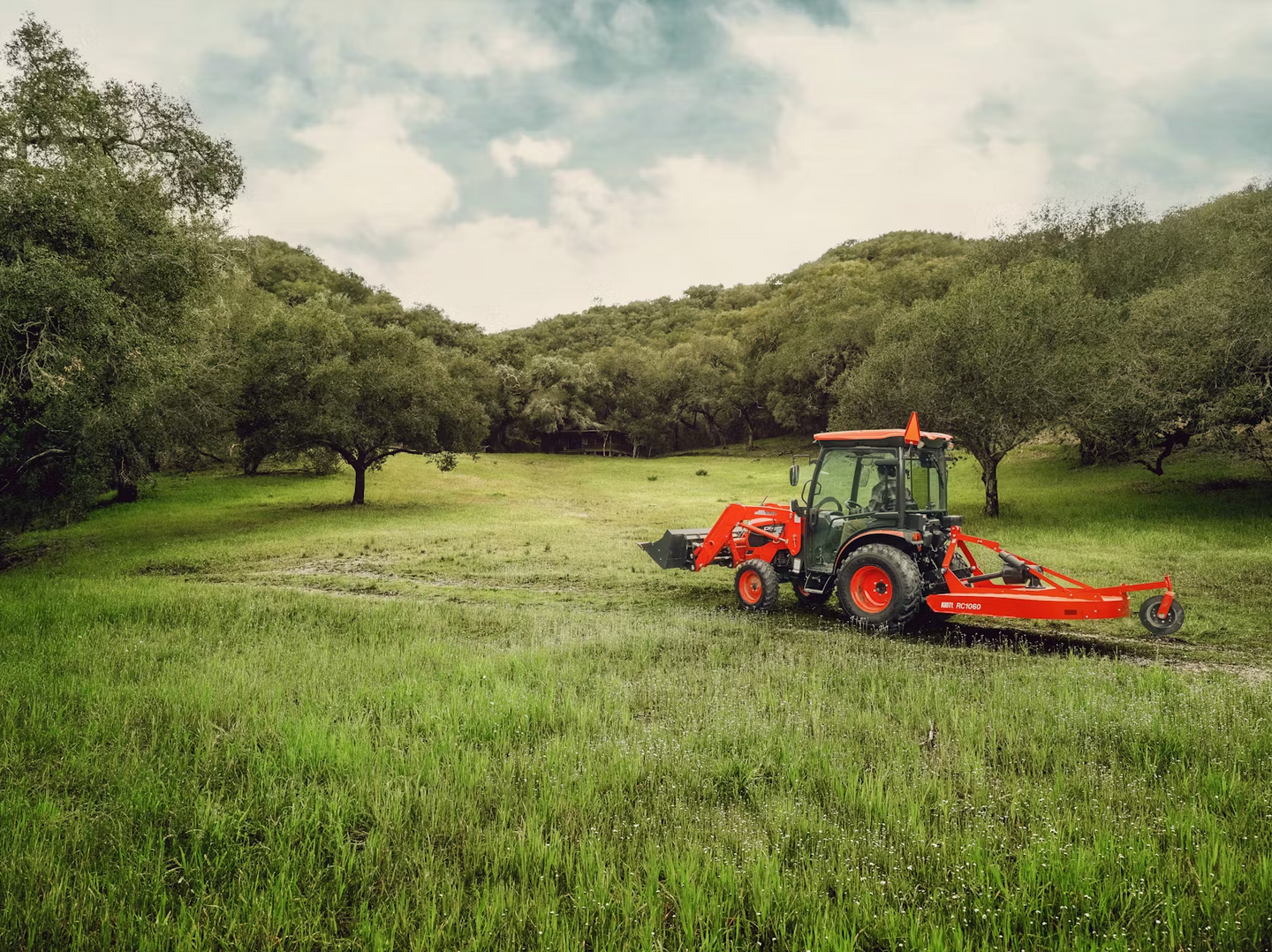

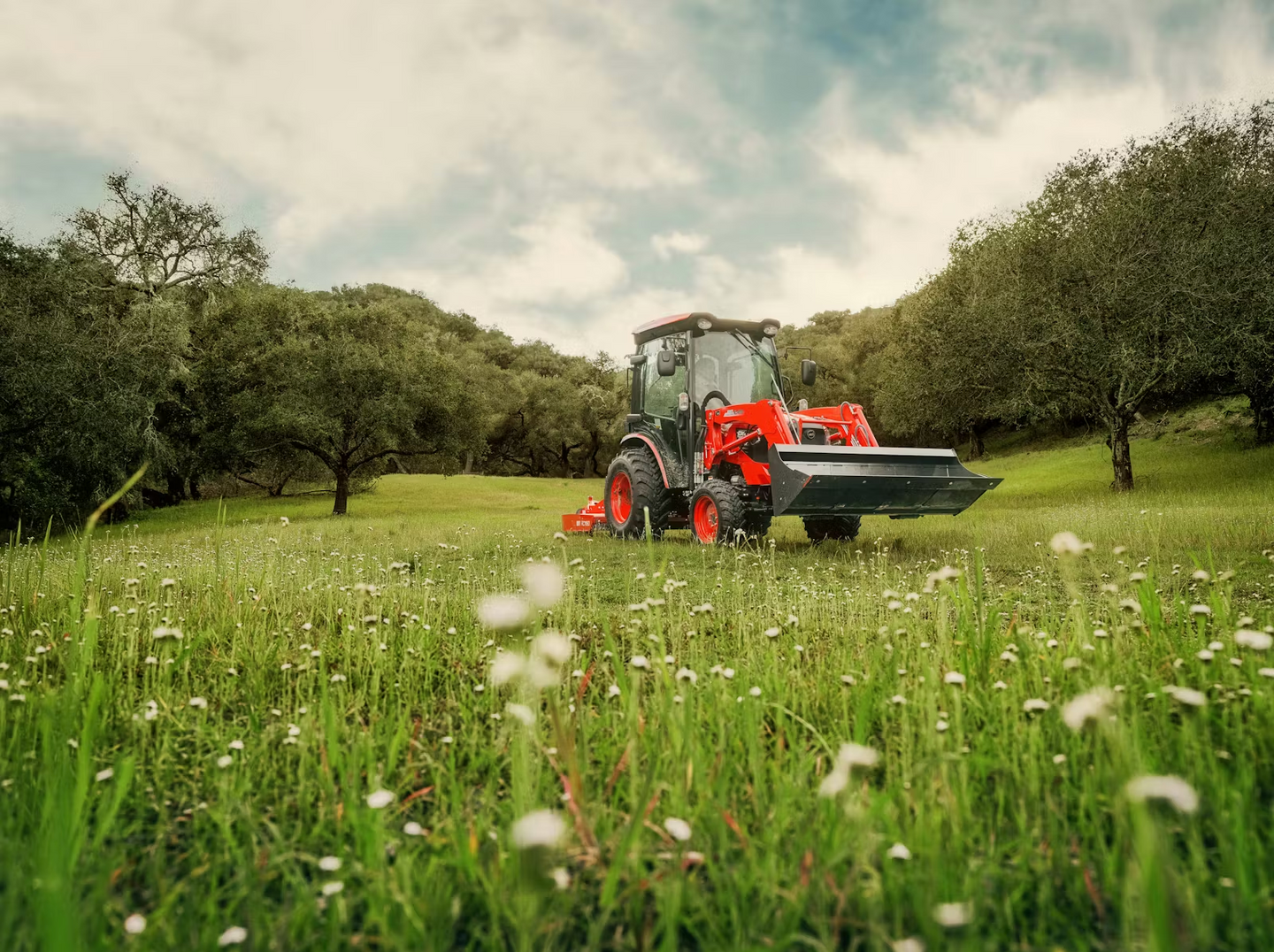

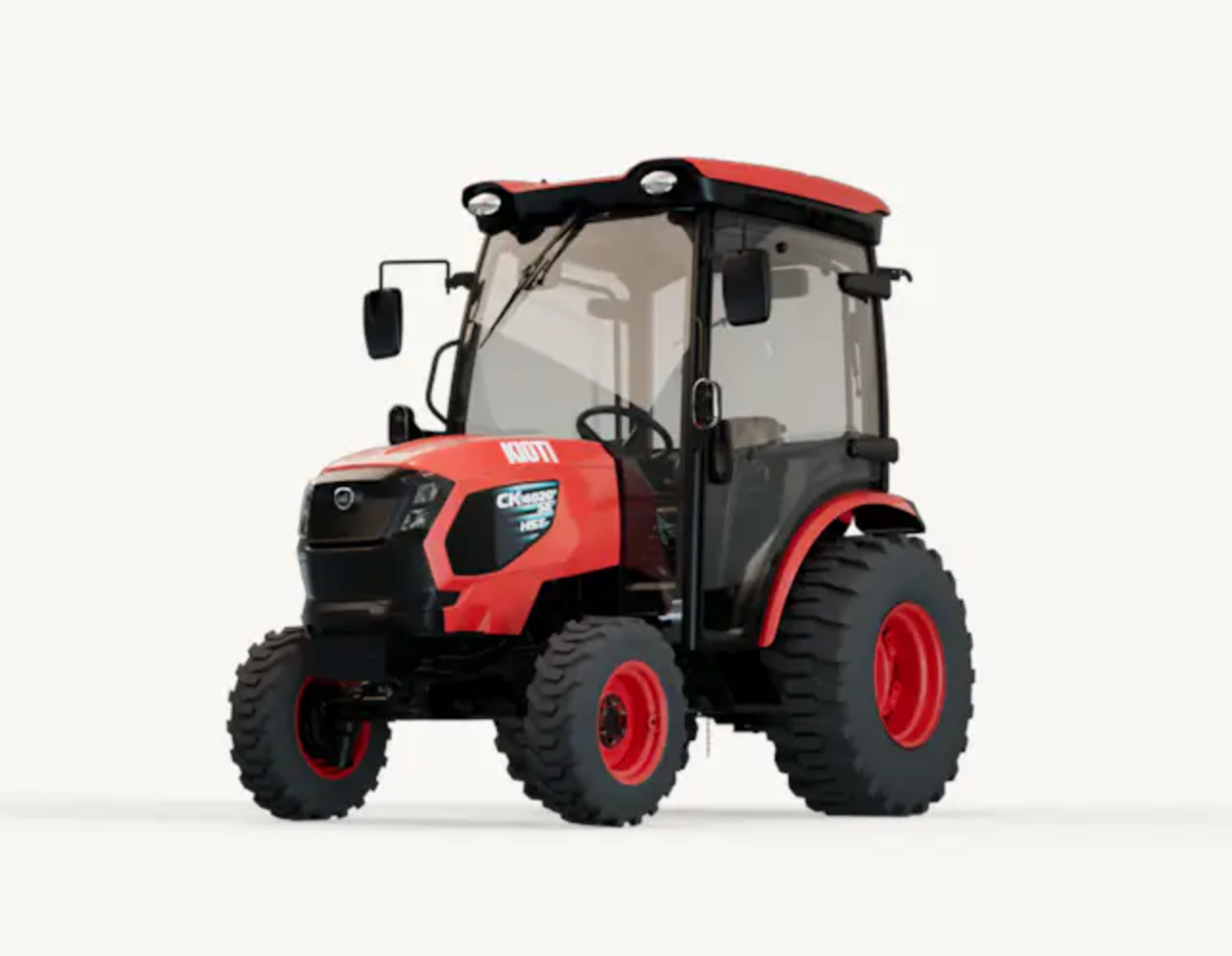

Kioti CK4020SEH Cab

Product Description

Feature	Specification
Engine	3‑cyl diesel, Kioti 3H‑TM4B
Gross Power	39.60 hp / 29.50 kW
Displacement	111.40 cu in (1,826 cc)
Rated RPM	2,600 rpm
Fuel Capacity	9.0 gallons (34 L)
Transmission	Hydrostatic (HST), 3 ranges
Travel Speed	Forward: ~14.88 mph / Reverse: ~16.76 mph
PTO	Independent rear PTO, 540 rpm; ~30.90 hp at rated engine speed
Hydraulic Pump Flow	11.30 gpm (42.90 L/min), gear pump
3‑Point Hitch Lift Capacity	1,631 lb (740 kg), Category I, position control
Ground Clearance	13.40 in (340 mm)
Dimensions (L × W × H)	120.90″ × 54.50″ × 92.52″
Weight	~3,397 lb (1,325 kg)
Cab Features	Full‑size cab with heat & A/C, tilt steering, single‑lever joystick, 3‑point control lever, telescoping rear hitch, premium seat, rubber floor mat
